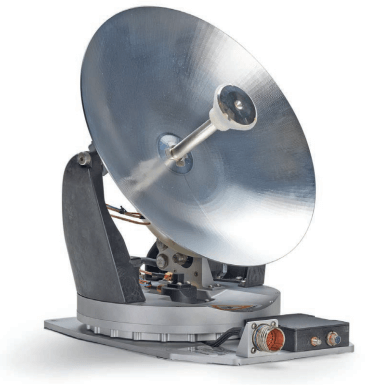

MCS-8000 Honeywell JetWave Tail Mounted Antenna (TMA)

MCS-8000 HONEYWELL JetWave Tail Mounted Antenna (TMA)

Honeywell’s JetWave™ satellite communications terminals enable global consistent connectivity via Inmarsat Aviation’s Global Xpress (GX) Ka-band network.

Designed to provide broadband-class data connectivity, the hardware and network are optimized for mobility to provide a consistently outstanding passenger experience all over the world.

Passengers can experience the same Wi-Fi connection at 40,000 feet as they would on the ground.

These two MCS (Multi-Channel Satcom) configurations use identical RF and antenna controller, modem and router components, with the only difference being that the MCS-8000 uses a tail mounted antenna and the MCS-8100 uses a fuselage mounted antenna.

KEY MISSION FACTS

• System operates on Inmarsat Aviation’s Global Xpress Ka-band network, with four satellites covering the entire globe (polar regions excepted)
• True global broadband class connectivity
• FMA capable of speeds up to 50 Mbps
• TMA capable of speeds up to30 Mbps
• Committed Information Rates (CIRs)
• Service offered through industry-leading Distribution Partners (DP’s)
• Worldwide support through Distribution Partners, Honeywell service depots, and Inmarsat ground network and product experts
• Service available now

CGX KA-BAND ANTENNAS AND TERMINALS

Network Support

• Operates on the Inmarsat’s GX Ka-band network
• FMA – Fuselage-mounted antenna (MCS-8100) or
• TMA – Tail-mounted antenna (MCS-8000)
• Both systems include a common RF and antenna controller, modem and router

Interfaces

• 115 V / 400Hz AC Power
• Multi-Ethernet data
• ARINC 429 from aircraft
• navigation busHoneywell.com

Specifications

FMA(Fuselage Mount Antenna_ – Size: 35.72”(swept volume 9.39″ high), Weight: 83.0 lbs
TMA(Tail Mount Antenna): Size – 8.12” × 11.7” × 13.75”(12” max swept volume), Weight: 10.0 lbs
