HS-OW7MF-DAT Intellian OneWeb OW7MP Manpack, MIL, Desert Tan, with Transit Case

HS-OW7MF-DAT Intellian OneWeb OW7MP Manpack, MIL, Desert Tan, with Transit Case

This version is Packed with all components of the Manpack standard package in a durable carrying case

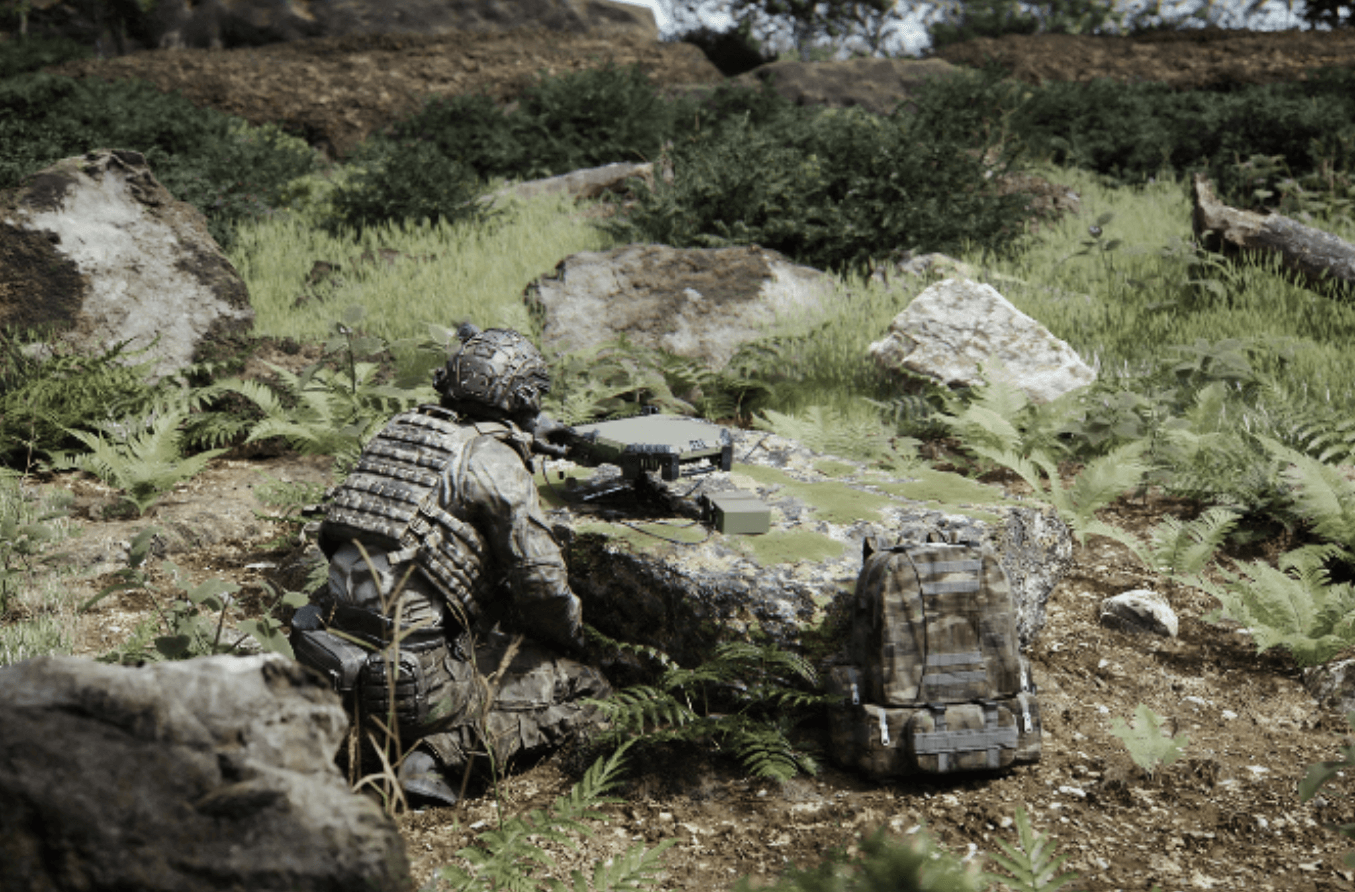

Fully integrated, ruggedized user terminal designed for rapid deployment, the OW7MP Manpack is an ultra-portable, military-grade user terminal powered by Eutelsat’s OneWeb LEO network.

Small and lightweight, it fits a standard military rucksack and features one-touch network acquisition for immediate operation, even in the most demanding and high-pressure conflict regions.

The OW7MP delivers resilient, low-latency connectivity while prioritising operator safety and mission continuity at the tactical edge.

User Friendly Fast Deployment

• COTM (Comms on the Move) – Utilizing the roof rack assembly or alternate mobile mounting accessory(not included) just attach and go.

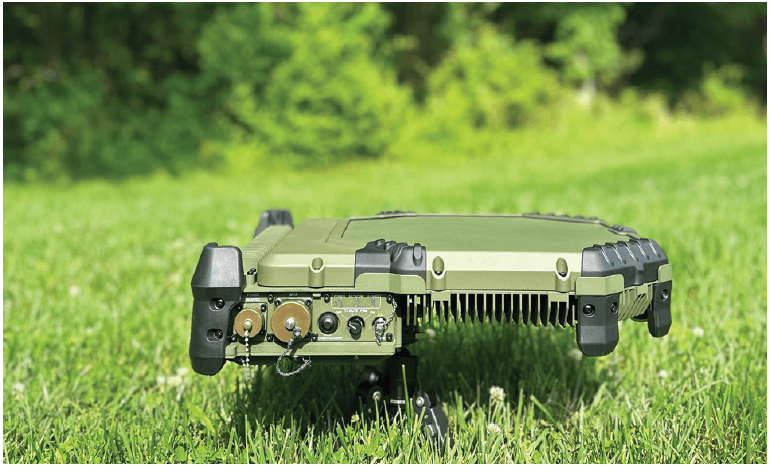

• COTP (Comms on the Pause) – Simply attach the included Tripod and deploy with maximum unobstructed view to the horizon where possible.
• The Manpack features a fully integrated portable design, ruggedized by being designed to MIL-STD-810H, supporting fixed, COTP and COTM applications.
• With an IP67 certification, the Manpack is watertight and designed for outdoor installation in any environment or temporary submersion in water.
• NOTE: Minimizing Satellite Blockage – The ideal Manpack site should have a clear view of the horizon with 360° of clearance. For the Manpack
  to operate effectively, avoid blockages. Examples are listed below. To minimize the influence of obstacles, signal interference, or reflections, note the following guidelines: Avoid trees in the signal path. Seasonal changes, such as leaves or hanging icicles, can impact signal
  absorption and make sure there are no obstacles within ±53° from zenith.

What’s In The Box

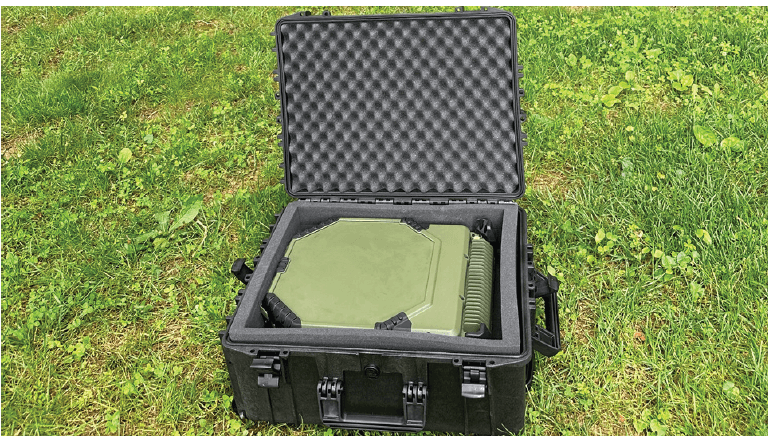

• Transit Case
• Manpack UT(User Terminal), in Coyote Brown color
• Mini-Tripod w/ Quick Disconnect
• QSG (Quick Start Guide)
• Standoffs w/ Rubber Caps
• Y” Power Cable (1.5m)
• AC/DC Power Supply Adapter
• Ethernet Cable (3m)
• RF Hazard Decal
• OPTIONAL ACCESSORIES(available, but NOT included in this pack): Ruggedized Transit Case and a variety of Intellian Mounts

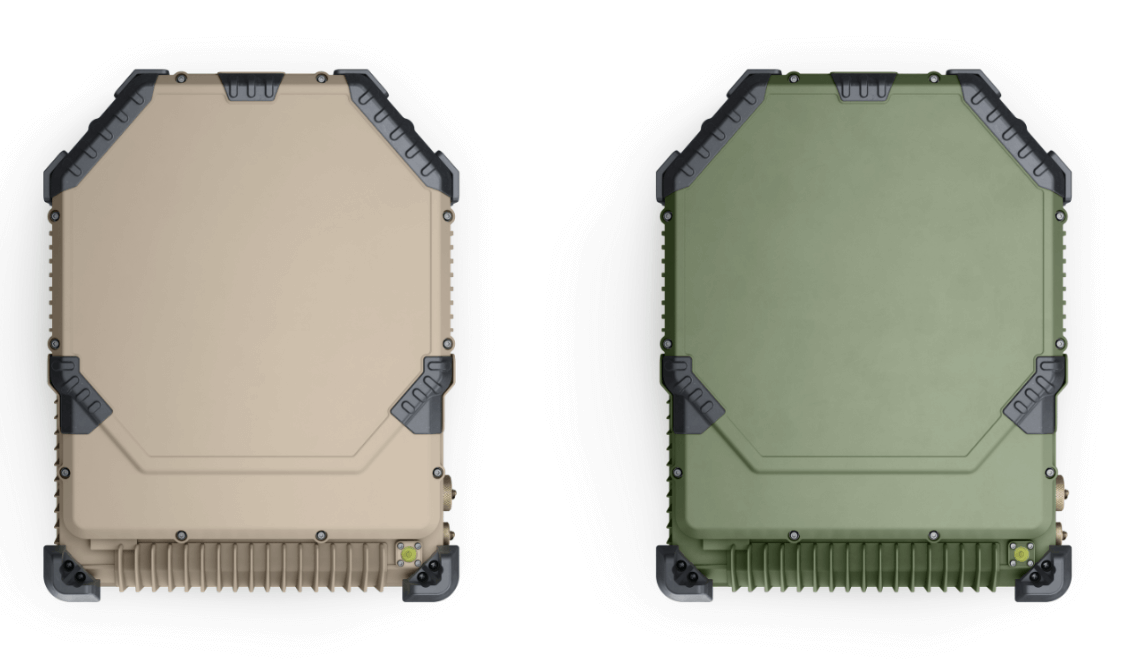

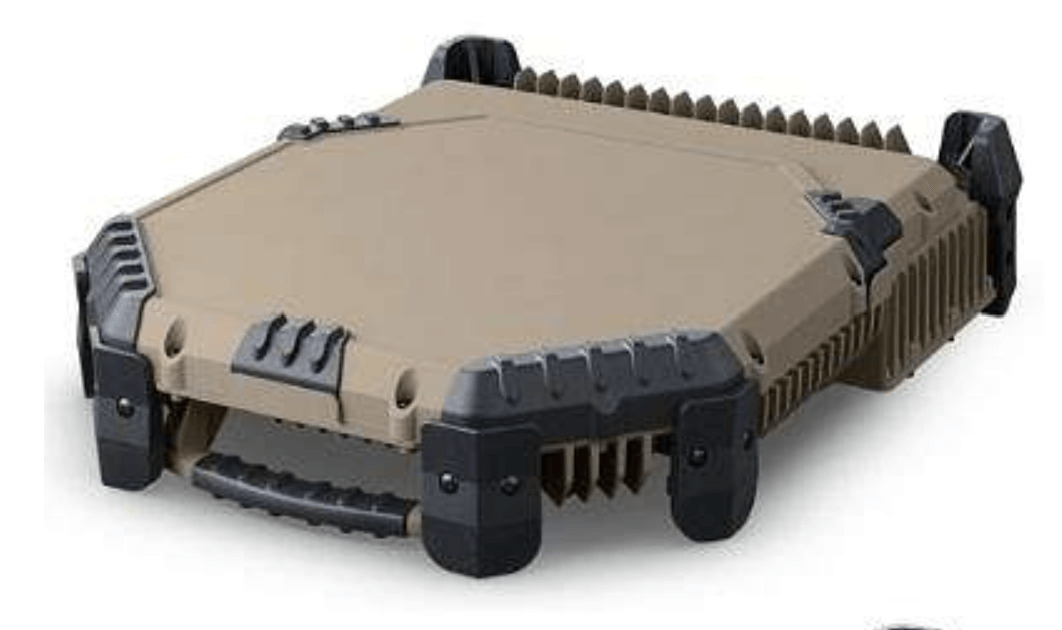

• AVAILABLE COLORS: We offer both Army Green and Coyote Brown color options to meet diverse operational needs, providing flexibility for various mission profiles and terrain conditions.

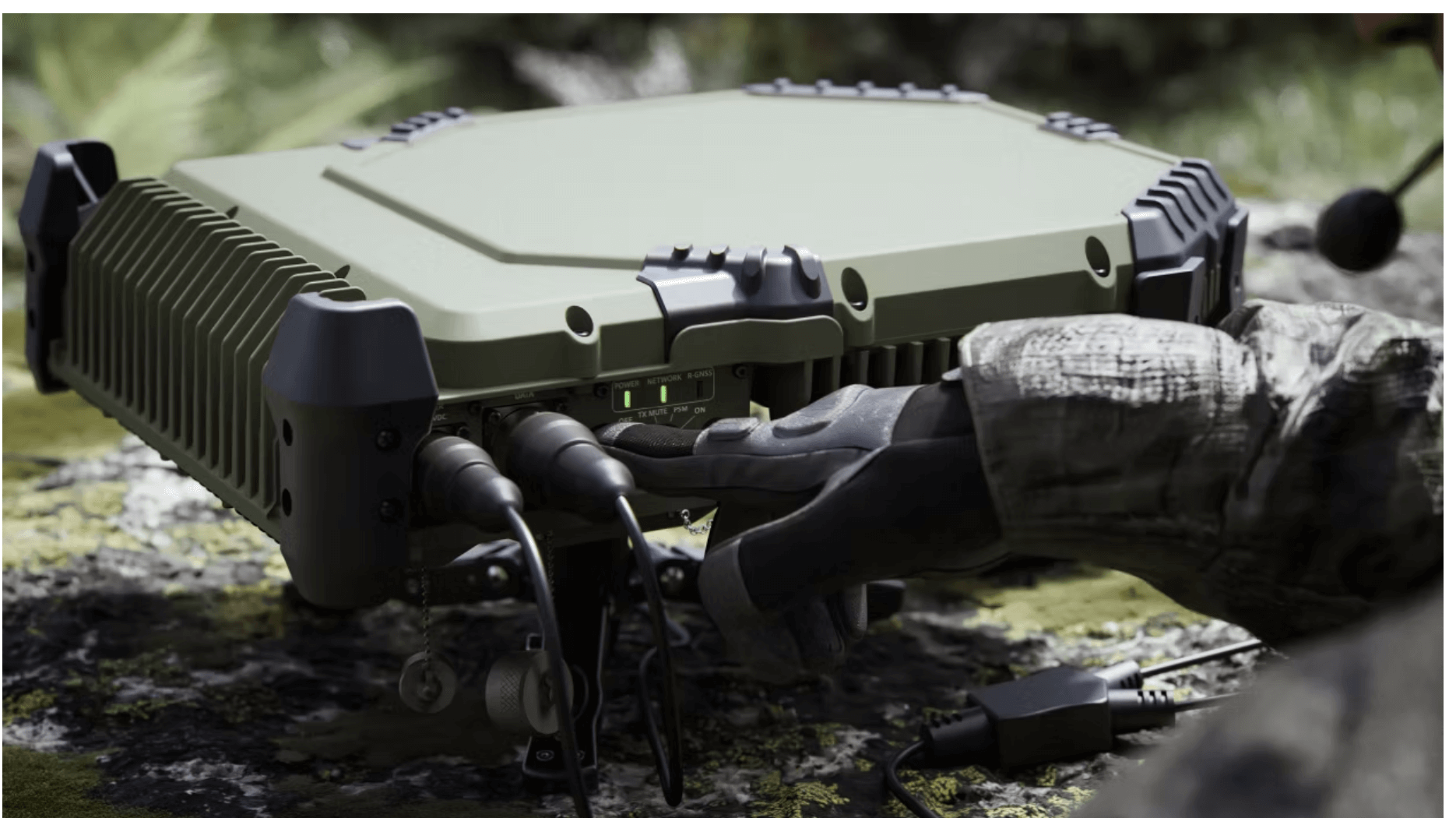

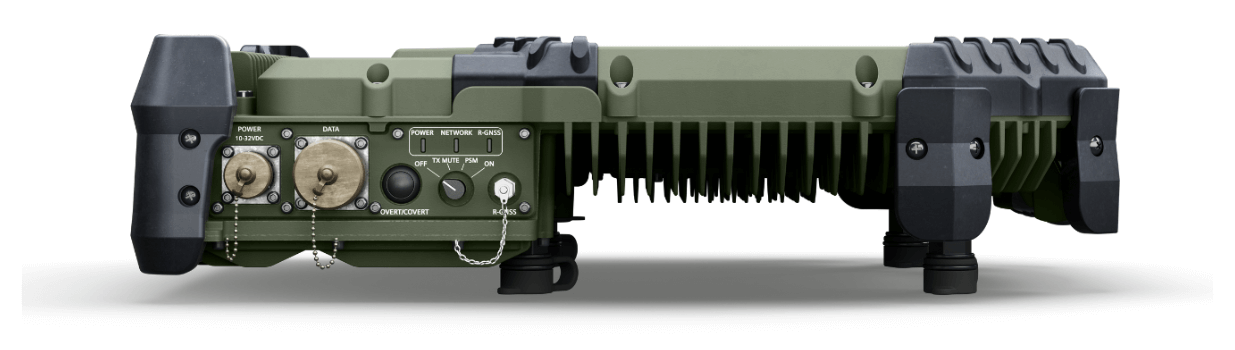

Interfaces

• Power: Y cable, compatible w/ BB-2590 battery or AC PSA
• Data: GigE RJ45 (Ethernet)
• Selector Switch: OFF, Tx MUTE, PSM, ON
• LEDs: Power, Network, R-GNSS
• Push Button: Overt/Covert mode
• R-GNSS: SMA port

Exceptional Performance
Based on Intellian’s proven AESA architecture, the Manpack delivers exceptional performance with throughputs up to 57 x 10 Mbps. Featuring G/T of 7dB/K and EIRP of 36.6dBW, the Manpack ensures reliable connectivity for COTP and COTM applications from 5 to 130 kph. Performance below 5kph may vary.

Durable Design
The Manpack is made to withstand harsh environments with an IP67 rating and is designed to meet the shock, vibe, drop test and environmental profiles as defined in MIL-STD-810H.

Ease of Deployment
With built in automated true north calibration features, Intellian’s Manpack supports fast and easy network acquisition. The Manpack also features Resilient GNSS support, enabling the use of Alt-PNT devices with L1 signal to ensure operation in denied environments.

Optimized Form Factor
Weighing less than 9kg, this compact fully integrated unit seamlessly fits into a standard military rucksack with its 458 x 358 x 108 mm form factor. The
optimized design enables low power consumption, delivering reliable performance for extended periods of time when powered by external batteries, such as the common and reliable BB-2590.

OW7MP – SPECIFICATIONS

• G/T: 7dB/K at boresight
• EIRP: 36.6 dBW
• FoV: +/- 55°
• Dimensions: 458 x 358 x 108mm(18 x 14 x 4.2in)
• Weight: 9kg (19.8lb)
• Power Consumption: 125W (Standard) *100W PSM(Power Saving Mode)
• Operating Temp: -30 °C to +55 °C(-22 °F to +131 °F)
• Storage Temp: -40 °C to +85 °C (-40 °F to +185 °F)
• Ingress: IP67
• Downlink Throughput: **57 Mbps
• Uplink Throughput: **10 Mpbs
• Shock + Vibration: IEC 60068, IEC 60945, IEC 60721; MIL-STD-810H(designed to)
• Environmental: IEC 60068, IEC 60945, MIL-STD-810H(designed to)

* Power Saving Mode (PSM) is for emergency use case when the life of the battery needs to be extended
**Consult us for available Service Plans
