The evolution of modern warfare has exposed the stark need for resilient, conflict-ready connectivity solutions.

Conflict scenarios are more data-driven and interconnected than ever before. As a result, for modern fighters, losing access to real-time communications and accurate data can mean the difference between success and failure for critical operations.”

• New multi-orbit SATCOM terminal expands capabilities for autonomous and mobile command and control operations
• Offers best-in-class durability in small form factor, ruggedized casing, rapid water shedding, and high IP rating

KESTREL u5 KEY FEATURES

• Electronically steered antenna technology
• Full-duplex satellite communications
• Support for OneWeb LEO services
• Support for compatible GEO services
• Hybrid LEO/GEO operation
• Integrated GNSS receiver
• Ethernet connectivity
• Wi-Fi connectivity
• SD-WAN functionality
• IP68 and IP69K environmental protection

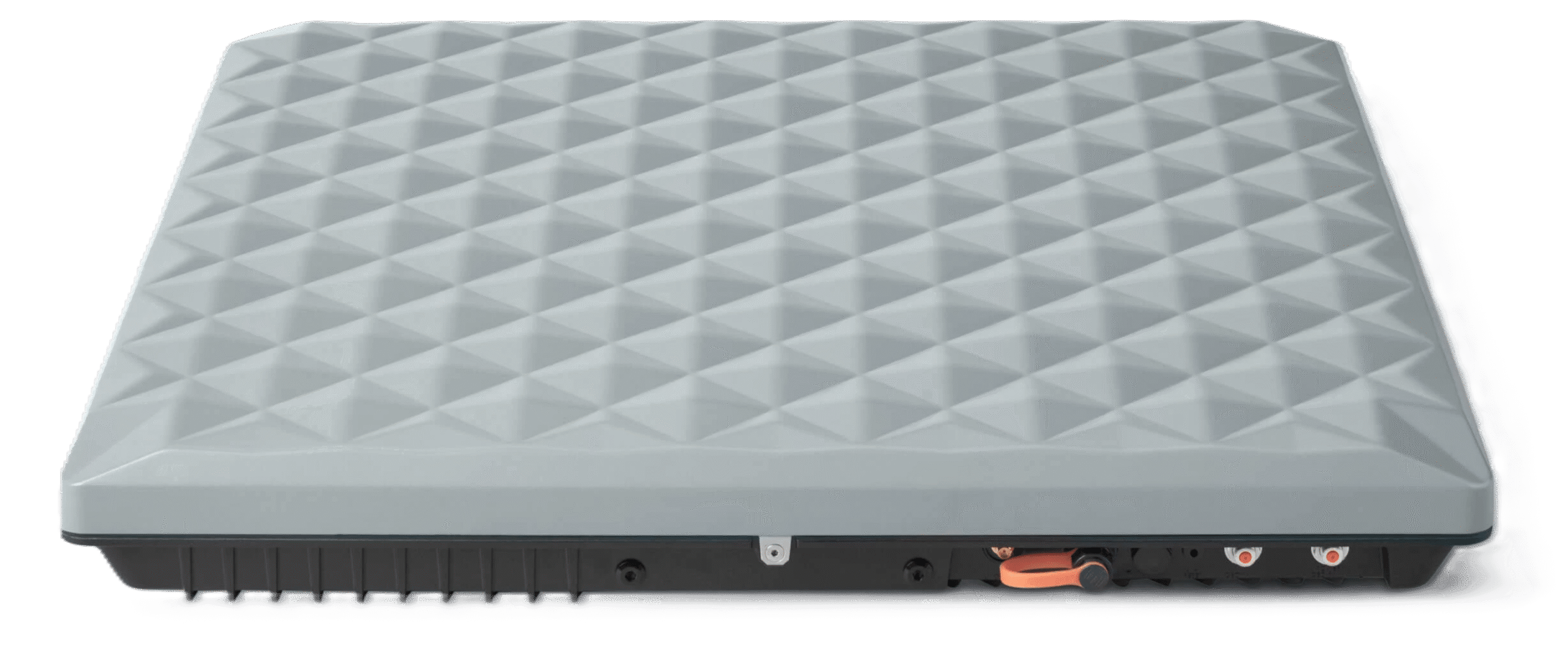

Included in this Pack – U50K-AG08TA-AABAODD-0 (This version is Gray in Color)

• Kymeta u5 Kestrel UT(Antenna) Gray
• Ghost* & Morph** mode licenses
• u5 Router
• Inboard Mount
• AC/DC PSA(Power Supply Adapter)
• 2pcs IF Coax Cable
• Packaging: Cardboard
• NOTE: Default color is Textured Gray, Available Colors: Olive, White, Black

POWER REQUIREMENTS

The Kymeta router receives 48 VDC ±10% input power and distributes power and data connectivity to the UT through the TERMINAL interface. Power consumption varies depending on operating mode and traffic levels.

Power Parameters and Specs

• Input voltage to router: 48VDC ±10%
• Maximum power consumption: 200W
• Typical LEO operation 100W
• Typical GEO operation (low network traffic) 120W
• Typical GEO operation (high network traffic) 170W

MOUNTING SOLUTIONS

The Kestrel u5 supports multiple mounting options depending on the installation environment and selected bundle configuration. Select the mounting solution appropriate for the deployment. Available mounting options include:

Outboard mount (U5ACC-00008-0)

• The outboard mount is a low-profile, four-point through-bolt mounting solution designed for flat-surface installations.
• The installed height is approximately 100 mm (4 in.).
• Refer to the Kestrel u5 Outboard Mount Installation Instructions (700-00371-000) for installation procedures.

Inboard mount (U5ACC-00010-0)

• The inboard mount is designed for protected or recessed installations.
• The mount is compatible with Seaview mounting solutions and the Kymeta u8 mounting pattern.
• The mount can be installed directly on narrow-base mounting platforms.
• Refer to the Kestrel u5 Inboard Mount Installation Instructions (700-00370-000) for installation procedures.

Vehicle rack mount (U5ACC-00011-0)

• The vehicle rack mount is an adjustable mounting solution for vehicle applications.
• The mount supports roof rack crossbar spans from 45 cm to 90 cm (17.72 in. to 34.45 in.), measured center-tocenter.
• Refer to the Kestrel u5 Vehicle Rack Mount Installation Instructions (700-00376-000) for installation procedures.

Flyaway transport kit (U5ACC-00012-0)

• The flyaway transport kit is a portable transport solution for mobile deployments.
• The airline-checkable case accommodates the UT, router, power supply, cables, and mounting hardware and is designed to comply with most commercial airline oversize and overweight check-in requirements.
• If assistance is required in selecting a mounting configuration, contact Kymeta customer support.

At a Glance

• MULTI-NETWORK:   LEO and GEO network compatible, modem agnostic architecture
• MULTI-ORBIT: LEO, GEO, HEO + Elliptical
• FULL APERATURE: Maximum antenna area with interlaced RX and TX apertures
• FASTER BEAM SWITCHING: Sub-1 msec. repointing, tuning, and pol
• WAVEFORM AGNOSTIC: Compatible with future and legacy waveforms
• FULL DUPLEX & POLARIZATION AGILE_ Higher throughput, lower jitter, future proof
• RUGGED: Ready for land and sea mobility, best in class durability
• SMALLER & LIGHTER: 70% smaller, 68% lighter than Kymeta u8
• EXPANDABLE: Field upgradeable and serviceable

KESTREL u5 UT SPECS

• Antenna type: Single aperture, full duplex, Ku-band ESA
• Scan angles: Azimuth 360° / Elevation +15° to +90°
• Polarization: Software-defined circular
• RX band: 10.70GHz to 12.75GHz
• TX band: 13.75GHz to 14.50GHz
• G/T: 9.2dB/K
• EIRP: LEO 40.3dBW / GEO: 42.3dBW(broadside)
• Modem: Embedded OneWeb satellite subscriber module(SSMv2)
• Dimensions: 60 × 60 × 8cm (23.62 × 23.62 × 3.15in)
• Weight: 10.75kg (23.70lb)
• Input power: AC via external power supply
• Typical power: 100W
• Operating temperature: -40°C to +55°C (ambient) / -40°C to +70°C (with solar load)
• Survival temperature: -40°C to +85°C
• Ingress protection: IP68

KESTREL u5 ROUTER SPECS

• Hosted capabilities: OneWeb CNX, Kymeta u5 Access GUI
• Dimensions: 32.9 × 23.8 × 4.2cm (12.95 × 9.37 × 1.65in)
• Weight: 1.8kg (3.97lb)
• Input power: AC via external power supply
• Operating temperature: -40°C to +55°C(ambient) / -40°C to +70°C(with solar load)
• Ingress protection IP68

The following accessories are available for the Kestrel u5 platform.

• U5ACC-00003-0 Kestrel u5 maritime mount
• U5ACC-00004-0 Kestrel u5 AC-DC power supply
• U5ACC-00005-0 Kestrel u5 DC-DC converter
• U5ACC-00006-0 Kestrel u5 coax cable kit, LEO, 1x
• U5ACC-00007-0 Kestrel u5 Ethernet cable kit
• U5ACC-00008-0 Kestrel u5 low-profile surface (outboard) mount
• U5ACC-00009-0 Kestrel u5 DC-DC converter (rail, 200 W)
• U5ACC-00010-0 Kestrel u5 cradle (inboard) mount
• U5ACC-00011-0 Kestrel u5 vehicle rack mount
• U5ACC-00012-0 Kestrel u5 flyaway case
• U5ACC-00013-0 Kestrel u5 shipping box
• U5ACC-00014-0 Kestrel u5 coax cable kit, LEO/GEO, 2x
• NOTE: Accessory availability may vary deployment type and product configuration.

The following field replaceable units are available for the Kestrel u5 platform.

• U5ACC-00001-0 Router card kit
• U5ACC-00015-0 Kestrel u5 router kit

EMCON OPERATION

• The Kestrel u5 supports Emissions Control (EMCON), also referred to as *Ghost Mode, for deployments that require control of RF emissions and operational visibility.
• EMCON enables users to intentionally reduce or restrict RF activity while maintaining awareness of the system’s operational state. This capability can be used to support regulatory requirements, operational security requirements, or mission-specific operating procedures.
• EMCON provides multiple operating states that control transmission activity and radio operation. 8.6.1 Understanding EMCON states Delta Delta is the normal operating state.

Delta mode – Delta is the normal operating state:

• No transmission restrictions are applied.
• Normal LEO and GEO operation is supported.
• All configured services are available.

Charlie mode – Charlie mode applies transmission restrictions while maintaining limited satellite operation:

• Transmission can be restricted within defined hazard or blockage zones.
• Operation may be restricted to a single GEO or LEO network.
• Transmit mute settings persist across system reboots.

Bravo mode – Bravo disables satellite transmission:

• Satellite transmit functions are muted.
• Receive-only operation may be permitted.
• The EMCON state persists across reboots.

Alpha mode – Alpha disables all radio operation:

• All radio transmit functions are disabled.
• All radio receive functions are disabled.
• The router remains powered to support local management access.
• The system may be safely powered down if required.

OVERVIEW

The Kestrel u5 provides a new and reliable way for modern warfighters and government teams to stay connected and adapt to multiple mission profiles, offering seamless connectivity (switching between beams in under 1 millisecond) across networks, constellations, and LEO, GEO, HEO, and Elliptical orbits. Designed to keep pace with the rapidly evolving technological landscape, this rugged terminal offers future-ready capabilities, including full-duplex functionality and support for remote upgrades.

Purpose-built for operations across land and sea, the Kestrel u5 offers a comprehensive solution for unmanned systems and other platforms. The terminal’s lightweight, low-profile and rugged design have been engineered to match the intense demands of modern warfare, where factors like constant movement, RF jamming, and shock damage continuously threaten the integrity of connectivity systems.

Flexible and easy-to-install, the terminal is comprised of a no-moving-parts architecture that mounts easily to the top of unmanned sea vessels and other next-generation vehicles. Its durability-first design incorporates shock absorption and patent-pending radome technology for optimal water-shedding speed and the ability to withstand, and recover from, periods of submersion in water.

With critical Low Probability of Detection/Interception features (LPD/LPI), the Kestrel u5 offers a best-in-class low thermal signature, underpinned by the terminal’s low power consumption (less than 100 W typical) and passive cooling system. To top its survivability advantage, the terminal’s use of Kymeta’s unique metamaterials-based antenna surface provides a narrow beam, reducing the risk of RF jamming or interference.

The Kestrel u5’s advanced connectivity features are encased in a durable yet highly compact and lightweight form factor (less than 11kg), freeing up valuable turret-top and hull space. Designed to adapt to modern conflict scenarios, the terminal’s slimline, easy-to-integrate form factor combines maximized uptime with flexible installation.

“With the Kestrel u5, we have brought to market a connectivity solution that addresses key demands of the rapidly evolving battlefield. With our multi-network approach to LEO and GEO connectivity, this terminal takes a proactive approach to downtime, seamlessly switching across networks and enabling commanders with a redundant PACE plan. This innovative multi-orbit capability is protected by the terminal’s rugged outer layer. And this advanced connectivity and ruggedized form factor is delivered in a package with unmatched SWaP-C. All these factors combine to deliver an entirely new SATCOM capability that is set to change the game in how distributed teams connect, command, and survive.”
