404310A-00510 Sailor 7200 GMDSS, Certus 100 Basic System
$9,513.90 Inc. GST
404310A-00510 Sailor 7200 GMDSS, Certus 100 Basic System
The SAILOR 7200 GMDSS terminal from Cobham Satcom sets a new benchmark in maritime safety communications. Built on Cobham Satcom’s decades of innovation in maritime safety, this compact terminal delivers next-generation GMDSS functionality for the Iridium® network, providing essential voice and data services while enabling Ship Security Alert System (SSAS) and Long-Range Identification and Tracking (LRIT) in a single integrated platform.
Global Reach, Unmatched Reliability
Designed specifically for Iridium Certus® 100, the SAILOR 7200 GMDSS delivers global coverage, including polar regions, ensuring reliable safety communications wherever vessels operate. It supports real-time distress voice calling, safety messaging, and urgent data transmission, supporting an effective response during emergencies. Combined with low-latency connectivity and robust service availability from Iridium’s unique LEO satellite constellation, it is ideally suited to today’s evolving regulatory and operational requirements.
Integrated Design for Easy Operation

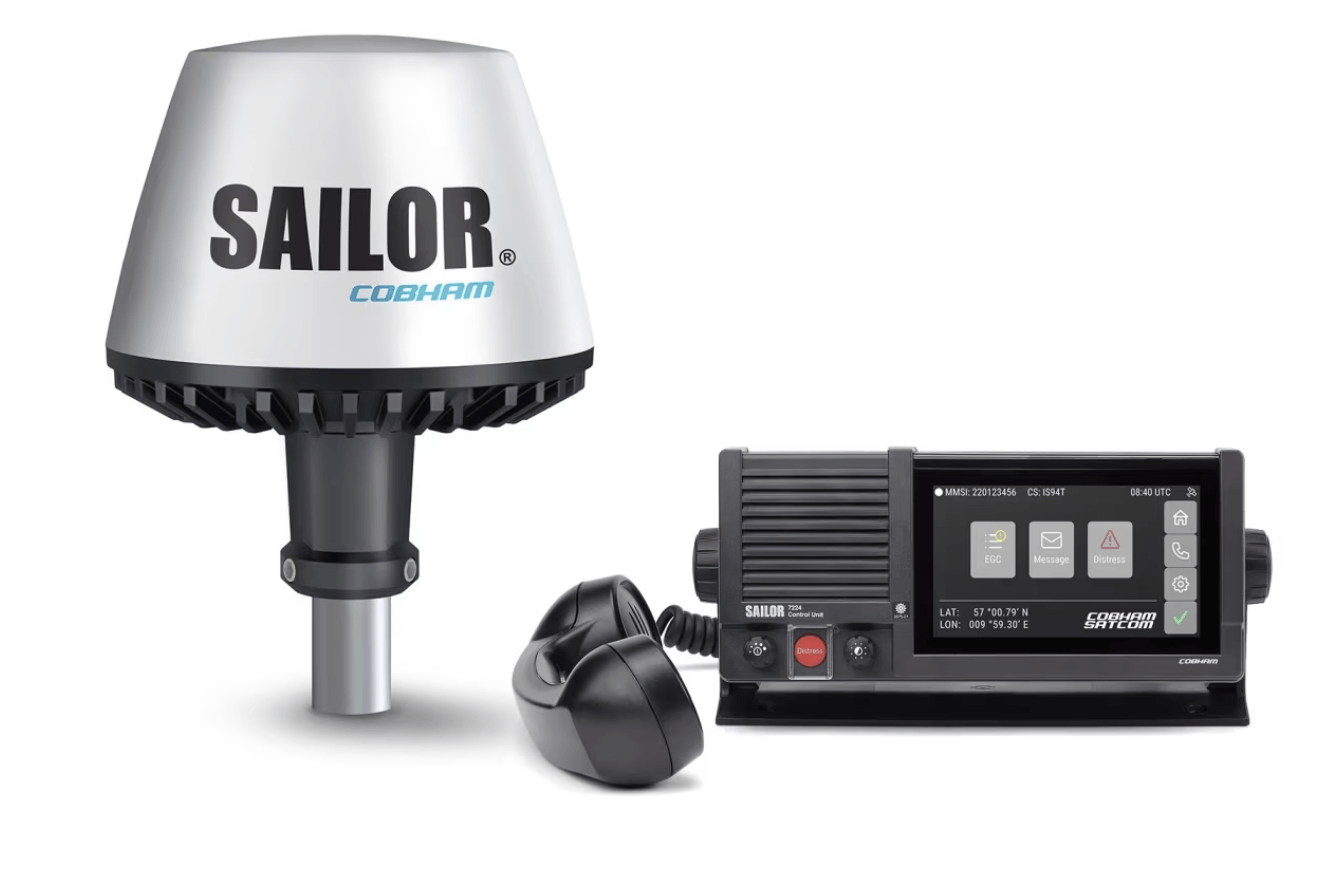

The SAILOR 7200 GMDSS comprises a rugged omni-directional antenna with integrated terminal intelligence, a below-deck unit (BDU) for simplified power and data connections, and a dedicated safety terminal featuring the trusted SAILOR user interface. This design not only ensures fast, intuitive operation and easy installation, but also streamlines integration with bridge systems and reduces total cost of ownership.
As a standalone Iridium GMDSS solution, SAILOR 7200 supports seamless deployment for GMDSS, SSAS, and LRIT compliance on SOLAS vessels and other ships requiring safety-certified connectivity. Its compact footprint and efficient power usage further enhance suitability for all vessel types, from merchant fleets to fishing and expedition vessels.
With SAILOR 7200 GMDSS, Cobham Satcom continues its mission to deliver the highest standards of safety at sea, enabling dependable, future-ready maritime safety communications across a wide range of services and vessel types.
Included in this Pack – SAILOR 7200 GMDSS Basic System
- 403737A-THR SAILOR 3737 Below Deck Unit
- 404354A-THR SAILOR 7200 L-Band Above Deck Unit
- 407225B-THR SAILOR 7225 Control Unit, IGT
- 406201A-00500 SAILOR 6201 Handset
- 62-130214 Assembled 1 Inch Pipe Adaptor
- 67-189430 Screw kit for SAILOR 3737 Below Deck Unit
- 67-190470 Mounting kit for SAILOR 7200 ADU
- Note: Cable between ADU and BDU is required, but is NOT included in this pack.
SPECIFICATIONS – Sailor 7200 GMDSS, Basic Kit
| TECHNICAL SPECIFICATIONS | |

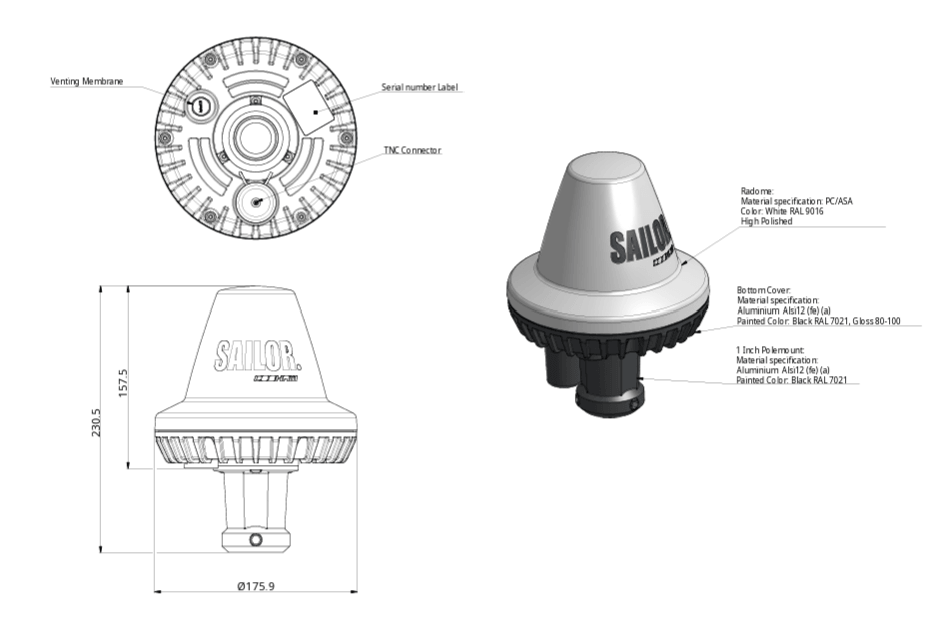

| 404354A – Above Deck Unit | |
| Iridium terminal class | Certus 100 |
| Antenna type | Omni directional |
| Weight | 1.6 kg (with pole mount) (TBC) |
| Dimensions | Height: 157.5 mm (without pole mount), 230.5 mm (with pole mount) Diameter: 175.9 mm |
| Operating temperature | -25ºC to 55ºC |
| Storage temperature | -35ºC to 85ºC |
| Ingress protection | IPX6 |
| Power supply | Supplied by BDU |
| Power consumption | 12 W typical 28 W max (TBC) |
| Frequency band | 1616 MHz to 1626.5 MHz (RX and TX) |
| ADU-BDU connection | Coaxial cable, TNC-TNC. Maximum RF loss: 20 dB @ 1643 MHz Maximum DC loss: 2.0 Ω Recommended cable: RG-214U (up to 50 m) LMR-400 (up to 100 m) |

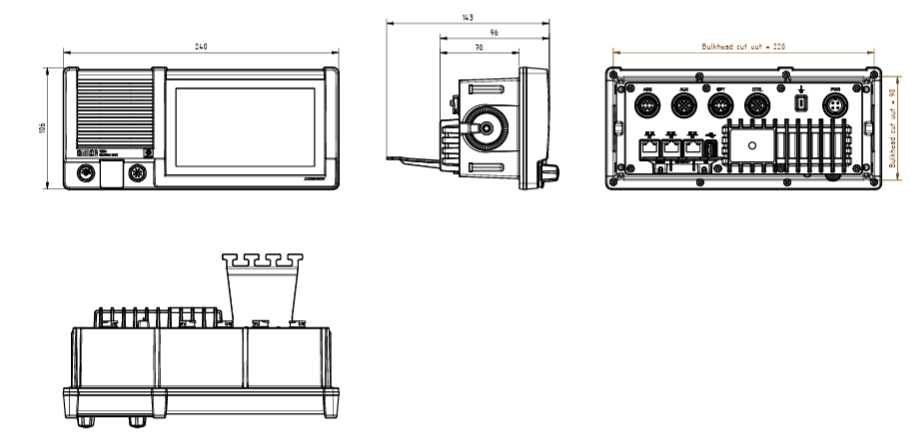

407225B – Control Unit |
|
| Weight | 1.0 kg |
| Dimensions | 107 x 241 x 104 mm (H x W x D) |
| Operating temperature | -15ᵒC to 55ᵒC |
| Storage temperature | -25ᵒC to 70ᵒC |
| Ingress protection | IP54 when flush-mounted (Estimated, only front exposed) IP20 for other installation (whole unit exposed) |
| Power supply | +24 V DC nom. (-10% / +30%) |
| Power consumption | 10 W @ 24 V DC standby 33 W @ 24 V DC max |
| Display | 5.5” TFT with capacitive multi touch 300 cd/m2 brightness 1280×720 resolution 40k hours to half brightness |
| Speaker | Internal speaker – Max audio output power: 6W (internal LS @ 5 kHz deviation/1kHz) |
| LAN | 3 x RJ45, 10/100 Mbit |
| USB | USB 2.0, type A. For external keyboard. |
| ACC port | Handset interface 2 x NMEA RX for GNSS |
| AUX port | NMEA RX for GNSS |
| OPT port | NMEA RX/TX for BAM |

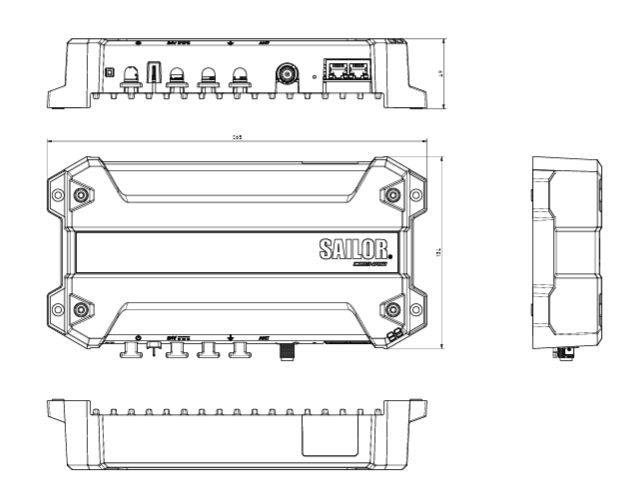

403737A – Below Deck Unit |
|
| Weight | 1 kg (TBC) |
| Dimensions | 134 x 265 x 49 mm (H x W x D) |
| Operating temperature | -15ᵒC to 55ᵒC |
| Storage temperature | -25ºC to 70ºC |
| Ingress protection | IP20 |
| Power supply | +24 V DC nom. (-10% / +30%) |
| Power consumption | 7 W (TBC) |
| SSA ports | 6 x alert buttons 1 x test button |
| LAN | 2 x RJ45, 10/100 Mbit |
| SIM card interface | Mini-SIM card. 2FF 15x25mm |
| LEDs | 2 x Status LEDs |
