LEIDOS-AU-2# G&S-0433A /OS-OW10HF-CNX-WIFI-BNDL Intellian OneWeb OW10HM Flat Panel, WIFI-CNX w/ overnite air shipping

LEIDOS-AU-2# G&S-0433A /OS-OW10HF-CNX-WIFI-BNDL Intellian OneWeb OW10HM Flat Panel with WIFI-CNX, w/ overnite air  shipping only

REFER BELOW FOR GENERIC INFO***********************************************

OS-OW10HF-CNX-WIFI-250A Intellian OneWeb OW10HM Flat Panel, Compact with WIFI-CNX, 250W AC PSA (Maritime)

The OW10HM is the ideal Flat Panel UT for the fishing and leisure markets, offering a small lightweight and sleek form factor, designed to outperform existing connectivity solutions.

The OW10HM from Intellian delivers unprecedented speeds in a compact form factor and optimized for size, weight and power (SWaP), it features a low- profile weatherized design which delivers reliable connectivity to maritime users. ​

​The OW10HM delivers the ideal solution for maritime customers across:

• Fishing Vessels, Yachts,
• Coast Guard, Navy Vessels,
• USV(Unmanned Surface Vessel) and other Small Vessels at Sea.

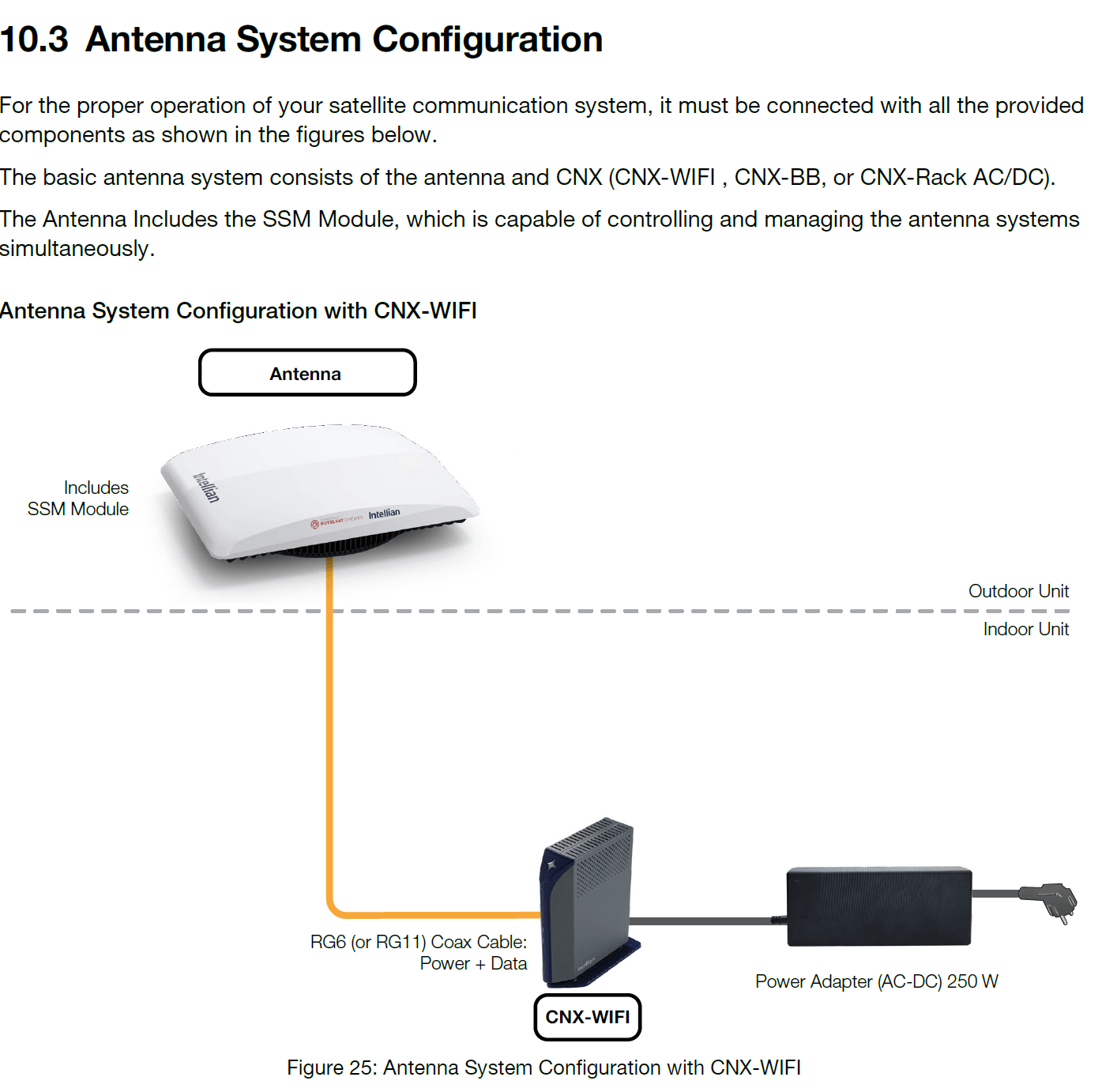

WHATS IN THE BOX – OS-OW10HF-CNX-WIFI-250A

Pack# 1of 2 – ODU PACKAGE (825 x 565 x 310mm)

• 1pce OW10Hx Outdoor Unit
• 1pce RG6 cable, 5m (for testing purposes only)
• 4pcs Hex bolt_M6_12mm
• 4pcs Spring washer_M6
• 4pcs Flat washer_M6
• 4pcs Hex-S bolt_SF_M6
• 1pce RF warning sticker
• OW10Hx QIG(Quick Installation Guide) for Compact Flat Panel
• 1pce Adjustable Mount Adapter (part# OW-6017 included with Land series only)
• 1pce Flexible grounding braid (included with Land series only)

Pack# 2of 2 – part# PP-T1A1-250A (569 x 429 x 310)

• part# PP-T1A1 CNX-WIFI Unit
• 1pce Mounting Bracket: Desktop/Wall mount style
• Ethernet(RJ45) Cable, 1m
• 1pce AC-DC 250W PSA, 110-240VAC
• 1pce AC Power Cord EU (CEEE7/7), 220V, European AC Cord, 1.5m
• 1pce AC Power Cord NA (NEMA 5-15P), 110V, North American AC Cord, 1.5m
• Documentation Pack, QIG(Quick Installation Guide)

Optimized Performance

Utilizing Intellian’s innovative antenna design, the OW10HM delivers optimal performance in a compact form factor making it the ideal connectivity solution for use cases that are SWaP constrained. The resulting solution provides the user experience and service levels for maritime applications that customers expect.

Customer Network Exchange

Intellian’s Customer Network Exchange (CNX) units are a critical component of any OneWeb user terminal installation, providing both the power and data connectivity to the Flat Panel user terminal, and the connectivity to customer equipment and networks. CNX variants are offered for specific deployment scenarios including Land Fixed, Maritime and Land Mobility.

Seamless Connectivity

The OW10HM features Intellian’s advanced tracking technology improving connection reliability and availability, even on heavy seas and at the lowest elevation angles encountered in equatorial regions. Ensuring minimal loss over scan, the innovative flat panel technology facilitates smooth reliable handovers, which ensure seamless and undisrupted connectivity.

Harsh Environment Performance

The OW10HM is designed to ensure dependable performance in even the most demanding environments, operating in extremely low temperatures down to -40 °C and up to +55 °C (-40 °F to 131 °F). Integrated radar rejection filtering ensures performance in high interference installations and reliable broadband services for customers at sea.

Simplified Installation

The lightweight design and compact form factor of the OW10HM enables easy installation by a single person. The universal mount design supports standard maritime mounts. Installation is further simplified through use of combined power and data over a single coax cable connecting the below deck CNX units. The use of Intellian’s mobile app for site survey, automated configuration, and monitoring further reduces the time required to get online.

OW10HM Compact UT – PERFORMANCE – MARITIME REQUIREMENT

Maritime Profile:
The Compact UT (OW10HM) shall support the following dynamic profile for marine vessels operating in moderate to rough sea conditions, while maintaining no more than 0.7deg motion induced beam pointing error:
Maritime Class A Dynamics
Angular Rate (deg/s): 14.0 +/- 3.0 (1-sigma)
Angular Acceleration (deg/s^2): 75.0
Translational Acceleration (m/sec^2): 4.0 +/- 1.0 (1-sigma).
The UT mobility system shall compensate for rotational motion on each axis (roll, pitch, yaw) that does not exceed a maximum rate of 17 deg/s.

Angular Velocity:
The Compact UT (OW10HM) shall compensate for rotational motion on each axis (roll, pitch, yaw) that does not exceed a maximum rate of 17 deg/s. Commentary: The max. angular rates account for 95% of Class A maritime measurements, as described in GVF-105 “Performance and Test Guidelines for Type Approval of ‘Comms On The Move’ Mobile Satellite Communication Terminals.

Angular Acceleration:
The Compact UT (OW10HM) shall compensate for angular acceleration on all axes that does not exceed a maximum rate of 75 deg/s/s. Commentary: The max. angular accelerations account for 95% of Class A maritime measurements, as described in GVF-105 “Performance and Test Guidelines for Type Approval of ‘Comms On The Move’ Mobile Satellite Communication Terminals.

Translational Acceleration:
The Compact UT (OW10HM) shall compensate for translational acceleration on all axes that does not exceed a maximum rate of 5 m/s/s. Commentary: The max. translational accelerations account for 95% of Class A maritime measurements, as described in GVF-105 “Performance and Test Guidelines for Type Approval of ‘Comms On The Move’ Mobile Satellite Communication Terminals.

Shock & Vibe:
The Compact UT (OW10HM) shall support COTM (Comms on the Move) operation while complying with MIL-STD-810H 514.8 vibration Procedure I, and MIL-STD-810H 516.8 shock Procedure I, as well as MIL-STD-167-1 vibration and shock profiles and shall maintain connection in a manner that ensures the end user doesn’t perceive a pause or drop in connectivity when subjected to motion the motion profile defines in the “Mobility Performance – Maritime” Requirements.

OW10Hx SPECIFICATION – Compact Panel series

Antenna (ODU/ADU)

• Dimensions: 560 x 450 x 120mm(22.0 x 17.7 x x 4.7in)
• Weight: 12.2kg(27 lb)
• Power Max: 180W, Avg 165W
• Operating Temperature: -40°C to +55°C (-40°F to 131°F)
• G/T: 9 dB/K
• EIRP: + 33.6 dBW (single carrier), +36.6 dBW (dual carrier)
• Field of View: ± 55° from zenith 360° azimuth
• Ingress: IP66
• Interface: F-type(Female) port, Ethernet Cable RJ45 port

CNX-WIFI (PP-T1A1) Basic Specifications:

• Intellian Part: PP-T1A1
• Mounting Profile: Desktop & Wall Mount
• Dimensions: 21 x 17 x 8cm (8.2 x 6.7 x 3.1in)
• Weight: 0.6 kg (1.3lb)
• Operating Temp: 0 °C to +40 °C (+32 °F to +104 °F)
• Ingress: IP44
• Data Interface: Embedded WiFi-6 Access Point (user enabled/disabled) 4-port GigE RJ45
• Power Input: Refer below Installation Guide
• Power Output: F-Type(Female) connector via Coaxial Cable to UT
• Compatibility: Compact Series & Enterprise Series

CNX ORDERING GUIDE

• CNX-BB stand-alone, part# PP-T1A0 (requires, but does NOT include any PSA)
• CNX-BB Bundle, part# PP-T1A0-250A, Description: CNX-BB with 250W AC/DC PSA, Application: OW10HL, OW10HV and OW10HM
• CNX-BB Bndl, part# PP-T1A0-DC, Desc: CNX-BB with 480W DC-DC Converter PSA(No ACC), Application: OW10HL and 10HV
• CNX-WIFI series/application
• CNX-Wifi stand-alone, part# PP-T1A1 (requires, but does NOT include any PSA)
• CNX-Wifi Bundle, part# PP-T1A1-250A, Description: CNX-Wifi with 250W AC/DC PSA, Application: OWHL, OWHV, OWHM
• CNX-Wifi Bundle, part# PP-T1A1-450A, Description: CNX-Wifi with 450W AC/DC PSA, Application: OW11FL, OW11FL, OW11FM
• CNX Wifi Bndl, part# PP-T1A1-DC, Desc: CNX-Wifi with 480W  DC-DC Converter PSA(No ACC), Appn: OW10HL, 10HV, OW11FL, 11FV
• CNX-Wifi Bndl, part# PP-T1A1-DCA, Desc: CNX-Wifi with 560W DC-DC PSA(with ACC), Appn: OW10HL, 10HV, OW11FL, 11FV
• CNX-MOBILITY series/applications
• CNX-Mobility stand-alone, part# PP-T2D1 (Requires but does NOT include any PSA)
• CNX-Mobility Bundle, PP-T2D1-450A, Desc: CNX-Mobility with 450W AC/DC PSA, Appn: OW10HL, 10HV, 10HM and OW11FL, 11FV, 11FM
• CNX-Mobility Bundle, part# PP-T2D1-DC, Desc: CNX-Mobility with 480W DC-DC Converter PSA(No ACC), Appn: OW10HV and OW11FV
• CNX-Mobility, part# PP-T2D1-DCA, Desc: CNX-Mobility with 560W DC-DC PSA(with ACC), Appn: OW10HV and OW11FV
• CNX-RACK series/applications
• CNX-Rack-AC, part# OP-T2C0, Description: CNX-Rack-AC version, Application: OW10HL, 10HV, 10HM and OW11FL, 11FV, 11FM
• CNX-Rack-DC, part# OP-T2B0, Description: CNX-Rack-DC version, Application: OW10HL, 10HV, 10HM and OW11FL, 11FV, 11FM

CNX COMPATIBILITY GUIDE

• COMPACT PANEL APPLICATIONS
• OW10HL (Fixed Land), and OW 10HV (Land Mobile/Vehicle)
• CNX-BB w/ 250W AC/DC PSA, ORDER part# PP-T1A0-250A
• CNX-BB w/ 480W DC-DC Converter PSA, Order part# PP-T1A0-DC
• CNX-Wifi w/ 250W AC/DC PSA, ORDER part# PP-T1A1-250A
• CNX-Wifi w/ 480W DC-DC PSA w/o ACC Feature, ORDER part# PP-T1A1-DC
• CNX-Wifi w/ 560W DC-DC PSA w/ ACC Feature, ORDER part#  PP-T1A1-DCA
• CNX-Mobility w/ 450W AC/DC PSA, ORDER part# PP-T2D1-450A
• CNX-Mobility w/ 480W DC-DC PSA w/o ACC Feature, ORDER part# PP-T2D1-DC
• CNX-Mobility w/ 560W DC-DC PSA w/ ACC Feature, ORDER part#  PP-T2D1-DCA
• CNX-Rack-AC, ORDER part#  OP-T2C0
• CNX-Rack-DC, ORDER part# OP-T2B0
• OW10HM (Maritime)
• CNX-BB w/ 250W AC/DC PSA, ORDER part# PP-T1A0-250A
• CNX-Wifi w/ 250W AC/DC PSA, ORDER part# PP-T1A1-250A
• CNX-Mobility w/ 450W AC/DC PSA, ORDER part# PP-T2D1-450A
• CNX-Rack AC, ORDER part#  OP-T2C0
• CNX-Rack-DC, ORDER part#  OP-T2B0
• ENTERPRISE PANEL APPLICATIONS
• OW11HL (Fixed Land), and OW 11HV (Land Mobile/Vehicle)
• CNX-Wifi w/ 450W AC/DC PSA, ORDER part# PP-T1A1-450A
• CNX-Wifi w/ 480W DC/DC PSA w/o ACC Feature, ORDER part# PP-T1A1-DC
• CNX-Wifi w/ 560W DC/DC PSA w/ ACC Feature, ORDER part#  PP-T1A1-DCA
• CNX-Mobility w/ 450W AC/DC PSA, ORDER part# PP-T2D1-450A
• CNX-Mobility w/ 480W DC/DC PSA w/o ACC Feature, ORDER part# PP-T2D1-DC
• CNX-Mobility w/ 560W DC/DC PSA w/ ACC Feature, ORDER part#  PP-T2D1-DCA
• CNX-Rack-AC, ORDER part#  OP-T2C0
• CNX-Rack-DC, ORDER part# OP-T2B0
• OW11HM (Maritime)
• CNX-Wifi w/ 450W AC/DC PSA, ORDER part# PP-T1A1-450A
• CNX-Mobility w/ 450W AC/DC PSA, ORDER part# PP-T2D1-450A
• CNX-Rack-AC, ORDER part#  OP-T2C0
• CNX-Rack-DC, ORDER part#  OP-T2B0

SUPPORTED CABLES – INSTALLATION GUIDE

• Refer below for: OW10FM (Maritime), OW10HL (Fixed Land), OW10FV (Land-mobile/Vehicle)
• CNX-BB/WIFI/MOB: AC/DC, 110-240VAC to 56VDC, 250/450W, Length: 45m, Cable Type: RG-11, MANUF. Part# BELDEN 1525A
• CNX-BB/WIFI/MOB: AC/DC, 110-240VAC to 56VDC, 250/450W, Length: 45m, Cable Type: RG-11, MANUF. Part# Amphenol T11TSFx77-LTV
• CNX-BB/WIFI/MOB: AC/DC, 110-240VAC to 56VDC, 250/450W, Length: 75m, Cable Type: RG-6, MANUF. Part# BELDEN 1694A-2
• CNX-BB/WIFI/MOB: AC/DC, 110-240VAC to 56VDC, 250/450W, Length: 190m, Cable Type: RG-11, MANUF. Part# BELDEN 7731A & 7731RW
• CNX-BB/WIFI/MOB: AC/DC, 110-240VAC to 56VDC, 250/450W, Length: 140m, Cable Type: RG-11, MANUF. Part# BELDEN 9292
• CNX-MOB: DC-DC Converter 12-2VDC to 48VDC, 480W/560W, Length: 30m, Cable Type: RG-6, MANUF. Part# BELDEN 1694A-2
• CNX-MOB: DC-DC Converter 12-2VDC to 48VDC, 480W/560W, Length: 75m, Cable Type: RG-11, MANUF. Part# BELDEN 7731A & 7731RW
• CNX-MOB: DC-DC Converter 12-2VDC to 48VDC, 480W/560W, Length: 55m, Cable Type: RG-11, MANUF. Part# BELDEN 9292
• CNX-MOB: DC-DC Converter 12-2VDC to 48VDC, 480W/560W, Length: 100m, Cable Type: LMR-400, MANUF. Part# LMR-400-FR*
• CNX-RACK-AC and DC – Embedded PSA, 56VDC output, Length: 190m, Cable Type: RG-11, MANUF. Part# BELDEN 7731A & 7731RW
• CNX-RACK-AC and DC – Embedded PSA, 56VDC output, Length: 140m, Cable Type: RG-11, MANUF. Part# BELDEN 9292
• CNX-RACK-AC and DC – Embedded PSA, 56VDC output, Length: 45m, Cable Type: RG-11, MANUF. Part# BELDEN 1525A
• CNX-RACK-AC and DC – Embedded PSA, 56VDC output, Length: 45m, Cable Type: RG-11, MANUF. Part# Amphenol T11TSFx77-LTV
• CNX-RACK-AC and DC – Embedded PSA, 56VDC output, Length: 250m, Cable Type: LMR400, MANUF. Part# LMR-400FR-Bulk
• CNX-RACK-AC and DC – Embedded PSA, 56VDC output, Length: 400m, Cable: LMR600, Connector: (TMS) Amphenol EZ-600-NMH-X
• Refer below for: OW11FM (Maritime), OW11HL (Fixed Land), OW11FV (Land-mobile/Vehicle)
• CNX-WIFI/MOBILITY: AC/DC, 110-240VAC to 56VDC, 450W, Length: 30m, Cable Type: RG-6, MANUF. Part# BELDEN 1694A-2
• CNX-WIFI/MOBILITY: AC/DC, 110-240VAC to 56VDC, 450W, Length: 60m, Cable Type: RG-11, MANUF. Part# BELDEN 9292
• CNX-WIFI/MOBILITY: AC/DC, 110-240VAC to 56VDC, 450W, Length: 85m, Cable Type: RG-11, MANUF. Part# BELDEN 7731A&7731RW
• CNX-MOB: DC-DC Converter 12-2VDC to 48VDC, 480W/560W, Length: 30m, Cable Type: RG-11, MANUF. Part# BELDEN 7731A & 7731RW
• CNX-MOB: DC-DC Converter 12-2VDC to 48VDC, 480W/560W, Length: 40m, Cable Type: LMR-400, MANUF. Part# LMR-400-FR*
• CNX-RACK-AC and DC – Embedded PSA, 56VDC output, Length: 60m, Cable Type: RG-11, MANUF. Part# BELDEN 9292
• CNX-RACK-AC and DC- Embedded PSA, 56VDC output, , Length: 85m, Cable Type: RG-11, MANUF. Part# BELDEN 7731A&7731RW
• CNX-RACK-AC and DC – Embedded PSA, 56VDC output, Length: 110m, Cable Type: LMR400, MANUF. Part# LMR-400-FR*
• CNX-RACK-AC and DC – Embedded PSA, 56VDC output, Length: 260m, Cable Type: LMR600, Connector: (TMS) Amphenol EZ-600-NMH-X
• EXTENDED LENGTH CABLES:
• Available upon request, once the Panel and CNX configuration are decided, please contact our office for calculations and recommendations.

SUPPORTED CONNECTORS FOR CABLES – ORDERING GUIDE

COAXIAL# / PART NUMBER / CONNECTOR / RECOMMENDED MAXIMUM LENGTH

• RG-6  /  Belden 1694A  /  UNC N-006AT-CP-0  /  60m(197ft)
• RG-6  /  D06AQBT600O21UBK2A  /  UNC N-006AT-CP-0  /  60m(197 ft)
• RG-11  /  011177T04BK401HN10R1  /  Holland SLCU-11Q  /  150m(492ft)
• RG-11  /  011WTBA950EO1UBKXA  /  Holland SLCU-11Q  /  140m(460ft)
• LMR400 (50 Ohm)  /  LMR-400-FR-BULK  /  (TMS) Amphenol EZ-400-NMH-X  /  230m(755ft)
• LMR600 (50 Ohm)  /  LMR600  /  (TMS) Amphenol EZ-600-NMH-X  /  400m(1312ft)
