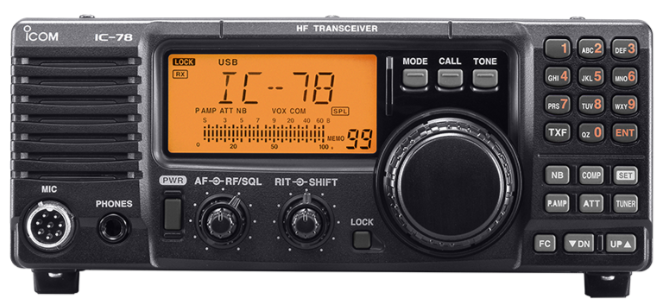

IC-78 Icom SSB HF Transceiver
Reliable HF Long Distance Communication
In this Pack:
- Transceiver Unit
- Hand microphone
- DC power cable
- Spare fuses
100 W Output Power in a Durable Body
Powerful 100 W output provides the talk power you need to reach distant locations. Its one-piece, die-cast aluminum construction provides stability even at high duty cycles.
Simple Operation with Easy-to-Read LCD
The IC-78 is equipped with a large, easy-to-read LCD screen.A minimum number of buttons and knobs provide direct function access without the need for a secondary key function.
Prompt Operation with Memory Channels
Operating frequencies can be saved as memory channels. Each memory channel can be named with up to eight characters in the name. Additionally, you can enter frequencies directly or use the VFO mode*.
* VFO mode is available, depending on the transceiver version.
Front Mounted Loud Speaker
With the speaker facing to the operator, you can clearly hear received audio during operation. The IC-78 provides more than 2 W audio output. Received voice can be heard in noisy environments.
Other Features
- Five user selectable IF filter widths
- Microphone Compressor increases average talk power
- VOX capability for hands-free operation
- RIT, Preamp and Attenuator functions
- Noise Blanker function reduces pulse type noise
- IF Shift for interference rejection
- CW mode and RTTY mode operation
- Scan function
- Built-in antenna tuner control circuit
- Data cloning between transceivers
- RF Gain and Squelch Control
- Hand microphone is supplied

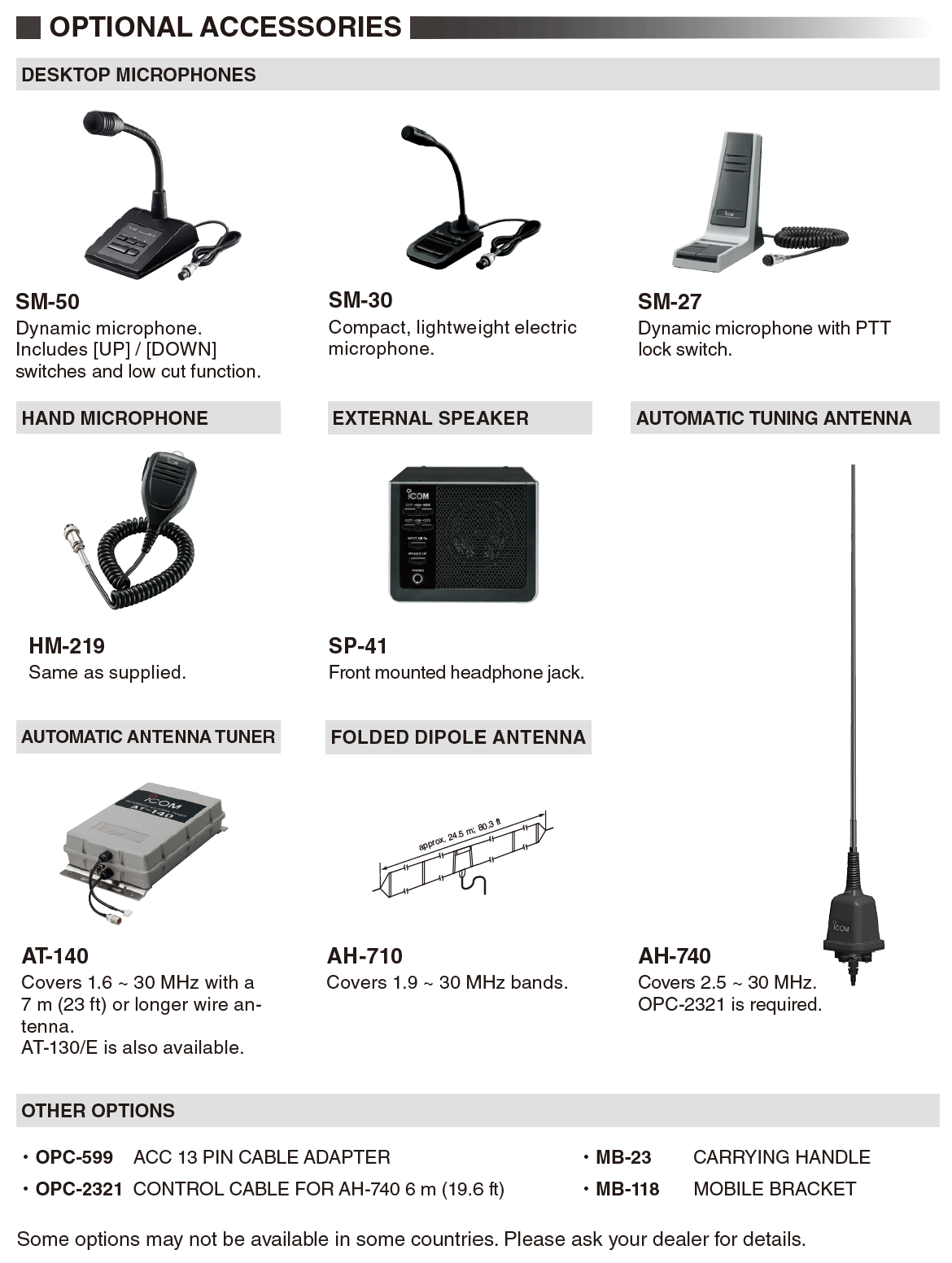

OPTIONS
Microphones
HM-219 hand microphone(the same as supplied)
SM-30 desktop microphone
SM-50 desktop microphone
Speaker
SP-41 external speaker
Antennas
AT-130 hf automatic antenna tuner
Frequency coverage: 1.6 MHz ~ 30 MHz
AH-4 HF + 50 MHz automatic antenna tuner To tune a long wire antenna for portable or mobile HF operation.
Input power rating: 120 W
AH-2b antenna element
A 2.5 m long antenna element for mobile operation with the AH-4.
Frequency coverage: 3.5 MHz ~ 28 MHz bands with the AH-4
AH-710 folded dipole antenna
AH-730 automatic antenna tuner
Input power rating: 150 W Maximum
AH-740 automatic tuning antenna
Frequency coverage with 1.54 m whip antenna:
2.5 MHz ~ 29.9999 MHz
MN-100 antenna matcher
Matcher with two 8 m antenna wires
MN-100 L antenna matcher
Matcher with a 15 m antenna wire
Cables
OPC-420 4-conductor shield cable
For the connection between transceiver and an
antenna tuner AT-130 or AH4.
Compatible with the control cable, that is supplied
with the AT-130 or AH-4.
Cable length: 10 m (32.8 ft)
OPC-599 adapter cable
13-pin, ACC connector to 7-pin + 8-pin ACC
connectors.
OPC-2321 control cable
To connect the AH-740
Approximately 6 m, (19.7 ft)
Others
MB-23 carrying handle
MB-118 mobile mounting bracket
NOTE# LLSome options may not be available in some countries. Ask your dealer for details.
| Frequency range | TX | 1.6 ~ 29.9999 MHz (Guaranteed: 0.5 ~ 29.9999) |
|---|---|---|
| RX | 0.03 ~ 29.9999 MHz | |
| Power supply requirement | 13.8 V DC ±15% (Negative ground) | |
| Dimensions (W×H×D: Projections not included) | 240 × 95 × 239 mm, 9.4 × 3.7 × 9.4 in | |
| Weight (Approximate) | 3.8 kg, 8.4 lb | |
| Current drain
(at 13.8 V DC) |
Rx Max. audio Stand by |
2.0 A 1.3 A |
| Tx Max. power | 21.0 A | |
| Sensitivity (at 10 dB) |
SSB, CW, RTTY | 0.16 μV (1.600 ~ 29.999999 MHz) (0.5 μV at 12 dB SINAD) |
| AM | 13 μV (0.5 ~ 1.599999 MHz) 2 μV (1.600 ~ 29.999999 MHz) |
|
| Selectivity | SSB, CW, RTTY | More than 2.1 kHz/–6 dB Less than 4.5 kHz/–60 dB |
| AM | More than 6.0 kHz/–6 dB Less than 20 kHz/–40 dB |
|
| Audio output powe (at 13.8 V DC) | More than 2.0 W at 10% distortion with an 8 Ω load | |
| Output power (PEP) (Output power differs depending on version) |
SSB, CW, RTTY | 2 ~ 100 W |
| AM | 2 ~ 35 W | |
All stated specifications are subject to change without notice or obligation.
