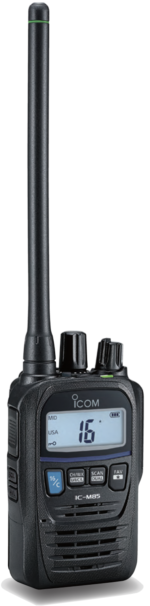

IC-M85UL Icom VHF, Handheld, Intrinsically Safe
IC-M85UL Icom VHF Transceiver, Intrinsically Safe
Ultra Compact Intrinsically Safe Radio with 5 Watt Power Output
In this Pack:
- Transceiver Unit
- BP-292UL, battery pack
- BC-123SA/SE*, AC adapter
- BC-227, desktop charger
- FA-SC58V, antenna
- MBB-3, Belt clip
- Hand strap
- * May differ, depending on transceiver version.
Features
- 5 W output power for hazardous locations approved by UL * Land mobile channels for the USA version: 2 W
- Intrinsically safe: Class I, Division 1, Groups C, D; Class II, Division 1, Groups E, F, G; Class III. T3C.
- Non-incendive: Class I, Division 2, Groups A, B, C, D
- ANSI/TIA-4950-B, ANSI/UL 121201 * When used with Icom BP-292UL battery pack * Ambient temperature: –20°C to +60°C
- Compact and lightweight commercial grade marine and land mobile hybrid radio
- Covering 136–174 MHz land mobile frequency, in addition to VHF marine channels
- 700 mW powerful audio provides clear communications
- Abundant Emergency Functions; Man Over Board, Man Down, and Lone Worker Alarms
- Easy switch between channel groups (Marine LMR) with a programmable multi-function button on the top panel
- IP67 and MIL-STD-810G rugged construction
- AquaQuake™ prevents audio degradation from a water-logged speaker 11 hours of long-lasting operating time (with BP-292UL, TX: RX: Standby = 5 : 5 : 90) IC-M85UL
- Optional speaker-microphone, HM-184UL
Frequency coverage TX RX 156.025–157.425 MHz 156.050–163.275 MHz 136.000–174.000 MHz INT, USA*, CAN, WX* channels (* Varies according to version) 100 LMR channels 16K0G3E (25 kHz) 11K0F3E (12.5 kHz) Type of emissions (Channel spacing) 7.2 V DC nominal Current drain (approximate) 1.5 A (at 5 W) 0.45 A 50 Ω –20 °C to +60 °C, –4 °F to +140 °F–30 °C to +60 °C, –22 °F to +140 °F 56 × 92 × 34.1 mm, 2.2 × 3.6 × 1.3 in (With BP-292UL) Weight (approximate) 285 g, 10.1 oz (with BP-292UL, FA-SC58V and MBB-3) TRANSMITTER Output power (at 7.2 V DC) 5/3/1 W 5/3/1 W Max. frequency deviation ±5.0 kHz ±5.0 kHz ±5.0 kHz (Wide) ±2.5 kHz (Narrow)–70 dBc typical Hum and noise 40 dB 40 dB (Wide) 34 dB (Narrow) 10% (at 60% deviation) 60–100% of maximum deviation RECEIVER Sensitivity (at 12 dB SINAD) 0.25 µV typical 70 dB typical 70 dB typical (Wide) 55 dB typical (Narrow) Spurious response 70 dB typical 40 dB 40 dB (Wide), 34 dB (Narrow) Audio output power Internal SP 700 mW typical (at 10% distortion with 12 Ω load) External SP 700 mW (at 10% distortion with 8 Ω load) Measurements made in accordance with TIA/EIA-603. All stated specifications are subject to change without notice or obligation. Applicable U.S. Military Specifications & IP Rating Standard MIL 810 G Method Procedure Low Pressure 500.5 I, II High Temperature 501.5 I, II Low Temperature 502.5 I, II Temperature Shock 503.5 I–C Solar Radiation 505.5 I Rain Blowing/Drip 506.5 I, III Humidity 507.5 II Salt Fog 509.5Dust Blowing 510.5 I Immersion 512.5 I Vibration 514.6 I Shock 516.6 I, IV Also meets equivalent MIL-STD-810-C, -D, -E and -F. Ingress Protection Standard Dust & Water IP67 (Dust-tight and waterproof protection) Adjacent channel selectivity G
