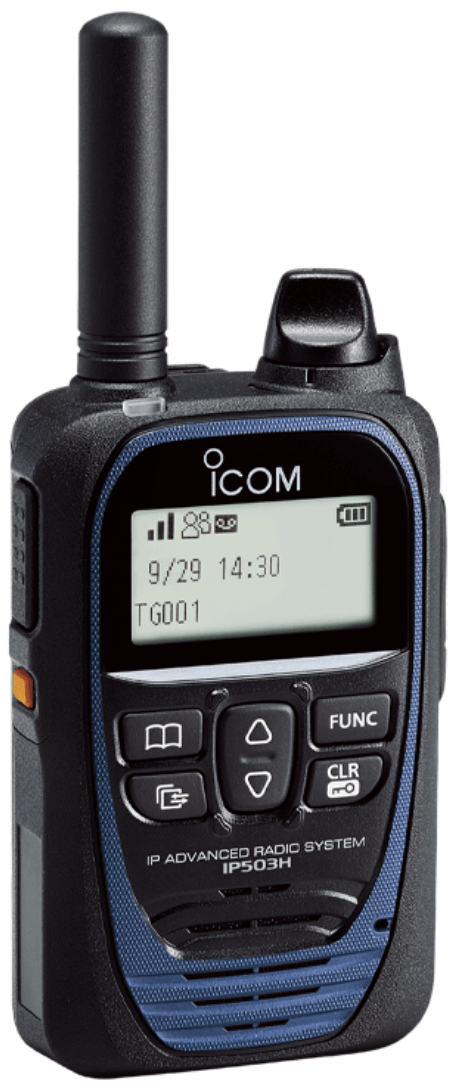

IP503H-LITE Icom IP Transceiver, Handheld, Multi-carrier LTE IP67
IP503H-LITE Icom IP Transceiver, Handheld, Multi-carrier LTE IP67
Powered by the Icom Partner SIM Card, offering a Multi-Carrier LTE Solution

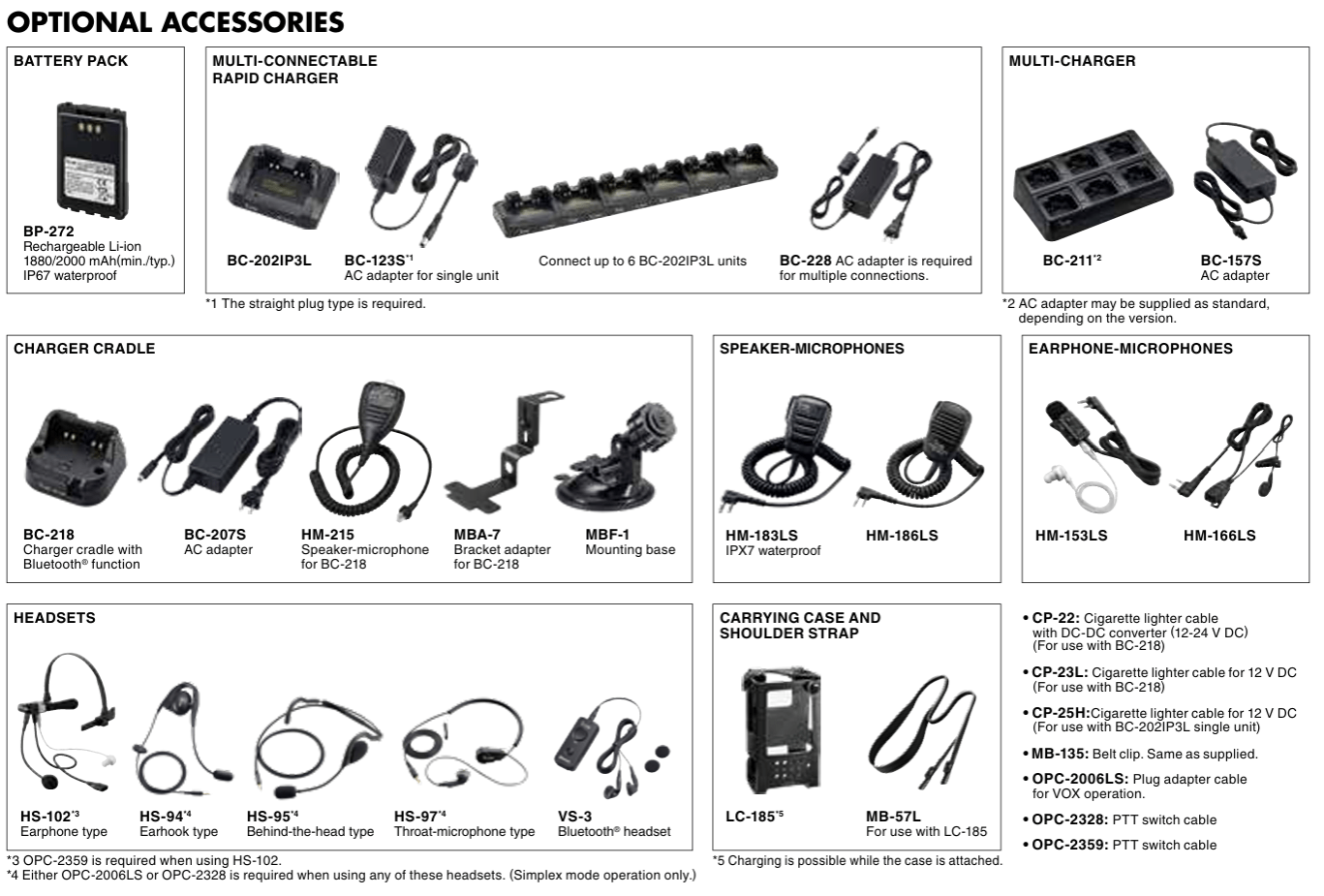

In This Pack:
- IP503H-LITE Transceiver Unit
- Battery pack, BP-272
- Belt clip, MB-135
- Antenna
- Hand Strap/Lanyard
(May differ, or not supplied, depending on version)

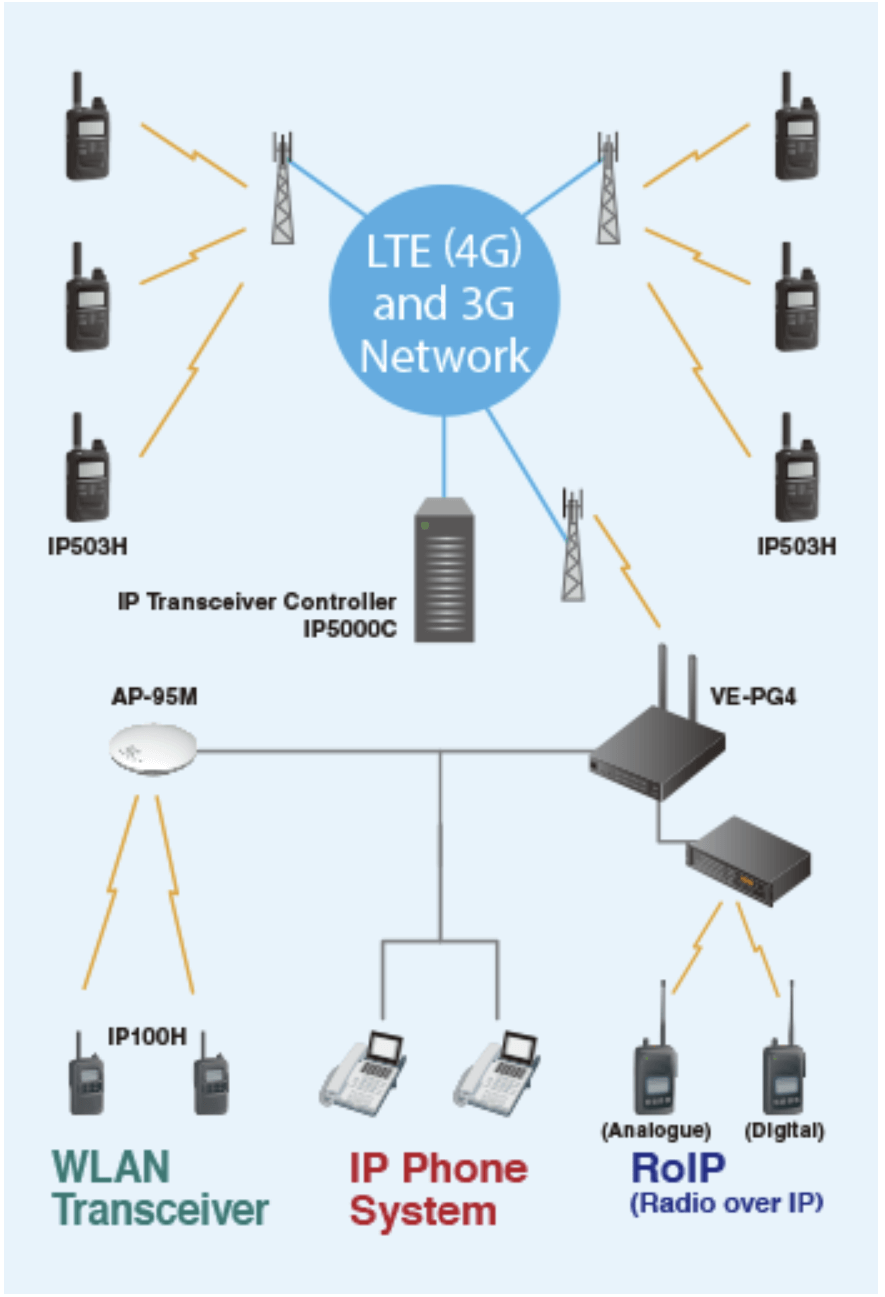

Instant Wide Area Coverage Over an LTE Network
It provides wide area communication using a cellular network.*
* Network coverage provided by a generally available data SIM card. Radio registration is required separately.
Simultaneous TalkListen Function for Full-Duplex Communication
The Simultaneous TalkListen function provides full-duplex one-to-many communication which users can talk and receive at the same time like a telephone style conversation.
Two different SIM cards can be installed. Switch between them as required.*
* Single standby only
Multiple User Communication
Multiple users in the call groups can initiate calls instantaneously.
Priority Interrupt Calling
You can break into an on-going call to transmit an important message.
Industry Leading Compact and Lightweight Design
IP67 Dust-Tight and Waterproof
900mW Powerful and Clear Audio
Other Features
- Individual, Group, Talkgroup, Multiplex Talkgroup and All calls*1
- Emergency button, Lone Worker and Man Down functions
- Vibration alert function notifies of incoming call
- Up to 500 memory address book(including Group, Individual, Talkgroup and Telephone lists)
- Voice message recording
- Built-in Bluetooth®*2. capability and GPS
*1 Depending on system configuration *2 Version without Bluetooth also available. Ask your Dealer for details.

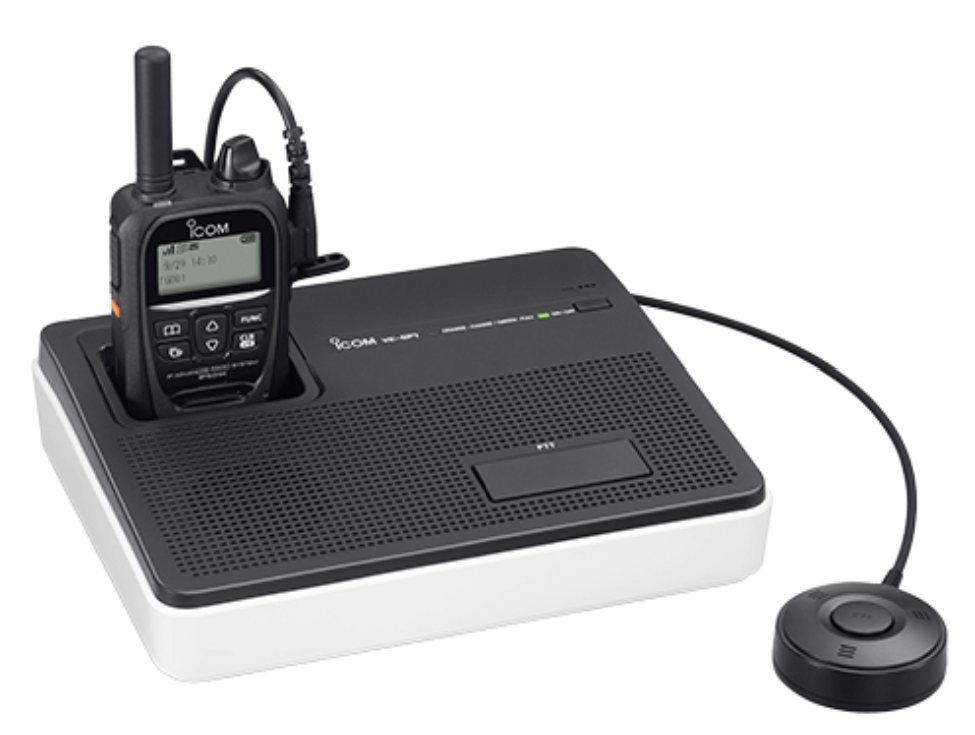

VE-SP1, Just Slot in the IP503H Lite and Start a Voice Conference
- Portable operation with LR6 (AA)×8 cells
- Built-in loudspeaker and high sensitivity microphone
- Charges the radio while using with the AC adapter
- Great as a teleworking type solution
- * The transceiver as in the image is not supplied.
Note for IP503H users
The IP503H Lite(front panel is blue) uses a generally available data SIM card and is controlled by the IP4000C system.
The IP503H Lite is not compatible with IP503H radios (black front panel) which use a closed network provided by custom Icom SIM card.
Management Features
- SYSLOG and SNMP
- Telnet and SSH
- Ping Test and Traceroute Test
- Abnormal condition monitoring, such as LAN port link-down and SIP server registration error
- Administrator password
- SNTP server
- Security slot
IP503H-LITE > GENERAL SPECS
| Network | EXP | LTE B1, B3, B7, B8, B20 W-CDMA B1, B8 |
|---|---|---|
| AUS | LTE B1, B3, B5, B7, B8, B28 W-CDMA B1, B5 |
|
| Dimensions (W × H × D; Projections not included) |
59 × 95 × 32 mm; 2.3 × 3.7 × 1.3 in (with BP-272) |
|
| Weight (approx.) | 240 g; 8.5 oz (with BP-272 and antenna) |
|
| Voice Codec | G.726 (32 kbps) | |
| AF output power (8 Ω at 10% distortion) |
Internal SP | More than 900mW |
| External SP | More than 200mW | |
| Operating time*1 (TX : RX : standby = 5 : 5 : 90) |
More than 17 hours (with BP-272) | |
| Bluetooth*2 | Ver 2.1 +EDR | |
| GPS | Built-in | |
| Operating temperature | –10 °C to +60 °C; +14 °F to +140 °F | |
| IP rating | IP67 (dust-tight and waterproof) IP55/54 (dust and water jet / water resistance) |
|
*1 Operating time may differ depending on operating environments. *2 Version without Bluetooth also available. Ask your Dealer for details.
All stated specifications are subject to change without notice or obligation.
Applicable U.S. Military Specifications
| Standard | ||
|---|---|---|
| Low Pressure | 500.5 | I, II |
| High Temperature | 501.5 | I, II |
| Low Temperature | 502.5 | I, II |
| Temperature Shock | 503.5 | I-C |
| Solar Radiation | 505.5 | I |
| Rain Blowing/Drip | 506.5 | I, III |
| Dust Blowing | 510.5 | I |
| Immersion | 512.5 | I |
| Vibration | 514.6 | I |
| Shock | 516.6 | I, IV |
Also meets equivalent MIL-STD-810 -C, -D, -E and -F.
