LMP-2804G-4XS-24-T Antaira Industrial Managed Gigabit Ethernet PoE+ Switch, EOT -40° to 75˚C
$13,963.40 Inc. GST
LMP-2804G-4XS-24-T Antaira Industrial Managed 10 Gigabit Ethernet PoE+ Switch, EOT: -40° to 75˚C
Short Description: 28-Port Industrial Managed Gigabit Ethernet PoE+ Switch- 24*10/100/1000T Gigabit Ethernet with IEEE 802.3at compliant PoE, 30W/port + 4*1G/2.5G/10G SFP+ Slots, 12~55VDC Power Input; EOT: -40~75C
Basics
This model supports a dual power input having a low voltage range (12~55VDC) and a built-in voltage booster, allowing the unit to give a full 48VDC PoE power for any PoE application.
Supporting the standard operating temperature model -40° to 75˚C also makes it the best solution for any harsh and extreme ambient weather environment applications, such as power/utility, transportation, water wastewater treatment plant, oil/gas, and security surveillance system industries.

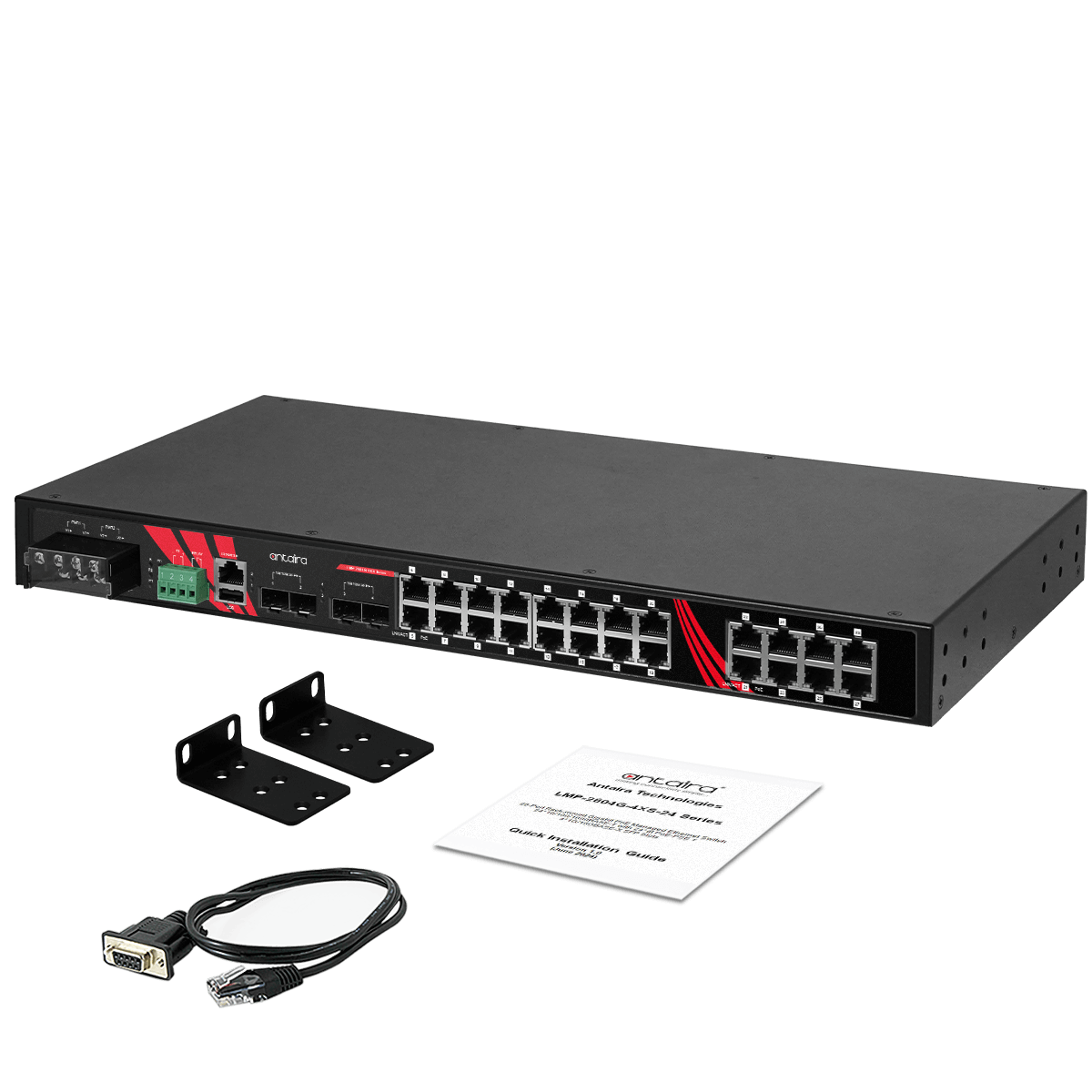

Included in this Pack
- LMP-2804G-4XS-24-T
- Rack Mounting Brackets and Screws
- RJ45 to DB9 Serial Console Cable
- Dust Cover Set
- Quick Installation Guide
Overview
Antaira Technologies’ LMP-2804G-4XS-24-T is a 28-port industrial gigabit PoE+ managed Ethernet switch features 24*10/100/1000T Gigabit Ethernet with IEEE 802.3at compliant PoE, 30W/port + 4*1G/2.5G/10G SFP+ Slots.
This makes the product ideal for applications that demand high density of port connectivity, wide bandwidth and long-distance communication.
LMP-2804G-4XS-24-T is a fully manageable Light Layer 3 Ethernet switch that is pre-loaded with a user-friendly web management console design. It supports the ring network redundancy function using the market’s open standard ITU-T G.8032 ERPS (Ethernet Ring Protection Switch) protocol that has a <50ms network recovery time.
The advanced network filtering and security functions, such as IGMP, VLAN, QoS, SNMP, port lock, RMON, Modbus TCP, and 802.1X/HTTPS/SSH/SSL increase determinism and improve network management for remote SCADA systems or control networks. The LMP-2804G-4XS-24-T is designed with IP30 rated 1U 19” rackmount.
Features
- Support 24*10/100/1000BASE-T Gigabit IEEE 802af/at Compliant PoE Ports (30W/Port)
- Support 4*1G/2.5G/10G SFP+ Slots
- ITU-T G.8032 Ethernet Ring Protection Switch (ERPS) Protocol
- IEEE 802.1D STP (Spanning Tree Protocol), IEEE 802.1w RSTP (Rapid Spanning Tree Protocol), IEEE 802.1s MSTP (Multiple Spanning Tree Protocol)
- Static Routes, OSPFv2/v3, RIPv2, RIPng, VRRPv2/v3
- SNMPv1/v2c/v3, RMON, Modbus TCP, and HTTP/HTTPS
- RADIUS, TACACS+, 802.1X Authentication
- ACL, IP Source Guard
- VLAN, QoS, and, SNMPv3
- IP30 Rugged Metal Case Design
- iPoE Budget Control
- Redundant Power Input
- Fanless Operation
- Power Reverse Polarity Protection
- High EFT and ESD Protection
- Operating Temperature: -40°C to 75°C
- 5-Year Warranty
- Harsh and extreme ambient weather environment applications, such as
- power/utility,
- transportation,
- water wastewater treatment plant,
- oil/gas, and
- security surveillance system industries.
Accessories
Antaira’s industrial 10 gigabit PoE switches are compliant with the Institute of Electrical Electronics Engineers’ (IEEE) code 802.3at/af and have 30 Watts per port. Antaira’s 10 Gigabit PoE managed Ethernet switches have dual-rate (1G/10G) SFP+ slots for fiber connection. These 10 Gigabit options are ideal for high bandwidth support to applications requiring greater speeds of connectivity. These Ethernet switches are pre-loaded with the standard Light Layer 3 network management software. Our 10 gigabit PoE switches are built for extreme and demanding operating environments, such as manufacturing facilities, outdoor locations, mining and gas, power facilities, and similar environments. Browse our products today and reach out to us if you have any questions.
