All-in-one device for UAV BVLOS connectivity/beaconing

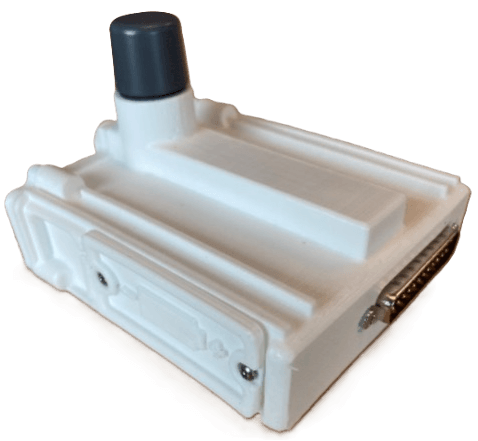

QuickNav is a low-weight, all-in-one satellite command and control (C2) access device.
When attached atop an Uncrewed Aircraft Vessel (UAV), this advanced solution on delivers a low-latency, full duplex data connection on to any address, with airtime through a commercial gateway or the United States Space Force (USSF) Enhanced Mobile Satellite Service (EMSS).
In this Pack:
- NAL QuickNAV Unit
- Installation Guide and User Manual
QuickLynk, the router-based, unrestricted digital internetworking connectivity solution, connects to a predefined IP address, enabling a near real-me end-to-end IP connection between the host application and QuickNav.
With QuickNav and QuickLynk, achieve greater operational outcomes through protocol independence and enhanced call connection, quality, reliability, and uptime.
Features
- Use multiple QuickNavs for separate or common IP addresses
- Pole-to-pole, Arctic coverage and unlimited range
- Leverages low-earth orbit satellites (LEO) for 1-2s latency with good view of the sky
- Fast 8-13s initial satellite connections
- Secure with AES256 encryption and VPN or NIPRNet networking
- Low size, weight, and power (SWaP) device

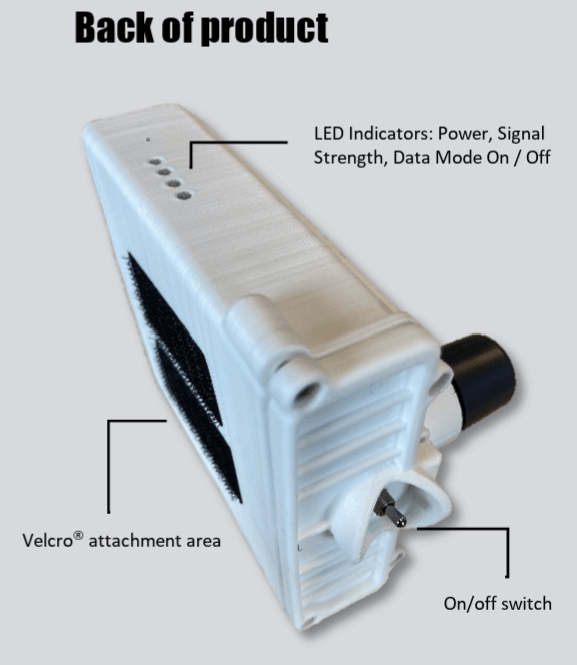

- Easy mounting with for example: Velcro® or Sikaflex®
Applications
- Commercial
- Government / Military
- Surveillance and Beaconing
- Industrial Inspections
Compatible Airtime Service:
QuickLynk
QUICKNAV Specifications(refer to user manual for full specifications)
- Dimensions (L x W x H): 107 mm x 89 mm x 65 mm (4.2” x 3.5” x 2.5”)
- Weight: 8.3oz with internal batteries
- Temperature: -30°C to +70°C (-22°F to +158°F)
- Power: 2x disposable CR123A batteries or external 4-32 VDC power

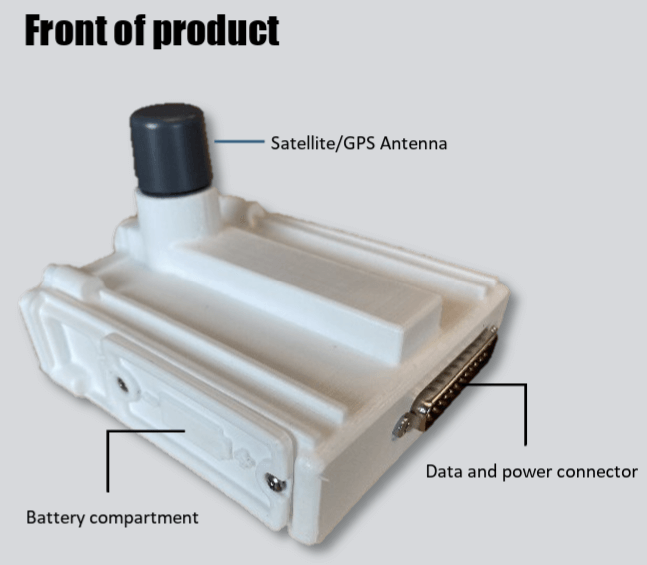

- Integrated satellite and GPS antennas
- DB25 connector for data and power
- IP67 rating (weather resistant)
QuickNAV Specifications(refer to user manual for full specifications)
- Dimensions (L x W x H): 107 mm x 89 mm x 65 mm (4.2” x 3.5” x 2.5”)
- Weight: 8.3oz with internal batteries
- Temperature: -30°C to +70°C (-22°F to +158°F)
- Power: 2x disposable CR123A batteries or external 4-32 VDC power
- Integrated satellite and GPS antennas
- DB25 connector for data and power
- IP67 rating (weather resistant)
EXPORT COMPLIANCE
QuickNAV is controlled by the export laws and regulations of the United States of America (U.S.). It is the policy of NAL Research to fully comply with all U.S. export and economic sanction laws and regulations. The export of NAL Research products, services, hardware, software, and technology must be made only in accordance with the laws, regulations, and licensing requirements of the U.S. government. NAL Research customers must also comply with these laws and regulations. Failure to comply can result in the imposition of fines and penalties, the loss of export privileges, and termination of your contractual agreements with NAL Research. The export and re-export of NAL Research products and services are subject to regulation by the Export Administration Regulations (15 CFR 730-744), as administered by the U.S. Department of Commerce, Bureau of Industry and Security (BIS). See: https://www.bis.gov/ for further information on BIS and the Export Administration Regulations (EAR). Additional export restrictions are administered by the U.S. Department of the Treasury’s Office of Foreign Asset Controls (OFAC). See: http://www.ustreas.gov/ofac for further information on OFAC and its requirements.
