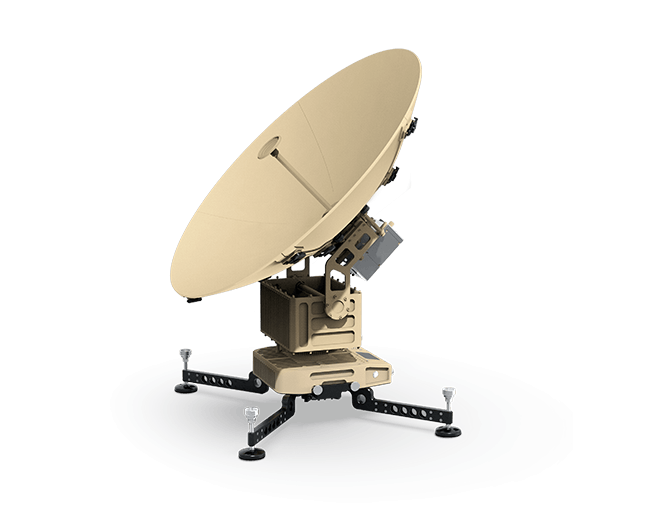

LP85 Intellian VSAT, Ku-Band, 85cm Auto-Acquire, MIL, ManPack Portable
LP85 Intellian LP85 VSAT, Ku-Band, 85cm Auto-Acquire, MIL, ManPack Portable
A Rugged, Lightweight, Man Portable, Quick Deployable Satellite Land Terminal
Lightweight, man portable, flyaway antenna with a 1m reflector.

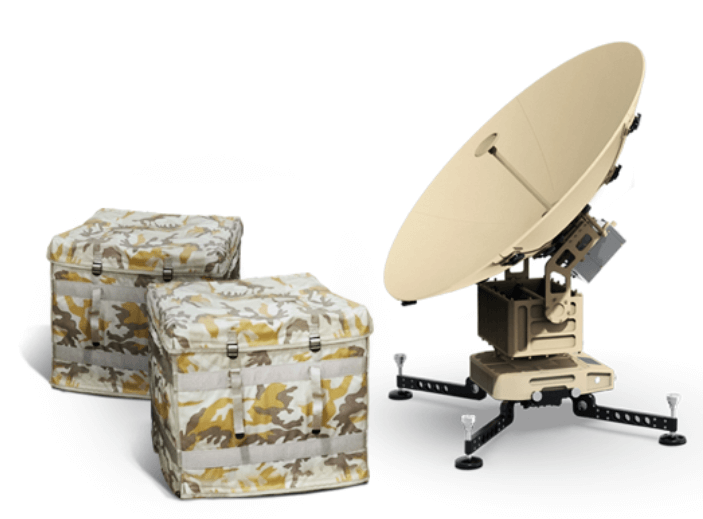

Quick to deploy in under five minutes. Packed compact enough to fit in two backpacks for ease of deployment to theatre with automatic satellite acquisition to find the required satellite quickly and efficiently.
Designed for rapid deployment of high speed satellite communication networks for use in:
- Defense,
- Disaster Recovery,
- Homeland Security,
- Law Enforcement,
- Emergency Response,
- Media,
- Telemedicine,
- Insurance,
- Remote office,
- Energy and Mining
FEATURES:
• Auto Acquire Antenna
• Automatic Acquisition and Tracking 2-axis motorized pedestal
• Quick Deploy and Commissioning
• Fail-Safe Operation with Manual Pointing
• Reflector Optimized for Both Ku-and Ka-Band
• Ruggedized Lightweight Structure
• Remote Control via Web-based Smart User Interface
• Man-Portable Package & Airline Checkable
Need Military specialized satellite communications products?
Our knowledgeable team can help you find the best connectivity solution and application.
Compact dual-band, dual-pol solution
- Uses Ka-band for high volume/traffic and Ku-band for coverage gaps:
– electronically seamless switch between services to maximize bandwidth and network access
– Uninterrupted by bad weather using Ku-band - Compact form factor with single center feed design and Ka-band transceiver integration for simpler RF design
- Electronically switch function for Ku-Ka band switching and co & cross polarization switching with electrical RF switch.
Future proof: multi-orbit tracking
- Support on any commercial Ku-band and Ka-band operation provided predominantly by GEO satellites
- Dual antenna installation support for NGSO make-before-break HOs
- Supports wide Ka-band feed (2.5 GHz bandwidth) covering the MEO constellation
- GEO & MEO tracking system (program tracking and conical scanning)
