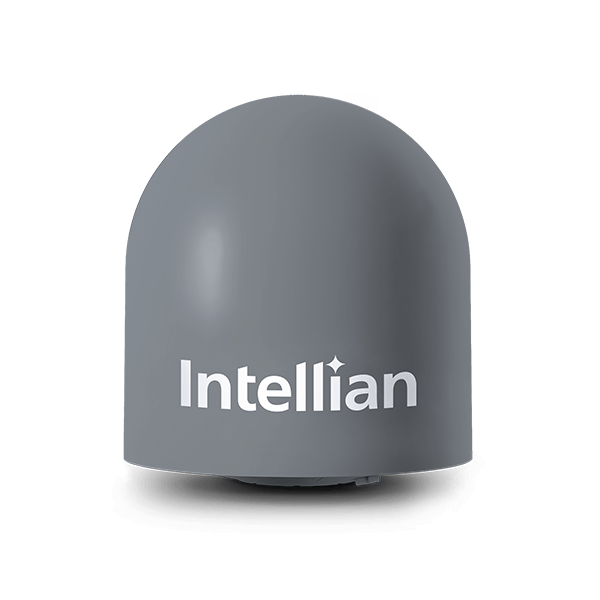

v100PM Intellian VSAT, Ku to Ka-Band Convertible , MILSPEC, Maritime
A military specification Ku- to Ka-band convertible terminal
The Intellian v100PM is specifically designed for use in military applications and provides an easy upgrade path from a Ku-band to a Ka-band system.
The v100PM is fully certified and compliant with MIL-STD-461 for EMI/RFI and MIL-STD-167 for shock and vibration.
With its industry leading vertical isolation design, this antenna represents the most advanced design for ruggedness and extreme reliability.
The v100PM is purpose built to the exacting standards of the Military and Government user, while maintaining the benefits of a Commercial Off The Shelf (COTS) product line including superior usability.
Designed for the Military Grade ET & Regulation Compliance
- EMI/EMC : MIL-STD-461F
- Vibration : MIL-STD-167-1A
- Meet ESV Licensing, FCC, R&TTE Directives, Res EN60945, EN60950, DNV2.4 Class C
Our MIL Specialists are here to help
Need Military specialized satellite communications products?
Our knowledgeable team can help you find the best connectivity solution for your business.
Compact dual-band, dual-pol solution
- Uses Ka-band for high volume/traffic and Ku-band for coverage gaps:
– electronically seamless switch between services to maximize bandwidth and network access
– Uninterrupted by bad weather using Ku-band - Compact form factor with single center feed design and Ka-band transceiver integration for simpler RF design
- Electronically switch function for Ku-Ka band switching and co & cross polarization switching with electrical RF switch.
Future proof: multi-orbit tracking
- Support on any commercial Ku-band and Ka-band operation provided predominantly by GEO satellites
- Dual antenna installation support for NGSO make-before-break HOs
- Supports wide Ka-band feed (2.5 GHz bandwidth) covering the MEO constellation
- GEO & MEO tracking system (program tracking and conical scanning)
