MCD-4800-9450 MCD Explorer 9450 BGAN Portable
MCD-4800-9450 Explorer 9450 BGAN Portable
Multiple Power Options:
- External power: 12V DC and 90 to 264V AC
- Detachable batteries: (2 x 98 Wh which can be carried in commercial airplanes)
- Hot-swap function: swaps the batteries without interruption for endless off grid operation
- Battery Protect: disconnects the battery before it has insufficient power left to crank the engine, (using a cigarette lighter cable)

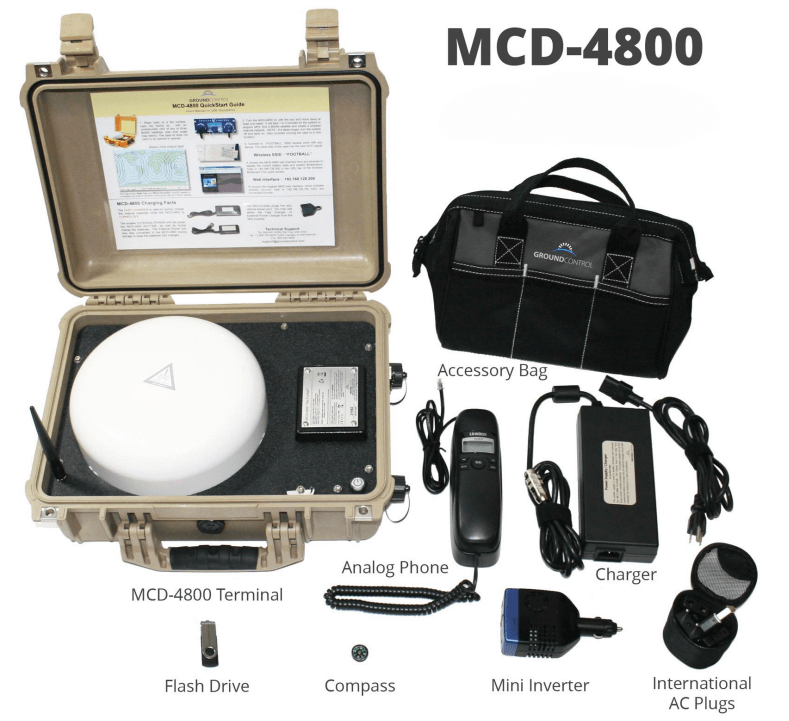

IN THE BOX:

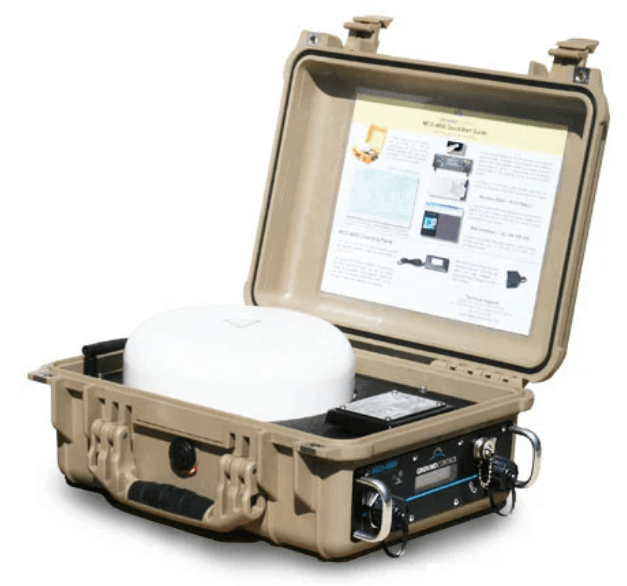

- MCD-4800 terminal flyaway case
- Hughes 9450TW Terminal
- AC/DC power supply charger
- A standard corded analog phone
- Mini-inverter for running off a vehicle power port
- Laminated Quickstart guide
- International plugs U.S., U.K., European, Australian, China, N. Europe
- Miniature compass, to help in finding obstacles to the satellite
- USB flash drive with user manuals, mobile status gadget, software
- Carry bag to hold contents of system components.
MCD-4800-9450
- Terminal: Hughes 9450TW terminal
- Terminal Capability: Internet, email, phone, fax, SMS, VoIP, FTP, Video Streaming, VPN, private networking options available
- Data / Internet Speeds (Standard IP): Up to 464Kbps (Rx) x 448Kbps (Tx). Class-2
- Streaming Services: 32Kbps, 64Kbps, 128Kbps
- Antenna Type – Class 11
- Global Service with Viasat Go-anywhere Pro and IoT Pro service provided by Ground Control
- BGAN Rx/Tx Frequencies: L-band, Rx @ 1525.0-1559.0MHz, Tx @ 1626.5-1660.5MHz
- EIRP: 15.1dBW
- Network: DHCP, NAT, public-static IPs available
- Firewall: At teleport – Whitelist and blacklist supported free

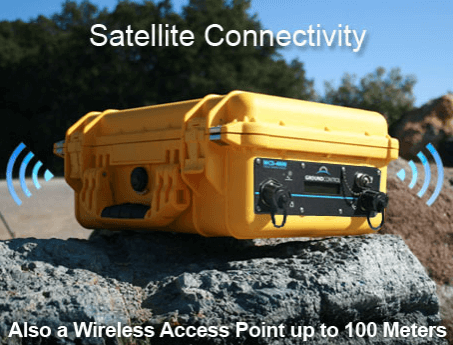

- Wireless LAN: 802.11b/g/n, up to 100 meters range, up to 11 concurrent wireless connections
- Wireless Security: WPA2 security, MAC filtering options for up to 10 devices
- External Ports: 1 x RJ45 LAN / PoE, 1 x RJ11 Phone, 1 x AC/DC external power, optional 3 x RJ11 for Fax group support
- Case Dimensions (LxWxH): 17″ x 13.75″ x 6.75″ (432 x 349 x 171 mm)
- Weight: 25lbs 4.3 oz (11.46kg)
- Battery Life: Up to five hours normal use
Brand
MCD
IN THE BOX
- MCD-4800 terminal flyaway case
- AC/DC power supply charger
- A standard corded analog phone
- Mini-inverter for running off a vehicle power port
- Laminated Quickstart guide
- International plugs U.S., U.K., European, Australian, China, N. Europe
- Miniature compass, to help in finding obstacles to the satellite
- USB flash drive with user manuals, mobile status gadget, software
- Carry bag to hold contents of system components.
