MCD-ML-C700 Thales MissionLINK Certus C700 Portable, Land, Maritime

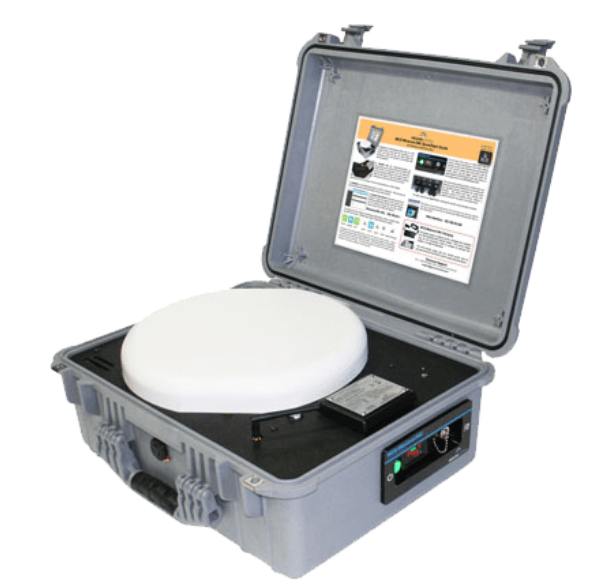

The MCD-MissionLINK is a portable, easy to operate, auto-pointing Certus satellite terminal which provides a powerful Wi-Fi hotspot in any environment. No pointing, no setup, just place the weather-proof case on the ground, boat deck or any surface with a clear view of the sky, then simply turn it on and close the lid.
MCD-ML-C700 Iridium Certus MissionLINK Land, Maritime, Portable
The MCD-MissionLINK case is designed to operate with the case lid closed. This allows it a waterproof rating of IP66 (powerful water jets from any direction).
The MCD-MissionLINK requires no user training to operate. Like all of our MCD products, simply place the ‘closed’ weather-tight sealed case on the ground or on a moving vehicle/platform under an open sky, rain or shine, and turn it on – no pointing necessary – and with the case lid closed.
The terminal connects with the Iridium Certus satellite network with speeds of 700Kbps and then broadcasts a Wi-Fi hotspot (up to 300 metres – 1,000 feet) for up to 12 devices to connect to. It runs for about five hours on its internal battery. This portable case uses the new Thales MissionLINK TERMINAL integrated with our proprietary mobile electronics for a ruggedized, self-contained, in-field, user-friendly worldwide communications solution.
FEATURES
- Easy to set up and use. Online within one minute.
- 100% Global satellite internet connectivity on the Iridium Certus network.
- Broadband speeds of up to 700 Kbps.
- Wi-Fi hotspot up to 300 metres (1,000 feet).
- Internet, email, voice and SMS messaging services.
- Housed in a portable, ruggedized, waterproof case.
- Operates in extreme conditions. Case does not need to be opened to operate.
- Operates stationary or in-motion, on land, or open ocean.
- Up to 6-hour battery life for normal use.
- No pointing or aiming… Simply turn the unit on under an open sky.
- Does not require user interaction. No software to run. Establishes AP “Hotspot” automatically.
- Connect up to 12 wireless devices. WiFi WPA2 Security & MAC address whitelisting.
- Compact case size – 52.5 x 43.7 x 21.3 cm (20.66″ x 17.20″ x 8.40″).

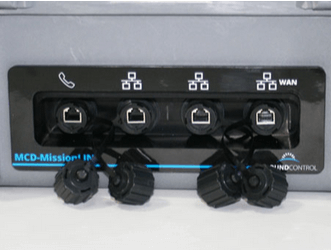

- External all weather Ethernet (RJ-45) and Phone (RJ-11) connection ports.
- External ports allow for hard-wired waterproof Ethernet and phone connections to any device.
- May be plugged into a vehicle 12V power port for continuous operation or charging.
- Includes standard analogue phone. The RJ-14 jack has two separate phone lines.
- No rain fade – Operates in heavy rain.
Built for Extreme Environments
The MCD-MissionLINK is enclosed in a watertight hardened plastic Pelican case that is proven to take a beating and keep out the elements. Full operation of the terminal can be done with the case lid closed, so it operates in heavy rain or in sloshing water environments.
External ports are inset to avoid breakage with impacts. With an IP rating of IP66, the terminal is dustproof and can take high-pressure water jets from any direction. Besides the onboard cooling fan, there are no moving parts of this system. Cold or hot weather? The MCD-MissionLINK operates from below -30°C to +55°C (-22°F to 131°F).
Brand
Thales
MCD-ML-C700
integrates the Thales MissionLINK Certus C700 Terminal into in a ruggedized Pelican 1450 case (flyaway case) with Ground Control engineered electronics and software.

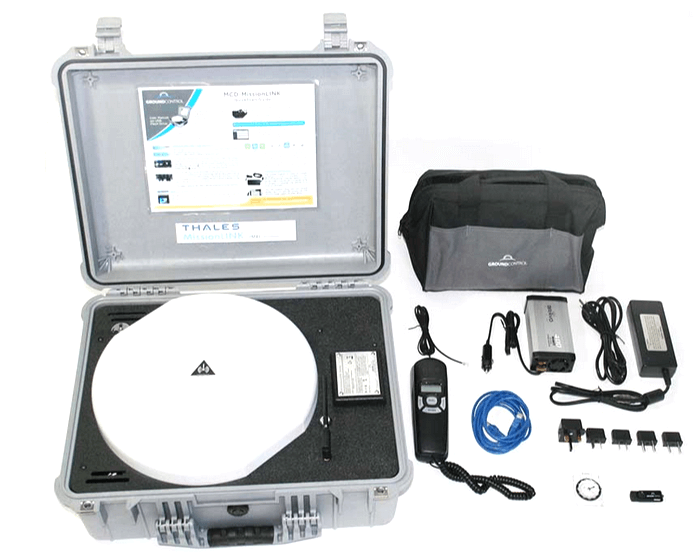

- MCD-MissionLINK Flyaway Portable Case
- AC/DC power supply (110/240 VAC)
- Standard analog phone
- Mini DC inverter for running off vehicle power
- AC plugs for U.S., U.K., EU, AU, China, N. Europe
- Ethernet cable – 10′ feet / 3 metres
- Compass
- USB flash drive with user manuals
- Carry bag to hold accessories
