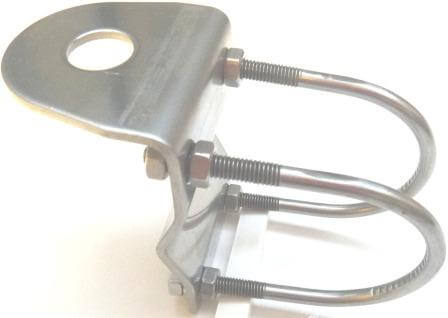

MOUNT-BM-50-KIT STARPAK Iridium Bull Bar Mount, Stainless Steel, suits 30-50mm pipe, for any whip antenna
MOUNT-BM-50-KIT Mount, 50mm Bull Bar KIT, 15pce Black Passivated Stainless Steel for any Antenna
Suitable for all Aluminum or Steel 30 to 50mm Bull Bar applications
Compatible with all STARPAK-61R series HD
Suitable also for any other Antenna requiring 16mm(0.62in) mounting hole
$31.90 Inc. GST
MOUNT-BM-50-KIT
STARPAK-BM-50-KIT Mount, 50mm Bull Bar KIT
Heavy Duty Fixed mounting on Land Vehicles, Buses, and Heavy Equipment.
Suitable for all extreme environments and rough terrain.
Mounting Profile
Suitable for 30 to 50mm Bull Bar or Pipe
STARPAK-BM-50-KIT
1x Drilled Angle Bracket
2x U Bolts
4x M6 Spring Washer
4x M6 Nuts
4x Nylon Lock Nuts
Bracket – 316 Stainless Steel
Bracket Outside Dia: 50mm(2.0in)
Inside Dia: 16mm(0.62in)
2x Lower “U Bolt” Holes Dia: 6.0mm(0.23in)
2x Upper “U Bolt” Holes Dia: 6.0mm(0.23in)
Size: H 85mm(3.33in) x W 50mm(2.0in) W,
Inside of Pipe to Inside of Bracket: 15mm(0.6in)
Thickness: 2.8mm(0.011in)
U Bolts – 316 Stainless Steel
Shape of Bend: Semi-Round
Width between legs inside: 54mm(2.1in)
Diameter of Leg: 6mm(0.23in)
Length of Leg to Inside top of bend: 72.5(2.8in)
length of Thread: 31mm(1.2in)
Thread Type: M6
Nuts and Washers – 316 Stainless Steel
4x 1/4 Spring Washer
4x M6 Hex Nut
4x M6 Nylon Lock Hex Nut
Total Kit Weight. 214g(7.5oz)
Brand
Starpak
Whats in the Box? MOUNT-BM-50-KIT
1x Drilled Custom Angle Bracket
2x U Bolts
4x Nylon Lock Nuts
