MOUNT-MTR2-50-KIT STARPAK Iridium Bull Bar Mount KIT, Stainless Steel, suits 30-50mm pipe, for any low profile antenna
MOUNT-MTR2-50-KIT Mount, 50mm Bull Bar KIT, Black Passivated Stainless Steel for all STARPAK-G7 Satellite Antenna
Suitable for all Aluminum or Steel 30 to 50mm Diameter Bull Bar applications
Passivated Stainless Steel Mounting bracket for more corrosion resistance
Compatible with all STARPAK-G7 Antenna Series
$81.40 Inc. GST
MOUNT-MTR2-50-KIT Mount, 50mm Bull Bar KIT
Heavy Duty Fixed mounting on Land Vehicles, Buses, and Heavy Equipment.
Suitable for all extreme environments and rough terrain.
Mounting Profile
30 to 50mm Bull Bar or Pipe
This Kit Includes the following:

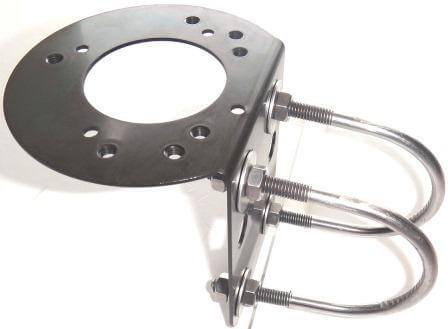

1x Drilled and Threaded Custom Angle Bracket
2x U Bolts
8x Flat Washers
4x M6 Spring Washer
4x M6 Nuts
4x Nylon Lock Nuts
STARPAK-MTR2-50-KIT
1x Drilled and Threaded Angle Bracket
2x U Bolts
8x Flat Washers
4x M6 Spring Washer
4x M6 Nuts
4x Nylon Lock Nuts
Bracket – 316 Stainless Steel – Black Passivated
Bracket Outside Dia: 88.8mm(3.5in)
Inside Dia: 42mm(1.6in)
4x Lower “U Bolt” Holes Dia: 15.8mm(0.6in)
2x Upper Holes: 11.6mm(0.45in)
Size: H 95.8mm(3.77in) x W 66mm(2.6in) W,
Inside of Pipe to Inside of Bracket: 15mm(0.6in)
Thickness: 1.43mm(0.057in)
U Bolts – 316 Stainless Steel
Shape of Bend: Semi-Round
Width between legs inside: 54mm(2.1in)
Diameter of Leg: 6mm(0.23in)
Length of Leg to Inside top of bend: 72.5(2.8in)
length of Thread: 31mm(1.2in)
Thread Type: M6
Nuts and Washers – 316 Stainless Steel
4x 1/4 x 3/4in Flat Washer
4x 1/4 x 1in Flat Washer
4x 1/4 Spring Washer
4x M6 Hex Nut
4x M6 Nylon Lock Hex Nut
Total Kit Weight. 218g(7.6oz)
Brand
Starpak
Whats in the Box? MOUNT-MTR2-50-KIT
This 23piece KIT includes the following:
1x Drilled and Threaded Custom Angle Bracket
2x U Bolts
8x Flat Washers
4x M6 Spring Washer
4x M6 Nuts
4x Nylon Lock Nuts
