OS-OW11FFG-CNX-RACK-DA-450A Intellian OneWeb OW11FM DUAL Flat Panel, Enterprise Mitigation with 19in Rack Mount CNX, 450W AC PSA (Maritime)

OS-OW11FFG-CNX-RACK-DA-450A Intellian OneWeb OW11FM DUAL Flat Panel, Enterprise Mitigation with 19in Rack Mount CNX, 450W AC PSA (Maritime)

The OW11FM delivers high-speed connectivity and reliability for business critical and operational communications onboard.

Designed with increased G/T performance, the OW11FM is the only Flat Panel UT that can ensure SLA and CIR commitments are achieved for maritime customers.

The OW11FM Enterprise Flat Panel for Maritime is Intellian’s leading user terminal, delivering enterprise-grade connectivity at sea. Aerodynamic, with a low profile, it is optimized for maritime applications.

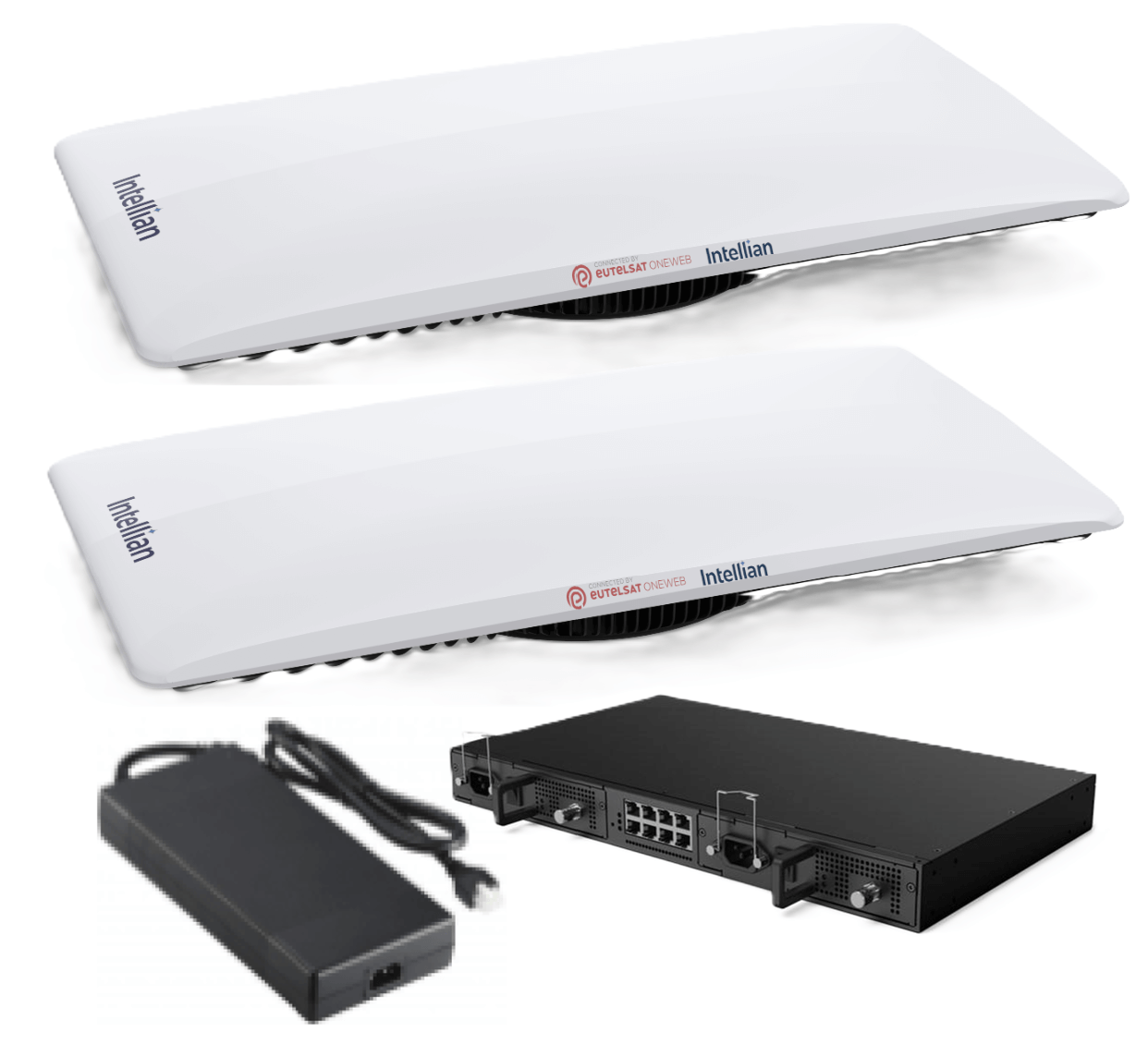

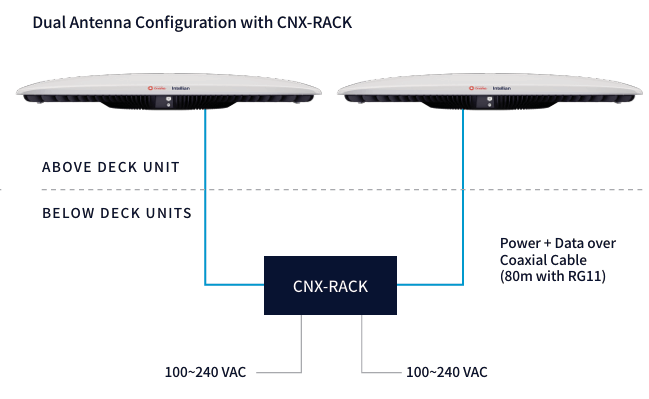

This Maritime Blockage Mitigation System Package comprises 3-parts:

• 2(two) packs of  part# OW11FM (Enterprise Flat Panel Kits), and
• 1(one) pack of part# PP-T2C0 (CNX-RACK-AC Kit) with 450W AC PSA

OW11Fx Introduction

• The OW11FM is an electronically scanned array (ESA) user terminal (UT) which can be operated in the Eutelsat OneWeb low earth orbit (LEO) satellite constellation.
• The Eutelsat OneWeb communications network is comprised of terrestrial gateways positioned around the globe communicating with Eutelsat
  OneWeb user terminals.
• A radio link to the satellites is established using the UT operating in the Ku-band.
• The Enterprise series consists of three product variants, the OW11FL (land fixed), the OW11FM (maritime), and the OW11FV (land mobile).
• The UTs provide network and internet access via the Eutelsat OneWeb network

OW11Fx Features

• Full-duplex active electronically scanned array.
• Field-of-view: ±70° Elevation from zenith, 360° azimuth.
• Receive nominal Gain-over-Temperature (G/T): 10.7 dB/K at boresight.
• Transmit Effective Isotropic Radiated Power (EIRP) supports Eutelsat OneWeb’s dual carrier requirement(+36.6 dBW).
• Dual GNSS receivers provide differential GNSS location to support automated true north calibration and highly accurate timing reference.
• The KIM (kinetic inertial module) provides tilt measurement to aid in installation, as well as roll, pitch and yaw data to support mobility. The KIM is comprised of two modules (IMX and GPX) which jointly function as the Inertial Navigation System. The KIM provides position, velocity and acceleration information to the User Terminal. – This feature aids in the installation of the OW11Fx series as well as supports mobility use cases for the OW11FM and OW11FV.
• Efficient enclosure profile for aesthetics as well as functional rain shedding radome.
• The CNX feeds power and data to the ODU over a single IFL coax cable and provides data interface to the user. Intellian offers multiple CNX variants to support the varying requirements across multiple use cases and applications.
• The intuitive, user-friendly Intellian Mobile Application streamlines installation, maintenance, and troubleshooting.

Paired with the CNX below deck unit (BDU), the OW11FM delivers high reliability and performance for maritime markets including:

• Merchant Shipping, Cruise Ships,
• Superyachts, Ferries,
• Oil and Gas Platforms,
• Coast Guard, Navy Vessels and Government

WHATS IN THE BOX – OS-OW11FFG-CNX-RACK-DA-450A

Package 1 of 3 – OW11FM (box size = 1100 x 650 x 330mm)

• OW11FM Antenna Unit
• QIG(Quick Installation Guide – OW11FM Variant Specific
• Coax Cable (RG6), F-Type, for UT Power & Data, 5m( for testing purposes only)
• RF Hazard Sticker, Radiation Safety Distance Label
• Adjustable Mount Adapter, 60mm Pole Mount Adapter (included with OWFL Land series ONLY)
• 8pcs Spring washer_M6, 8pcs Flat washer_M6, 8pcs Hex bolt_M6_12 for Mount Adapter (included with OWFL Land series ONLY)
• Grounding Braid Kit, Flexible with 4pcs Hex-S Bolt_SF_M6 (included with OWFL Land series ONLY)

Package 2 of 3 – OW11FM (box size = 1100 x 650 x 330mm)

• OW11FM Antenna Unit
• QIG(Quick Installation Guide – OW11FM Variant Specific
• Coax Cable (RG6), F-Type, for UT Power & Data, 5m( for testing purposes only)
• RF Hazard Sticker, Radiation Safety Distance Label
• Adjustable Mount Adapter, 60mm Pole Mount Adapter (included with OWFL Land series ONLY)
• 8pcs Spring washer_M6, 8pcs Flat washer_M6, 8pcs Hex bolt_M6_12 for Mount Adapter (included with OWFL Land series ONLY)
• Grounding Braid Kit, Flexible with 4pcs Hex-S Bolt_SF_M6 (included with OWFL Land series ONLY)

Pack# 3 of 3 – IDU PACKAGE – part# PP-T2C0

• CNX-RACK-AC Unit
• 1pce WiFi Dongle
• 1pce Ethernet cable (RJ45), 1.0m
• 1pce AC-DC 450W PSA, 110-240VAC
• 1pce AC Power Cord EU (CEEE7/7), 220V, European AC Cord, 1.5m
• 1pce AC Power Cord NA (NEMA 5-15P), 110V, North American AC Cord, 1.5m
• 2pcs Ancle Bracket (to retrofit CNX-RACK into 19in Rack Mount)
• 8pcs M4 x 6mm Pan Head Retaining Screws, with 8pcs Spring and 8pcs Flat Washers (for securing Angle Brackets to CNX-RACK Unit)
• Documentation Pack, QIG(Quick Installation Guide)
• Package size: (569 x 429 x 310)

Requirement Specification Maritime Profile – OW11FM

The Enterprise UT (OW11FM) shall support the following dynamic profile for marine vessels operating in moderate to rough sea conditions, while maintaining no more than 0.7deg motion induced beam pointing error:

Maritime Profile – Maritime Class A Dynamics
Angular Rate (deg/s): 14.0 +/- 3.0 (1-sigma)
Angular Acceleration (deg/s^2): 75.0 +/- TBD (1-sigma)
Translational Acceleration (m/sec^2): 4.0 +/- 1.0 (1-sigma).                                                                                                                                                                      The UT mobility system shall compensate for rotational motion on each axis (roll, pitch, yaw) that does not exceed a maximum rate of 17 deg/s.
Angular Velocity
The Enterprise UT (OW11FM) shall compensate for rotational motion on each axis (roll, pitch, yaw) that does not exceed a maximum rate of 17 deg/s.
Angular Acceleration
The Enterprise UT (OW11FM) shall compensate for angular acceleration on all axes that does not exceed a maximum rate of 75 deg/s/s.
Translational Acceleration
The Enterprise UT (OW11FM) shall compensate for translational acceleration on all axes that does not exceed a maximum rate of 5 m/s/s.
Shock & Vibe
The Enterprise UT (OW11FM) shall support COTM (Comms on the Move) operation while complying with MIL-STD-810H 514.8 vibration Procedure I, and MIL-STD-810H 516.8 shock Procedure I, as well as MIL-STD-167-1 vibration and shock profiles and shall maintain connection in a manner that ensures the end user doesn’t perceive a pause or drop in connectivity when subjected to motion the motion profile defined in the “Mobility Performance – Maritime” Requirements.
Blockage Recovery
If a blockage occurs between the antenna and the satellite, the antenna will then regain connection once the blockage is no longer present. Recovery time will follow the below table based on the total time for which the blockage occurred.
Blockage Time Recovery Time
< 20 seconds 3 seconds
20 to 90 seconds 20 seconds
> 90 seconds 3 minutes

Optimized Performance

Utilizing Intellian’s innovative antenna design, the OW11FM delivers the maximum throughput allowed on the OneWeb network. Offering the highest link margin, performance is guaranteed even over scan and at the lowest elevation angles, ensuring we meet the highest demands of maritime and land mobile customers.

Customer Network Exchange

Intellian’s Customer Network Exchange (CNX) units are a critical component of any OneWeb user terminal installation, providing both the power and data connectivity to the Flat Panel user terminal, and the connectivity to customer equipment and networks. CNX variants are offered for specific deployment scenarios including Land Fixed, Maritime and Land Mobility.

Seamless Connectivity

The OW11FM features Intellian’s advanced tracking technology, extended scan range, and blockage mitigation, improves connection reliability and availability even while in motion. Delivering the best performance at scan, the innovative flat panel technology facilitates smooth reliable handovers, which ensure seamless and undisrupted connectivity.

Harsh Environment Performance

The OW11FM is designed to ensure dependable performance in even the most demanding environments, operating in extremely low temperatures down to -40 °C and up to +55 °C (-40 °F to 131 °F). Integrated radar rejection filtering ensures performance in high interference installations and reliable broadband services for customers at sea.

Simplified Installation

The lightweight design and optimal form factor of the OW11FM enables easy installation by a single person. The universal mount design supports standard maritime mounts. Installation is further simplified through use of combined power and data over a single coaxial cable connecting the below deck CNX units. The use of Intellian’s mobile app for site survey, automated configuration, and monitoring further reduces the time required to get online.

OW11Fx SPECIFICATIONS – Enterprise Panel Series

Antenna Panel (ODU/ADU)

• Dimensions: 970 x 500 x 130mm (38 x19.7 x 5.0in)
• Weight: 20.48kg (45.15lb)
• Power: Max 380 W
• Operating temperature: -40°C to +55°C (-40°F to 131°F)
• G/T: 10.7 dB/K
• EIRP: + 33.6 dBW (single carrier) +36.6 dBW (dual carrier)
• Field of View: ± 70° from zenith 360° azimuth
• Ingress: IP66
• Interfaces: F-type port Ethernet Cable RJ45 port

CNX-RACK-AC – part# PP-T2C0 Basic Specifications:

• Intellian Part: OP-T2C0
• Form Factor: 19in Rackmount
• Dimensions: 44.2 x 25 x 4.4cm (19in x 1 RU chassis)
• Weight: 6.3kg (13.9lb)
• Operating Temp: -25°C to +55°C (-13°F to +131°F)
• Ingress: IP31
• Data Interface: 8-port GigE RJ45, USB(Type-A), WiFi Dongle port, and  F-Type Port
• Power Modules: Dual 450W PDM requiring AC: 100V ~ 240V/50Hz ~ 60Hz
• PSA Compatibility: Refer to below Installation Guide
• UT Compatibility: Compact Series & Enterprise UT Series

CNX ORDERING GUIDE

• CNX-BB stand-alone, part# PP-T1A0 (requires, but does NOT include any PSA)
• CNX-BB Bundle, part# PP-T1A0-250A, Description: CNX-BB with 250W AC/DC PSA, Application: OW10HL, OW10HV and OW10HM
• CNX-BB Bndl, part# PP-T1A0-DC, Desc: CNX-BB with 480W DC-DC Converter PSA(No ACC), Application: OW10HL and 10HV
• CNX-WIFI series/application
• CNX-Wifi stand-alone, part# PP-T1A1 (requires, but does NOT include any PSA)
• CNX-Wifi Bundle, part# PP-T1A1-250A, Description: CNX-Wifi with 250W AC/DC PSA, Application: OWHL, OWHV, OWHM
• CNX-Wifi Bundle, part# PP-T1A1-450A, Description: CNX-Wifi with 450W AC/DC PSA, Application: OW11FL, OW11FL, OW11FM
• CNX Wifi Bndl, part# PP-T1A1-DC, Desc: CNX-Wifi with 480W  DC-DC Converter PSA(No ACC), Appn: OW10HL, 10HV, OW11FL, 11FV
• CNX-Wifi Bndl, part# PP-T1A1-DCA, Desc: CNX-Wifi with 560W DC-DC PSA(with ACC), Appn: OW10HL, 10HV, OW11FL, 11FV
• CNX-MOBILITY series/applications
• CNX-Mobility stand-alone, part# PP-T2D1 (Requires but does NOT include any PSA)
• CNX-Mobility Bundle, PP-T2D1-450A, Desc: CNX-Mobility with 450W AC/DC PSA, Appn: OW10HL, 10HV, 10HM and OW11FL, 11FV, 11FM
• CNX-Mobility Bundle, part# PP-T2D1-DC, Desc: CNX-Mobility with 480W DC-DC Converter PSA(No ACC), Appn: OW10HV and OW11FV
• CNX-Mobility, part# PP-T2D1-DCA, Desc: CNX-Mobility with 560W DC-DC PSA(with ACC), Appn: OW10HV and OW11FV
• CNX-RACK series/applications
• CNX-Rack-AC, part# OP-T2C0, Description: CNX-Rack-AC version, Application: OW10HL, 10HV, 10HM and OW11FL, 11FV, 11FM
• CNX-Rack-DC, part# OP-T2B0, Description: CNX-Rack-DC version, Application: OW10HL, 10HV, 10HM and OW11FL, 11FV, 11FM

CNX COMPATIBILITY GUIDE

• COMPACT PANEL APPLICATIONS
• OW10HL (Fixed Land), and OW 10HV (Land Mobile/Vehicle)
• CNX-BB w/ 250W AC/DC PSA, ORDER part# PP-T1A0-250A
• CNX-BB w/ 480W DC-DC Converter PSA, Order part# PP-T1A0-DC
• CNX-Wifi w/ 250W AC/DC PSA, ORDER part# PP-T1A1-250A
• CNX-Wifi w/ 480W DC-DC PSA w/o ACC Feature, ORDER part# PP-T1A1-DC
• CNX-Wifi w/ 560W DC-DC PSA w/ ACC Feature, ORDER part#  PP-T1A1-DCA
• CNX-Mobility w/ 450W AC/DC PSA, ORDER part# PP-T2D1-450A
• CNX-Mobility w/ 480W DC-DC PSA w/o ACC Feature, ORDER part# PP-T2D1-DC
• CNX-Mobility w/ 560W DC-DC PSA w/ ACC Feature, ORDER part#  PP-T2D1-DCA
• CNX-Rack-AC, ORDER part#  OP-T2C0
• CNX-Rack-DC, ORDER part# OP-T2B0
• OW10HM (Maritime)
• CNX-BB w/ 250W AC/DC PSA, ORDER part# PP-T1A0-250A
• CNX-Wifi w/ 250W AC/DC PSA, ORDER part# PP-T1A1-250A
• CNX-Mobility w/ 450W AC/DC PSA, ORDER part# PP-T2D1-450A
• CNX-Rack AC, ORDER part#  OP-T2C0
• CNX-Rack-DC, ORDER part#  OP-T2B0
• ENTERPRISE PANEL APPLICATIONS
• OW11HL (Fixed Land), and OW 11HV (Land Mobile/Vehicle)
• CNX-Wifi w/ 450W AC/DC PSA, ORDER part# PP-T1A1-450A
• CNX-Wifi w/ 480W DC/DC PSA w/o ACC Feature, ORDER part# PP-T1A1-DC
• CNX-Wifi w/ 560W DC/DC PSA w/ ACC Feature, ORDER part#  PP-T1A1-DCA
• CNX-Mobility w/ 450W AC/DC PSA, ORDER part# PP-T2D1-450A
• CNX-Mobility w/ 480W DC/DC PSA w/o ACC Feature, ORDER part# PP-T2D1-DC
• CNX-Mobility w/ 560W DC/DC PSA w/ ACC Feature, ORDER part#  PP-T2D1-DCA
• CNX-Rack-AC, ORDER part#  OP-T2C0
• CNX-Rack-DC, ORDER part# OP-T2B0
• OW11HM (Maritime)
• CNX-Wifi w/ 450W AC/DC PSA, ORDER part# PP-T1A1-450A
• CNX-Mobility w/ 450W AC/DC PSA, ORDER part# PP-T2D1-450A
• CNX-Rack-AC, ORDER part#  OP-T2C0
• CNX-Rack-DC, ORDER part#  OP-T2B0

SUPPORTED CABLES – INSTALLATION GUIDE

• Refer below for: OW10FM (Maritime), OW10HL (Fixed Land), OW10FV (Land-mobile/Vehicle)
• CNX-BB/WIFI/MOB: AC/DC, 110-240VAC to 56VDC, 250/450W, Length: 45m, Cable Type: RG-11, MANUF. Part# BELDEN 1525A
• CNX-BB/WIFI/MOB: AC/DC, 110-240VAC to 56VDC, 250/450W, Length: 45m, Cable Type: RG-11, MANUF. Part# Amphenol T11TSFx77-LTV
• CNX-BB/WIFI/MOB: AC/DC, 110-240VAC to 56VDC, 250/450W, Length: 75m, Cable Type: RG-6, MANUF. Part# BELDEN 1694A-2
• CNX-BB/WIFI/MOB: AC/DC, 110-240VAC to 56VDC, 250/450W, Length: 190m, Cable Type: RG-11, MANUF. Part# BELDEN 7731A & 7731RW
• CNX-BB/WIFI/MOB: AC/DC, 110-240VAC to 56VDC, 250/450W, Length: 140m, Cable Type: RG-11, MANUF. Part# BELDEN 9292
• CNX-MOB: DC-DC Converter 12-2VDC to 48VDC, 480W/560W, Length: 30m, Cable Type: RG-6, MANUF. Part# BELDEN 1694A-2
• CNX-MOB: DC-DC Converter 12-2VDC to 48VDC, 480W/560W, Length: 75m, Cable Type: RG-11, MANUF. Part# BELDEN 7731A & 7731RW
• CNX-MOB: DC-DC Converter 12-2VDC to 48VDC, 480W/560W, Length: 55m, Cable Type: RG-11, MANUF. Part# BELDEN 9292
• CNX-MOB: DC-DC Converter 12-2VDC to 48VDC, 480W/560W, Length: 100m, Cable Type: LMR-400, MANUF. Part# LMR-400-FR*
• CNX-RACK-AC and DC – Embedded PSA, 56VDC output, Length: 190m, Cable Type: RG-11, MANUF. Part# BELDEN 7731A & 7731RW
• CNX-RACK-AC and DC – Embedded PSA, 56VDC output, Length: 140m, Cable Type: RG-11, MANUF. Part# BELDEN 9292
• CNX-RACK-AC and DC – Embedded PSA, 56VDC output, Length: 45m, Cable Type: RG-11, MANUF. Part# BELDEN 1525A
• CNX-RACK-AC and DC – Embedded PSA, 56VDC output, Length: 45m, Cable Type: RG-11, MANUF. Part# Amphenol T11TSFx77-LTV
• CNX-RACK-AC and DC – Embedded PSA, 56VDC output, Length: 250m, Cable Type: LMR400, MANUF. Part# LMR-400FR-Bulk
• CNX-RACK-AC and DC – Embedded PSA, 56VDC output, Length: 400m, Cable: LMR600, Connector: (TMS) Amphenol EZ-600-NMH-X
• Refer below for: OW11FM (Maritime), OW11HL (Fixed Land), OW11FV (Land-mobile/Vehicle)
• CNX-WIFI/MOBILITY: AC/DC, 110-240VAC to 56VDC, 450W, Length: 30m, Cable Type: RG-6, MANUF. Part# BELDEN 1694A-2
• CNX-WIFI/MOBILITY: AC/DC, 110-240VAC to 56VDC, 450W, Length: 60m, Cable Type: RG-11, MANUF. Part# BELDEN 9292
• CNX-WIFI/MOBILITY: AC/DC, 110-240VAC to 56VDC, 450W, Length: 85m, Cable Type: RG-11, MANUF. Part# BELDEN 7731A&7731RW
• CNX-MOB: DC-DC Converter 12-2VDC to 48VDC, 480W/560W, Length: 30m, Cable Type: RG-11, MANUF. Part# BELDEN 7731A & 7731RW
• CNX-MOB: DC-DC Converter 12-2VDC to 48VDC, 480W/560W, Length: 40m, Cable Type: LMR-400, MANUF. Part# LMR-400-FR*
• CNX-RACK-AC and DC – Embedded PSA, 56VDC output, Length: 60m, Cable Type: RG-11, MANUF. Part# BELDEN 9292
• CNX-RACK-AC and DC- Embedded PSA, 56VDC output, , Length: 85m, Cable Type: RG-11, MANUF. Part# BELDEN 7731A&7731RW
• CNX-RACK-AC and DC – Embedded PSA, 56VDC output, Length: 110m, Cable Type: LMR400, MANUF. Part# LMR-400-FR*
• CNX-RACK-AC and DC – Embedded PSA, 56VDC output, Length: 260m, Cable Type: LMR600, Connector: (TMS) Amphenol EZ-600-NMH-X
• EXTENDED LENGTH CABLES:
• Available upon request, once the Panel and CNX configuration are decided, please contact our office for calculations and recommendations.
• END OF REFERENCES
