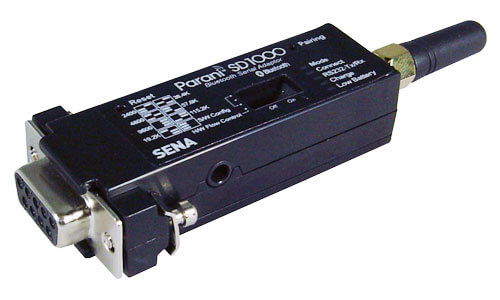

SD1000-B100 SENA Parani SD1000 Bluetooth Class 1 Serial Adaptor, bulk 100 piece pack
Parani SD1000 is a Bluetooth v2.0+EDR for Serial-Adapter for transparent RS232 cable replacement.
This SD1000-B100 pack includes units+antennas+DC power cables ONLY.
Transmit distance can be extended using optional antennas up to 1,000m.
Enhanced portability available via two battery-pack options(NOT included)
$14,190.00 Inc. GST
The Parani-SD1000 is a Class1 type of Bluetooth Serial Adapter that supports 100 meters of wireless transmit distance by default. The Parani-SD1000 has an extension option so that users can extend the transmit distance up to 1000 meters using optional antennas. It supports Bluetooth v2.0+EDR specification. Parani-SD1000 has two battery-pack options, standard and extended battery pack. By these options, Parani-SD1000’s portability is more enhanced. The Parani-SD1000 also supports up to 4 multiple simultaneous connections.
Features – Parani-SD1000
Provides transparent RS232 serial cable replacement.
Supports Bluetooth Specification v2.0 + EDR 1.2 stack – improved AFH(Adaptive Frequency-Hopping), Fast connection
Supports Bluetooth Serial Port Profile
Interoperability with PDA, laptops etc.
Supports firmware upgrade via windows-based software(ParaniUpdater)
Working distance ( In an open field ):
Parani-SD1000: Class 1, Nom. 100 meters, up to 1000m using patch antenna
Software-free configuration support using DIP-Switch and pairing button
Enhanced portability with Optional Battery Packs
No external drivers require
Go to Reference Table Below……………….
Parani-SD1000
Serial Interface
Serial speed up to 921.6kbps
CTS/RTS flow control, DTR/DSR for loop-back & full transfer
Bluetooth Interface
Bluetooth v2.0 + EDR
Class 1
Profiles – SPP
Working distance (in open field)
SAT-G01R
SAT-G01R
DAT-G01R
DAT-G01R
DAT-G01R
DAT5-G01R
DAT5-G01R
PAT-G01R
–
–
–
–
–
–
–
–
SAT-G01R
DAT-G01R
DAT-G01R
DAT5-G01R
PAT-G01R
DAT5-G01R
PAT-G01R
PAT-G01R
100 meters
150 meters
200 meters
300 meters
500 meters
400 meters
600 meters
1,000 meters
[Antennas]
SAT-G01R : +1dBi Stub Antenna
DAT-G01R : +3dBi Dipole Antenna
DAT5-G01R : +5dBi Dipole Antenna
PAT-G01R : +9dBi Patch Antenna
Max. Tx power
+18dBm
Receive
Sensitivity
-88dBm
Antenna gain
Stub : +1dBi, Dipole : +3dBi, Dipole : +5dBi, Patch : +9dBi
Configuration
ParaniWin, ParaniUpdater
Modem AT command set
Diagnostic LED
– BT Status (mode)
– Connect
– RS232-RX/TX
– Charging/Done (Battery Charging/ Battery Charging completed)
– Low Battery
Power
Power input : 5~12VDC
Power Consumption : Minimum 2mA, Maximum 80mA
Common Power supply options
Power via a standard AC-plug DC-adapter
Power via USB power cable
Power via DC power cable
Power via pin 9 of DB9 connector
Battery Pack (Standard & Extended)
Environmental
Operating temperature: -20’C to 70’C
Storage temperature: -40’C to 85’C
Humidity: 90% Non-condensing

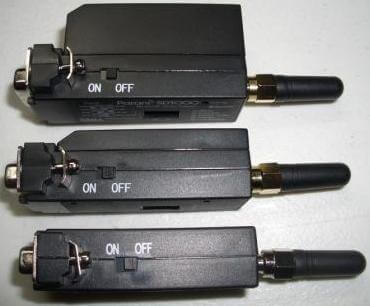

Physical properties
Dimension(LxWxH):
76 x 31 x 16 (mm) (No battery pack)
76 x 31 x 19.5 (mm) (with standard battery pack)
76 x 31 x 31.4 (mm) (with extended battery pack)
Weight:
24 g (No battery pack)
30 g (with standard battery pack)
42 g (with extended battery pack)
Battery
Capacity
240 mAh(standard)
900 mAh(extended)
Charging Power
minium 5V/200mA
Charging Time
Approximately 2 hours (Standard)
Approximately 5 hours (extended)
Battery Life
Test based on 9600 bps data loopback. Actual battery life varies by configuration, operating conditions and other factors
– Approximately 4.5 hours (standard)
– Approximately 16.5 hours (extended)
Regulatory
Approvals
FCC(A), CE, MIC, TELEC, SIG, IC
SIG QDID
Warranty
3-year Limited Warranty
Brand
Sena
WHAT IS IN THE BOX – Parani-SD1000-B100 Bulk Pack
100x SD1000 Serial Bluetooth Class1 Adapters
100x SAT-G01R Stub Antenna 1dBi
100x DPA-G01 DC Power Cable
*NOTE: There are NO other accessories included in this pack
