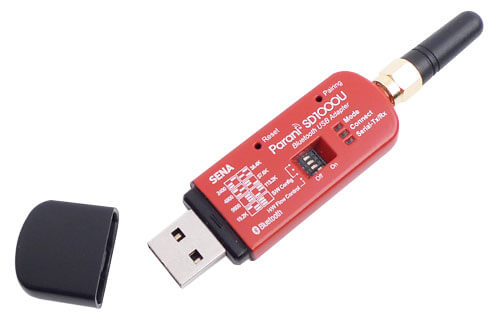

SD1000-G01R Sena Parani SD1000U USB Bluetooth Adaptor
SD1000U-G01 is for Serial-Port Replacement
Supports up to 4 multiple simultaneous connections
This is a class 1 type Bluetooth USB adapter that supports 300 meters of wireless transmission distance by default.
The working distance can be further extended up to 1000 meters using interchangeable optional replacement antenna.
Unique longer communication distance than other regular Bluetooth USB adapters, it is suitable for industrial or special applications.
$168.99 Inc. GST
The Parani-SD1000U is a class 1 type Bluetooth USB adapter for Serial Port Replacement that supports 300 meters of wireless transmission distance by default. The working distance can be further extended up to 1000 meters using optional antenna can be replaceable.
It is suitable for industrial and special applications because it can cover longer communicaiton distance (1000m) over other regular Bluetooth USB adapter accessories.
SD1000U-G01
SENA offers Industrial Bluetooth product line that includes Bluetooth Serial Adapters, Bluetooth Serial Modules, Bluetooth Access Points, and Bluetooth USB adapters.
SD1000U-G01 is for Serial-Port Replacement and supports up to 4 multiple simultaneous connections
Incorporate advanced features such as Bluetooth 2.0 Protocol Stack that includes Adaptive Frequency-hopping spread spectrum (AFH), Software-free configuration support, Pairing feature, and flexible power options.
This Bluetooth USB Adapter is suitable for industrial or special applications thanks to increased and reliable working distance over other regular Bluetooth USB adapters
COMPATIBILITY
Any device that accepts standard USB
All Parani SD series Serial Adapters, ESD series Embedded Modules, MSP series Access Points
Parani-SAT-G01R 1.0dBi Stub Antenna(300m Range) (as supplied with this pack)
Parani-DAT-G01R 3.0dBi Dipole Antenna(400m rane)
Parani-DAT5-G01R 5.0dBi Dipole Antenna(600m Range)
Parani-PAT-G01R 9.0dBi Patch Antenna(1,000m Range)
Parani-SEC-G01R 15cm antenna extension cable
Parani-RFC-G01R 100cm(1.0m) extension cable
FEATURES
Bluetooth Specification v2.0 + EDR Class 1
Working distance (In an open field): Normally 300 meters, up to 1000m using patch antenna
USB 2.0 interface
Supports Windows, Linux, Mac OS and Windows CE.NET operating systems.
No Bluetooth driver required.
Provides transparent RS232 serial cable replacement for PC
Supports Bluetooth Serial Port Profile (SPP)
Interoperability with laptops, PDA terminals etc.
Easy to use Windows configuration tool available.
Compatible also with Bluetooth Access Points connecting up to 28 Bluetooth devices to the 10/100 Base-T Ethernet network.
Parani-SD1000U specifications:
Bluetooth Specification v2.0 + EDR Class 1
No Bluetooth driver or Bluetooth stack required.
Provides transparent RS232 serial cable replacement for PC
Supported Bluetooth Profiles: Serial Port Profile (SPP)
Supports up to 4 multiple simultaneous connections
OS Support:
– Windows 7 x64
– Windows Server 2008
– Windows Server 2008 x64
– Windows Vista
– Windows Vista x64
– Windows Server 2003
– Windows Server 2003 x64
– Windows XP
– Windows XP x64
– Windows 2000
– Windows ME
– Windows 98
– Linux
– Mac OS X
– Mac OS 9
– Mac OS 8
– Windows CE.NET (Version 4.2 and greater)
Power
Diagnostic LED: Mode – Connect – Serial-Rx/Tx
Frequency Range: 2.402 ~ 2.480GHz
Max Transfer Rate: 3 Mbps (EDR)
Transmit Output Power: +18 dBm
Dimensions L x W x H
68 x 22 x 11.5mm (2.6 x 0.8 x 0.4 in) without cap
71 x 22 x 11.5mm (2.7 x 0.8 x 0.4 in) with cap
97 x 22 x 11.5mm (3.8 x 0.8 x 0.4 in) with cap and 1dBi stub antenna attached
Wt. 56g(1.98oz)
Receive Sensitivity:
Basic 1Mbps: -90 dBm
EDR 2Mbps: -88 dBm
EDR 3Mbps: -87 dBm
Working Distance (In Open Field)
Stub antenna: 300 m
Dipole (3 dBi) : 400 m
Dipole (5 dBi): 600 m
Patch antenna: 1 km
Working Distance can vary depending on install environment
Antenna Connector: RP-SMA
Driver Software: FTDI(FT232R) USB-Serial driver in public domain
Operating Temperature: -20C ~ +70C
Storage Temperature: -40˚C ~ +85˚C
Humidity: 95% Non-condensing
Regulatory Approvals: FCC, CE, TELEC, KCC, Bluetooth SIG
Brand
Sena
WHAT’S IN THE BOX ? – SD1000U-G01
1x Parani-SD1000U unit, with protective cap
1x Stub antenna(SAT-G01R)
1x Quick Start Guide
1x CD-ROM including Windows Bluetooth driver
1x User Guide and Data sheet (hard copy)
Shipping weight is 65g
