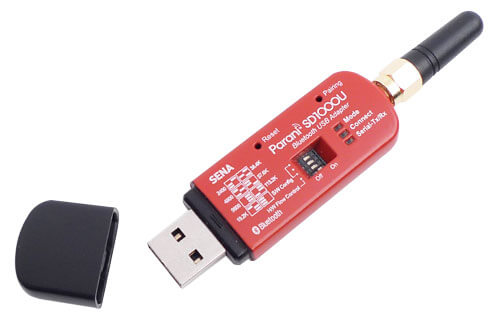

SD1000U-B10 Sena Parani SD1000U USB Bluetooth Adaptor, 10piece Bulk Pack
SD1000U-B10 includes 10x SD1000-G01 packs
SD1000U is for Serial-Port Replacement
This is a class 1 type Bluetooth USB adapter that supports 300 meters of wireless transmission distance by default. The working distance can be further extended up to 1000 meters using interchangeable optional replacement antenna. Thanks to its longer communication distance than other regular Bluetooth USB adapters, it is suitable for industrial or special applications.
$1,645.93 Inc. GST
The Parani-SD1000U is a class 1 type Bluetooth USB adapter for Serial Port Replacement that supports 300 meters of wireless transmission distance by default. The working distance can be further extended up to 1000 meters using optional antenna can be replaceable.
It is suitable for industrial and special applications because it can cover longer communicaiton distance (1000m) over other regular Bluetooth USB adapter accessories.
SD1000U is for Serial-Port Replacement
SENA offers Industrial Bluetooth product line that includes Bluetooth Serial Adapters, Bluetooth Serial Modules, Bluetooth Access Points, and Bluetooth USB adapters.
Bluetooth Serial products incorporate advanced features such as Bluetooth 1.2/2.0 Protocol Stack that includes Adaptive Frequency-hopping spread spectrum (AFH), software-free configuration support, Pairing feature, and flexible power options.
Bluetooth Access Points connect up to 28 Bluetooth devices to the 10/100 Base-T Ethernet network. SENA’s Bluetooth USB Adapters are suitable for industrial or special applications thanks to increased and reliable working distance over other regular Bluetooth USB adapters
COMPATIBILITY
Any device that accepts standard USB
All Parani SD series Serial Adapters, ESD series Embedded Modules, MSP series Access Points
Parani-SAT-G01R 1.0dBi Stub Antenna(300m Range) (as supplied with this pack)
Parani-DAT-G01R 3.0dBi Dipole Antenna(400m rane)
Parani-DAT5-G01R 5.0dBi Dipole Antenna(600m Range)
Parani-PAT-G01R 9.0dBi Patch Antenna(1,000m Range)
Parani-SEC-G01R 15cm antenna extension cable
Parani-RFC-G01R 100cm(1.0m) extension cable
FEATURES
Bluetooth Specification v2.0 + EDR Class 1
Working distance (In an open field): Normally 300 meters, up to 1000m using patch antenna
USB 2.0 interface
Supports Windows, Linux, Mac OS and Windows CE.NET operating systems.
No Bluetooth driver required.
Provides transparent RS232 serial cable replacement for PC
Supports Bluetooth Serial Port Profile (SPP)
Supports up to 4 multiple simultaneous connections
Interoperability with laptops, PDA terminals etc.
Easy to use Windows configuration tool available.
See Reference Table Below(scroll down to)…………..
| Parani-SD1000U | Standards | – Bluetooth 2.0+EDR Class 1 – USB 2.0 | Max Transfer Rate | 3 Mbps (EDR) | Frequency Range | 2.402 ~ 2.480GHz | Transmit Output Power | +18dBm | Receive Sensitivity | – Basic 1Mbps: -90dBm – EDR 2Mbps: -88dBm – EDR 3Mbps: -87dBm | Diagnostic LED | – Mode – Connect – Serial-Rx/Tx | Antenna Connector | RP-SMA | Antenna Gain | – Default Stub Antenna: 1 dBi – Optional Dipole Antennas: 3 dBi & 5 dBi – Optional Patch Antenna: 9 dBi | Working Distance (In Open Field) | – Stub antenna – Stub antenna: 300 m – Dipole (3 dBi) – Dipole (3 dBi): 400 m – Dipole (5 dBi) – Dipole (5 dBi): 600 m – Patch antenna – Patch antenna: 1 km * working distance can vary depending on install environment | Driver Software | FTDI(FT232R) USB-Serial driver in public domain (http://www.ftdichip.com/Drivers/VCP.htm) | Supported Bluetooth Profiles | Serial Port Profile (SPP) | Computer OS Support | – Windows 7 – Windows 7 x64 – Windows Server 2008 – Windows Server 2008 x64 – Windows Vista – Windows Vista x64 – Windows Server 2003 – Windows Server 2003 x64 – Windows XP – Windows XP x64 – Windows 2000 – Windows ME – Windows 98 – Linux – Mac OS X – Mac OS 9 – Mac OS 8 – Windows CE.NET (Version 4.2 and greater) | Environmental | Operating Temperature: -20˚C ~ +70˚C | Storage Temperature: -40˚C ~ +85˚C | Humidity: 95% Non-condensing | Physical properties | Dimension(LxWxH):
68 mm x 22 mm x 11.5mm (2.6 in x 0.8 in x 0.4 in) without cap | Weight: 56 g | Regulatory Approvals | FCC, CE, TELEC, KCC, IC, Bluetooth SIG | Warranty | 1 year limited warranty |
