RST205 Beam Iridium and GPS Antenna, Magnetic Mount, 5m cables (Heavy Duty – Vehicular)
Heavy Duty RST205 – Designed for 4×4, Trucks and Earth Moving Machinery etc.
$640.20 Inc. GST
RST205 Beam Iridium and GPS Antenna, Magnetic Mount, 5m cables (Heavy Duty – Vehicular)

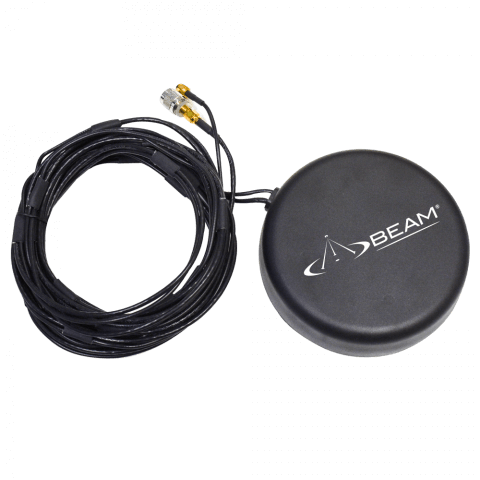

The Beam Iridium Magnetic Dual Mode Antenna – Heavy Duty (RST205) is engineered for exceptional satellite communication, especially in tough environments.
This antenna features a rugged magnetic mount, making it easy to install on metal surfaces, perfect for use in mobile, marine, or off-road applications. Designed to work seamlessly with Iridium satellite devices, it supports both voice and data services, ensuring versatile communication options for remote locations.
With its durable construction, the RST205 antenna is built to endure extreme conditions, offering reliable, uninterrupted performance no matter where your adventure takes you. Whether you’re traveling by vehicle, operating in harsh terrain, or on the water, this heavy-duty antenna provides optimal satellite connectivity when you need it most.
RST205 – Whats in the Box?
- Magnetic Dual Mode Antenna (includes 5 m Cable)
- SMA to TNC Adapter
Features
The Beam Iridium Magnetic Dual Mode Antenna – Heavy Duty (RST205) offers robust, reliable satellite communication with a magnetic mount and dual-mode functionality, designed for use in rugged, off-grid, and mobile environments.
Dual Mode Capability: Supports both voice and data communication via Iridium satellite.
Heavy Duty Construction: Designed for high-performance in rugged and challenging environments.
Magnetic Mount: Provides secure, flexible installation on any metal surface for mobile or fixed applications.
Optimized for Iridium Devices: Seamlessly integrates with all Iridium satellite communication systems.
Durable & Reliable: Built to withstand extreme weather and conditions, ensuring long-term performance.
Portable & Compact: Ideal for use in various mobile and off-grid communication setups.
Specifications
- Weight: 0.61kg
- Dimensions: 135.5 x 30.0mm
- IP Rating: IP67, IP69K, IK09
- Mounting Type: Magnetic
- Antenna Frequency: 1616 -1626.5 MHz
- GPS Frequency: 1575.42 ± 5MHz
- Polarization: Right Hand Circular
- Axial Ratio: 3dB Max
- Antenna Amplifier Gain : Passive
- GPS Amplifier Gain: 28dB (2.7VDC)
- Antenna Voltage: Passive
- GPS Voltage: 1.5VDC – 3.6VDC
- Antenna Current: Passive
- GPS Current: 9mA (2.7VDC)
- Antenna Noise Figure: NA
- GPS Noise Figure: 1.8 dB (2.7VDC)
- Impedance : 50 Ohms
- VSWR: ~1.2:1
- Antenna Connector: TNC-M-Nickel SMA-M (with SMA-F to TNC-M Adapter)
- GPS Connector: SMA-M
- Operating and Storage Temperature: -40 to +85
Features
The Beam Iridium Magnetic Dual Mode Antenna – Heavy Duty (RST205) offers robust, reliable satellite communication with a magnetic mount and dual-mode functionality, designed for use in rugged, off-grid, and mobile environments.
Dual Mode Capability: Supports both voice and data communication via Iridium satellite.
Heavy Duty Construction: Designed for high-performance in rugged and challenging environments.
Magnetic Mount: Provides secure, flexible installation on any metal surface for mobile or fixed applications.
Optimized for Iridium Devices: Seamlessly integrates with all Iridium satellite communication systems.
Durable & Reliable: Built to withstand extreme weather and conditions, ensuring long-term performance.
Portable & Compact: Ideal for use in various mobile and off-grid communication setups.
Specifications
- Weight: 0.61kg
- Dimensions: 135.5 x 30.0mm
- IP Rating: IP67, IP69K, IK09
- Mounting Type: Magnetic
- Antenna Frequency: 1616 -1626.5 MHz
- GPS Frequency: 1575.42 ± 5MHz
- Polarization: Right Hand Circular
- Axial Ratio: 3dB Max
- Antenna Amplifier Gain : Passive
- GPS Amplifier Gain: 28dB (2.7VDC)
- Antenna Voltage: Passive
- GPS Voltage: 1.5VDC – 3.6VDC
- Antenna Current: Passive
- GPS Current: 9mA (2.7VDC)
- Antenna Noise Figure: NA
- GPS Noise Figure: 1.8 dB (2.7VDC)
- Impedance : 50 Ohms
- VSWR: ~1.2:1
- Antenna Connector: TNC-M-Nickel SMA-M (with SMA-F to TNC-M Adapter)
- GPS Connector: SMA-M
- Operating and Storage Temperature: -40 to +85
Brand
Beam
RST205 – Whats in the Box?
- Magnetic Dual Mode Antenna (includes 5 m Cable)
- SMA to TNC Adapter
