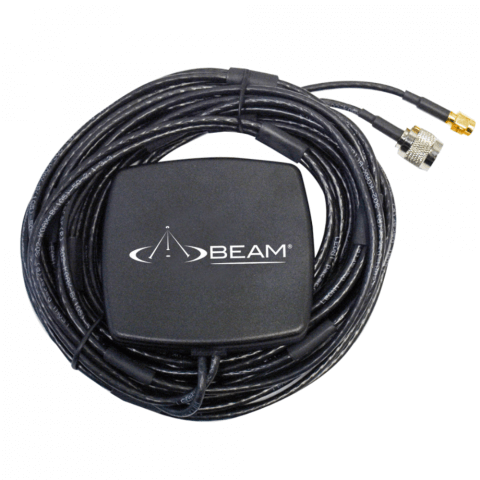

RST250 Beam Iridium and GPS Antenna, Magnetic Mount, 5m cables (Vehicular)
$397.10 Inc. GST
The Beam Iridium Magnetic Dual Mode Antenna (RST250) is a high-quality, lightweight antenna designed to provide exceptional performance for Iridium satellite systems.
With its dual-mode capability, this antenna supports both voice and data communication, ensuring you stay connected in remote locations with pole-to-pole global coverage.
Featuring a strong magnetic mount, the RST250 antenna can be easily installed on vehicles, boats, or other surfaces, offering secure attachment without the need for permanent installation. Its compact design makes it an excellent option for those seeking reliable satellite connectivity on the move, while the lightweight build enhances portability and ease of use.
Whether you’re on an outdoor adventure, working in the field, or traveling to remote areas, the Beam Iridium Magnetic Dual Mode Antenna ensures dependable communication, keeping you connected wherever you go.
RST250 – Whats in the Box?
- Dual Mode Antenna (includes 5m Cable)
- SMA to TNC Adapter
Key Benefits
• Dual Mode Iridium / GNSS (GPS/QZSS/Galileo)
• Small and Lightweight
• Magnetic Mount
• Designed for vehicles in tough weather conditions (IP67)
• Ground Plane Independent
• Includes 5m of both GPS & Iridium antenna cables attached
• 12-Month Warranty
Features
This Iridium Dual Mode Antenna is designed for high-performance satellite communication in semi-permanent/mobile installations. It ensures optimal signal reception and reliable Iridium and GPS communication, making it perfect for any remote/global location where stable, continuous connectivity is needed.
Dual Mode: Supports both voice and data communication for full satellite connectivity.
Magnetic Mount: Easy installation with a magnetic mount for secure attachment to vehicles, boats, or other surfaces.
Lightweight: Compact and portable design for easy handling and transport.
Global Coverage: Offers pole-to-pole satellite coverage for reliable communication in remote areas.
Versatile Use: Suitable for both personal and professional use in various environments such as off-grid locations, travel, and outdoor adventures.
Specifications
- Weight: 0.27kg
- Dimensions: 80 x 74 x 15.7mm
- IP Rating: IP67
- Material: ABS
- Mounting Type: Magnetic
- Antenna Frequency: 1616-1626.5MHz
- GNSS (GPS) Frequency: 1575.42 ± 5MHz
- Polarization: Right Hand Circular
- Axial Ratio:3dB Max
- Antenna Amplifier Gain : Passive
- GNSS (GPS) Amplifier Gain : 28 @ 2.7V
- Impedance : 50 Ohms
- Antenna VSWR: ~1.2:1
- GNSS (GPS) VSWR: <=1.4:1 dB
- Antenna Connector: TNC-Male
- GNSS (GPS) Connector: SMA-Male
- Antenna Voltage: Passive
- GNSS (GPS) Voltage: 1.5VDC – 3.6VDC
- Antenna Current: Passive
- GNSS (GPS) Current: 9 @ 2.7 V
- Antenna Noise Figure: Passive
- GNSS (GPS) Noise Figure: 1.8 @ 2.7 V
- Operating and Storage Temperature: -40°C to +85°C
Features
This Iridium Dual Mode Antenna is designed for high-performance satellite communication in semi-permanent/mobile installations. It ensures optimal signal reception and reliable Iridium and GPS communication, making it perfect for any remote/global location where stable, continuous connectivity is needed.
Dual Mode: Supports both voice and data communication for full satellite connectivity.
Magnetic Mount: Easy installation with a magnetic mount for secure attachment to vehicles, boats, or other surfaces.
Lightweight: Compact and portable design for easy handling and transport.
Global Coverage: Offers pole-to-pole satellite coverage for reliable communication in remote areas.
Versatile Use: Suitable for both personal and professional use in various environments such as off-grid locations, travel, and outdoor adventures.
Specifications
- Weight: 0.27kg
- Dimensions: 80 x 74 x 15.7mm
- IP Rating: IP67
- Material: ABS
- Mounting Type: Magnetic
- Antenna Frequency: 1616-1626.5MHz
- GNSS (GPS) Frequency: 1575.42 ± 5MHz
- Polarization: Right Hand Circular
- Axial Ratio:3dB Max
- Antenna Amplifier Gain : Passive
- GNSS (GPS) Amplifier Gain : 28 @ 2.7V
- Impedance : 50 Ohms
- Antenna VSWR: ~1.2:1
- GNSS (GPS) VSWR: <=1.4:1 dB
- Antenna Connector: TNC-Male
- GNSS (GPS) Connector: SMA-Male
- Antenna Voltage: Passive
- GNSS (GPS) Voltage: 1.5VDC – 3.6VDC
- Antenna Current: Passive
- GNSS (GPS) Current: 9 @ 2.7 V
- Antenna Noise Figure: Passive
- GNSS (GPS) Noise Figure: 1.8 @ 2.7 V
- Operating and Storage Temperature: -40°C to +85°C
Brand
Beam
RST250 – Whats in the Box?
- Dual Mode Antenna (includes 5m Cable)
- SMA to TNC Adapter
