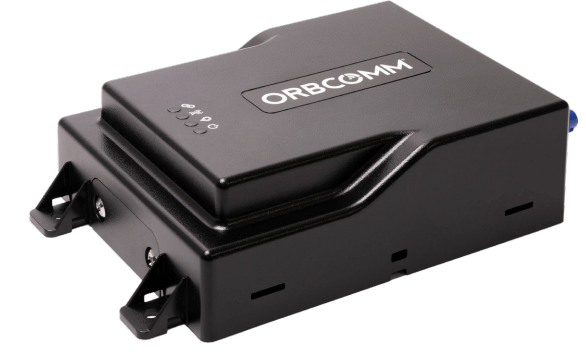

RT8000-2100 Orbcomm RT 8000 Cellular Terminal, Cold Chain, Cell-GPS antenna External
End-to-end visibility for the entire cold chain.
RT8000-2100 Orbcomm RT 8000 Cellular Terminal, Cold Chain, Cell-GPS antenna External
End-to-end visibility for the entire cold chain.
- Wireless sensor support
- Embedded SIM or SIM of choice
- Internal back-up battery
- Direct interface to cold chain OEM microprocessors
- Remote monitoring and control
- Event-based alarms
Automate operations with enhanced connectivity, improved compliance and wireless sensors to digitalise cold chain decision-making.
Product variants
• RT 8000-1100: Unit with GPS and cellular antenna integrated.
• RT 8000-2100: Unit with use of external GPS and cellular antenna.
The RT 8000 delivers the next generation of cold-chain telematics, building on the success of our Euroscan MX2 device, driven by years of customer input, our wealth of industry experience and the latest in cold chain technology.
Track, monitor and control reefer cargo better—and faster—than before. See asset data in one location for improved temperature monitoring, better fuel efficiency, reduced environmental footprint and easier fleet management.
The RT 8000 packs a powerful punch with high-speed processing and increased memory storage that further enables remote reefer control, geofencing, real-time and historical reporting and more.
Integrate data more efficiently with multiple new interfaces and the latest wireless technologies to make quicker, better informed decisions.
More connectivity
Up to ten I/Os make it easy to support any visibility, usage, productivity, security or EBS/TPMS application.
Wireless sensor support for temperature (EN12830 compliant) and door makes for quicker, flexible installation and adds to wired support for temperature, door, humidity, fuel and cargo sensors.
Bluetooth BLE provides for fast device control and higher-data-rate applications.
Future-proofed communications
A CAT 1 4G LTE modem with 2G support provides faster connectivity.
Use the standard embedded SIM or choose your own network with the help of a SIM-free
slot.
EN 12830 compliance (including data storage on the device), GAMP 5, HACCP and other industry certifications meet the requirements of international cold-chain operators in food distribution, retail logistics and pharmaceuticals.
Built to last
The ruggedised RT 8000 is designed to operate under extreme environmental conditions.
The low-power mode avoids draining the fridge battery, while the internal backup battery enables reporting without external power.
Flexible and versatile
Get real-time and historical data from ORBCOMM’s SaaS-based platforms, with open APIs available for more control through easy integration into ERP and TMS applications.
Product variants
• RT 8000-1100: Unit with GPS and cellular antenna integrated.
• RT 8000-2100: Unit with use of external GPS and cellular antenna.
Compatible refrigeration systems
• Carrier
• Thermo King
• Mitsubishi
• Lummiko
• Konvekta and other units, please ask
Product variants
• RT 8000-1100: Unit with GPS and cellular antenna integrated.
• RT 8000-2100: Unit with use of external GPS and cellular antenna.
Compatible refrigeration systems
• Carrier
• Thermo King
• Mitsubishi
• Lummiko
• Konvekta
Mechanical
• Dimensions: 181 mm x 113 mm x 48 mm
• Weight: aprox. 0.450 kg (wire harness adds 1.33 kg)
Environmental
• Operating temperature: -40 °C to +85 °C
• Rated IP65
Operating voltage
• Supply voltage: 10 to 32 volts
Power
• Consumption: nominal value 1.75W
• Low power mode capability
Battery
• Internal backup battery
• Type: Lithium
• Capacity: 2000 mAh
Communications
• CAT 1 4G LTE (2G support) GNSS/GSM
• EMEA:
» LTE-FDD: B1/3/7/8/20/28
» WCDMA: B1/8
» GSM: B3/8
• Wireless connectivity: Bluetooth version 5.3
Memory
• Capable of holding as much as 1 year of temperature data
• Compliant with EN 12830 requirements.
Certifications and compliance
• EN 12830:2018 Class 0.5
• Regulatory: E-Mark, CE, RoHS, GAMP 5
Mechanical Shock and vibration
• Vibration: SAE J1455 (Sec 4.9.4.2 fig 6-8); MIL-STD-810G
• Shock: MIL-STD-810G (Sec 516.6)
External Interfaces
• 10 general purpose I/Os
• 2 CAN
• 1 RS 232
• 1 RS 232 / RS-485
• 1 One-wire
Internal sensors
• One 3-axis accelerometer for shock detection up to 8G
Internal Clock
• Accuracy better than 0.02% within 31 days
(EN12830 requirement)
