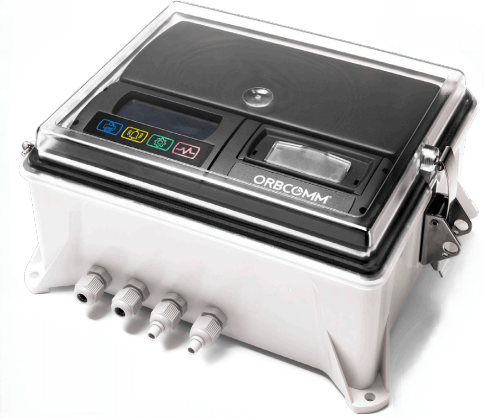

RT8110-2500 Orbcomm RT 8110 Cellular Terminal, Cold Chain, opt. SAT access,Rugged
Enhanced cold chain management, Rugged Install IP65
RT8110-2500 Orbcomm RT 8110 Cellular Terminal, Cold Chain, opt. SAT Access, Rugged
Enhanced cold chain management
- CAT 1 4G LTE modem (3G/2G support)
- EN 12830 compliance
- Integrated printer
- Wired and wireless sensor support
- Multiple connections
- Embedded SIM or
- SIM of choice
- High-capacity internal battery
Industry-leading all-in-one trailer and truck monitoring for the transportation of temperature-controlled cargo
Product variants
• RT8120-2500, (RT8110-1500, and RT8110-2500, RT8120-2500)
The RT 8110 and RT 8120 provide comprehensive cold chain telematics for monitoring and ensuring compliance for food, pharmaceuticals and other temperature-sensitive cargo.
These devices offer printed or electronic temperature records, real-time alerts and advanced reports, ensuring precise temperature management from origin to destination.
Choose your location
Available in two configurations—RT 8110 for rugged trailer installation and RT 8120 for compact truck cabin installation—both feature an integrated printer, easy-to-use interface and support for multiple languages.
They also meet stringent regulatory standards, including EN 12830:2018 Class 0.5 and HACCP.
Get connected
The RT 8110/8120 offer multiple connectivity options, including wired sensors, Bluetooth 5.3 support and the ability to connect up to ten wireless sensors simultaneously.
With increased processor memory, reliable data storage and an internal backup battery, these recorders ensure continuous and precise temperature monitoring even in challenging conditions.
Compatible refrigeration systems
• Carrier
• Thermo King
• Mitsubishi
• Lummiko
• Konvekta, other units, please ask
Operating voltage
• Supply voltage: 10 to 32 volts
Power
• Consumption: nominal value 1.75W, max. 25 W (while printing)
• Low power mode capability
Environmental
• Operating temperature: -40°/+85°C
• Print between 0°C and +50°C for best results
• RT 8110: IP65
• RT 8120: IP20
Humidity
• Relative humidity: 90% at 38°C (SAE J1455 § 4.2.3 Figure 4a)
Memory size
• Capable of holding 1 year of temperature data
• Compliant with EN 12830 and Welmec requirements
Internal sensors
• One 3-axis accelerometer for shock detection up to 8G
Mechanical shock and vibration
• Vibration: SAE J1455 (Sec 4.9.4.2 fig 6-8); MIL STD 810 H § 514.8, fig 514.8C-3 and table 514.8C-II
• Shock: MIL STD 810 H § 516.8, fig 516.8-10 and table 516.8-IV
Battery
• Internal backup battery
• Type: Lithium
• Capacity: 2000 mAh
External interfaces
• 10 general purpose I/Os
• 3 CAN
• 2 RS-232
• 1 RS-232/RS-485
• 1 One-wire
Communications
• CAT 1 4G LTE (3G/2G support)
GNSS/GSM
• EMEA
‣ LTE-FDD: B1/3/7/8/20/28
‣ WCDMA: B1/8
‣ GSM: B3/8
• Wireless connectivity: Bluetooth version 5.3
Dimensions
• RT 8110: 242 mm x 200 mm x 115 mm
• RT 8120: 187 mm x 60 mm x 160 mm
Weight:
• RT 8110: approx. 1.5 kg
• RT 8120: approx. 1 kg
Certifications and compliance*
• EN 12830:2018 Class 0.5
• Regulatory: RED, CE, R&TTE, RoHS
• 852/2004 AS OF 1.1.2006
• HACCP
• GAMP 5
• CE
• RED
* Pending
Product variants
• RT8120-2500, (RT8110-1500, and RT8110-2500, RT8120-2500)
