Details

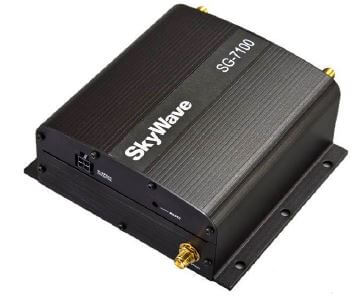

SM201340-002 Skywave SG-7100 Cellular Gateway base unit for APAC and EMEA
Ideal for sending mission-critical data from the field to the back office, the versatile SG-7100 creates a vital communications link that enables functions like dispatch, electronic forms/signatures, location-based services, HOS (hours of service) reports, collection of equipment data and much more.
The expandable, fully programmable SG-7100 also supports multiple LAN and WAN interfaces and features an onboard web server for forms in logistics applications.
Designed to accelerate time to market, the smart device’s configurable applications, modular hardware architecture and optional expansion cards offer the flexibility to meet evolving asset management challenges.
The cellular gateway platform takes the next step in M2M communications for fleet management, in-cab messaging, workflow automation, supervisory control and data acquisition (SCADA) applications.
Key Features
Fully Programmable and Configurable
Modular Hardware Architecture
Multiple configuration options for cellular, Wi-Fi, satellite, and ethernet networking
One-wire, serial, USB, Ethernet, digital and analog peripheral port options.
Integrated SkyWave Lua Services Framework and open Linux environment.
Integrated HTML 5 Compatible Web Server
RELIABLE CONNECTIVITY
Choose your options – Cellular(std), Cell+WiFi, Cell+SAT, Cell+SAT+WiFi:
Cellular: HSPA Penta-Band: 800/850/1800/1900/2100 MHz (includes Australian 3G/Next-G)
Wi-Fi: IEEE 802.11a/b/g/n

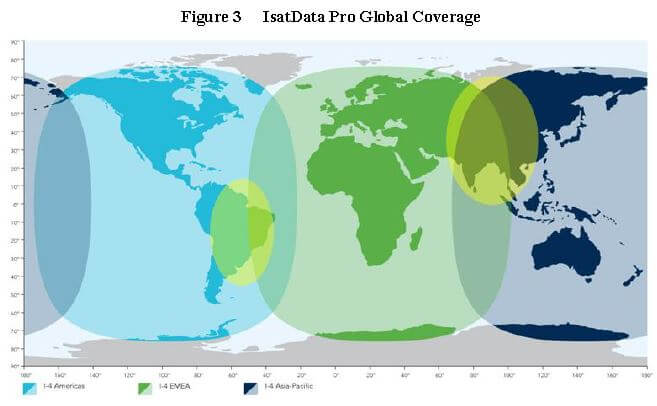

Satellite: Inmarsat IDP (IsatData Pro) Global Network to fulfill the requirements of your application and enjoy uninterrupted connectivity.
