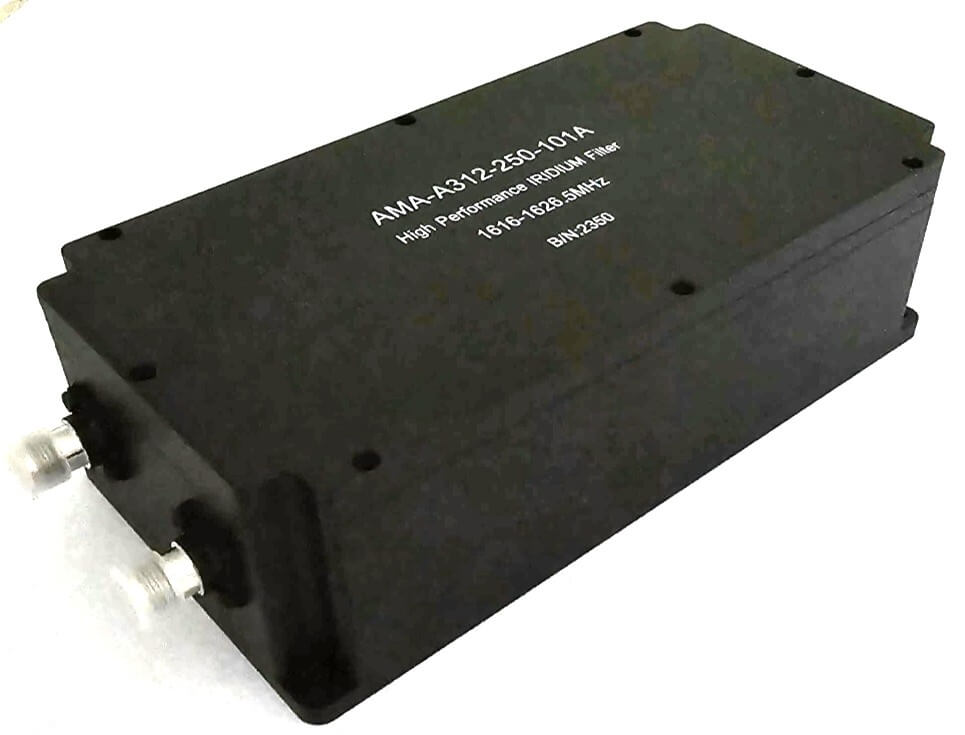

STARPAK-AMA-A312-250-101A Starpak Iridium Airborne Cavity Bandpass Filter, High Performance

STARPAK-AMA-A312-250-101A Starpak Iridium Airborne Cavity Bandpass Filter, High Performance

The choice for DoD and NGO requiring reliable Iridium Airborne, Maritime and Land Defense Systems.

This is a high-performance Filter, which is designed for Professional Iridium systems.

Not only improves the sensitivity and selectivity of the Iridium system, but also reduces interference to the nearby radio receivers by the phase noise and TX noise from the Iridium transmitter.

It’s strongly recommended to install this filter for a professional high-performance Iridium system.

Whats in the Box

• Iridium Bandpass Filter Unit
• Individual Analysis/Test Result Certificate

Features

• Specifically designed with a narrow bandwidth
• Minimizes interference from other systems in close proximity.
• Improves the overall performance of the Iridium Device.
• High rejection to isolate Iridium frequencies from outside interference such as Inmarsat systems.
• Utilizes a special plating process
• This unit can be outfitted with any RF connector type you may desire, such as N-type, TNC, SMA etc.

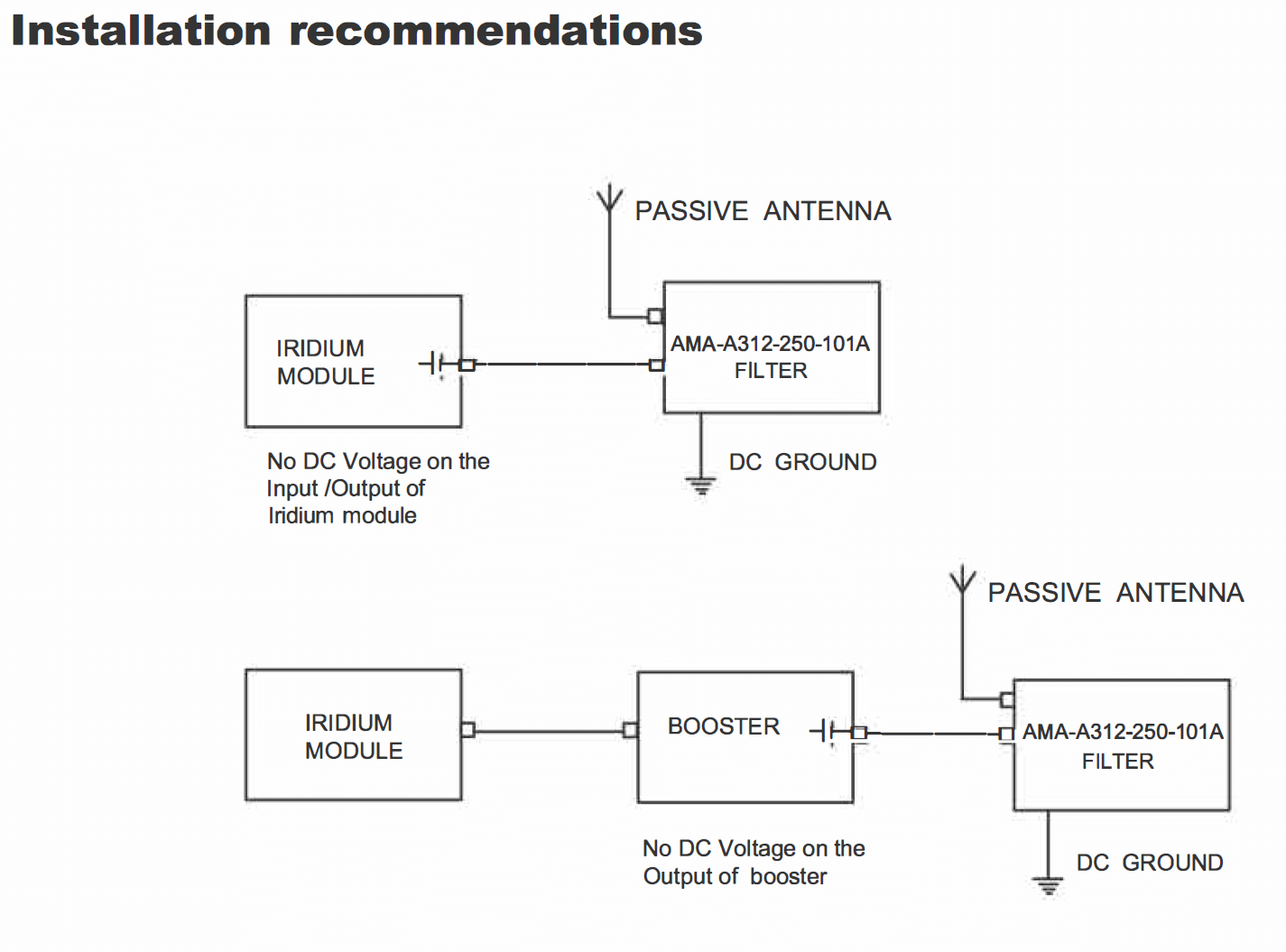

• Provide good lightning protection for the Iridium module when the body of the filter is well grounded.
• No additional lightning arrester is required.
• 3yr Manufacturers Warranty
• Made in USA

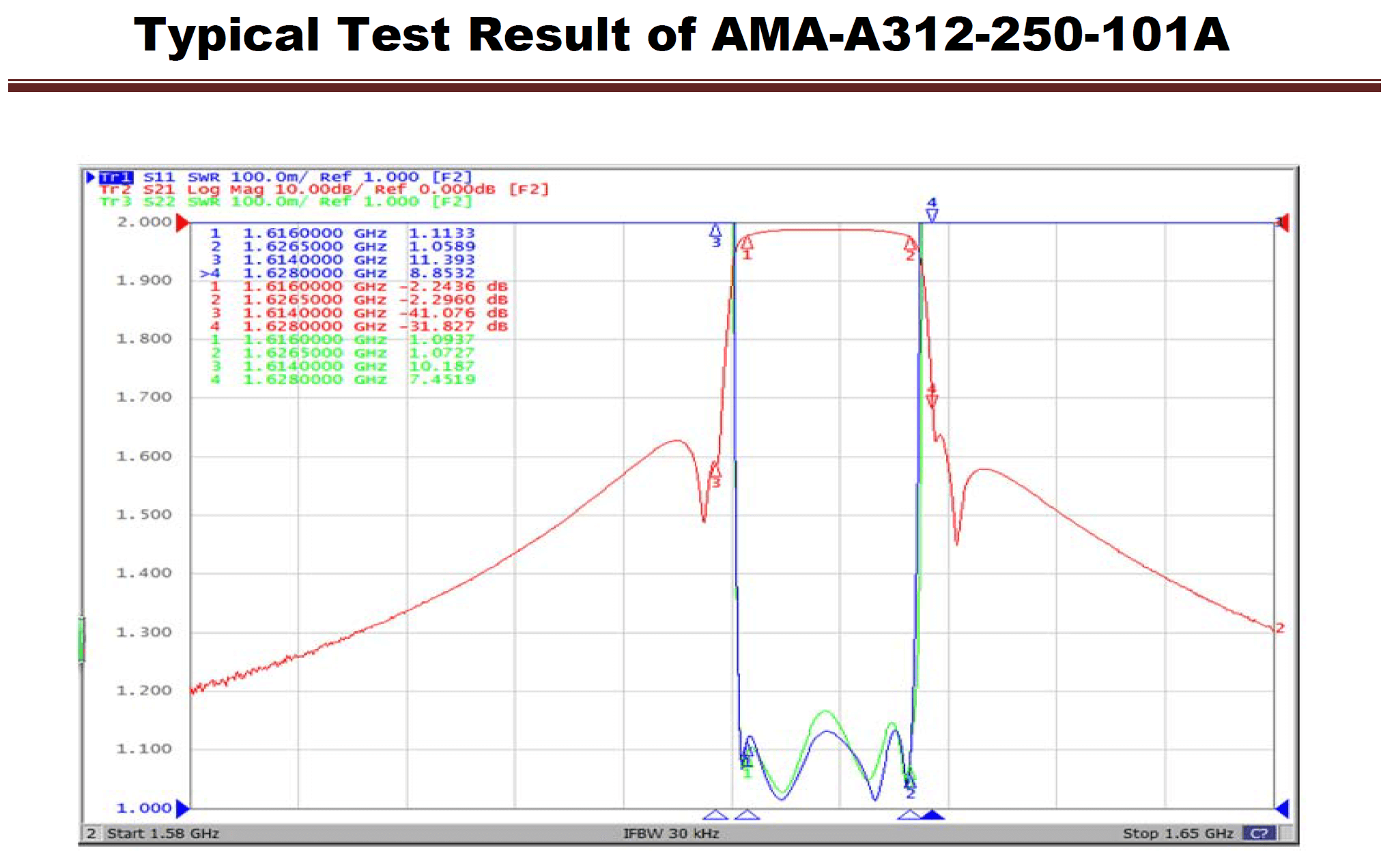

Specifications

• Frequency: 1616-1626.5MHz
• Insertion Loss: ≤1.2dB @ CF
• Rejection: ≥35 dB @1614MHz
• Rejection: ≥25 dB @1628MHz
• VSWR: ≤ 1.30:1
• Impedance: 50Ω
• Connectors(default): TNC-Female in / out at the same end
• Dimensions: H57 x W100 x L200mm(2.3 x 4.0 x 8.0in), nominal excluding connectors,
• Weight: 1.16kg(2.56lb)

Please reach out for assistance with this or any other Iridium filter requirement that you have.
