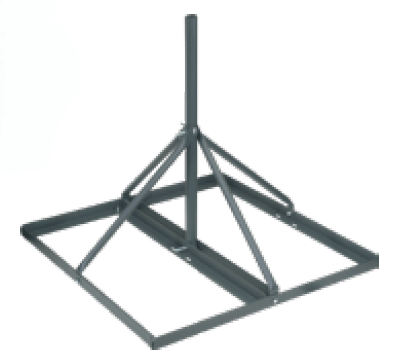

UW-NPM5-1074-RM Intellian OneWeb Mount, Non-Penetrating style, compatible with OW6017, for level surfaces (Land)

UW-NPM5-1074-RM Intellian OneWeb Mount, Non-Penetrating style, compatible with OW6017, for level surfaces

Application: Maritime or Land Fixed Site Mount for OW6017 Adjustable Mount.

These mounting types all share the same Adjustable Mount Adapter, part# OW6017(available, but is NOT included in this pack)

• The Maritime and Land Fixed installation has multiple mount types.
• Several mounting types are available for the Land Fixed UT(User Terminal / Antenna) to meet specific environmental conditions.
• These types are available as accessories and can be purchased separately.
• When this accessory is supplied, it is provided in a separate box.

Compatibility:

• OW6017 Adjustable Mount

Basic Overview:

• The Non-Pen Mount is the ideal solution for installations where a base penetrating fastener may not be feasible.
• Sikaflex or other high grade adhesive together with an additional base plate may be a solution for temporary yet mechanically sound installations.

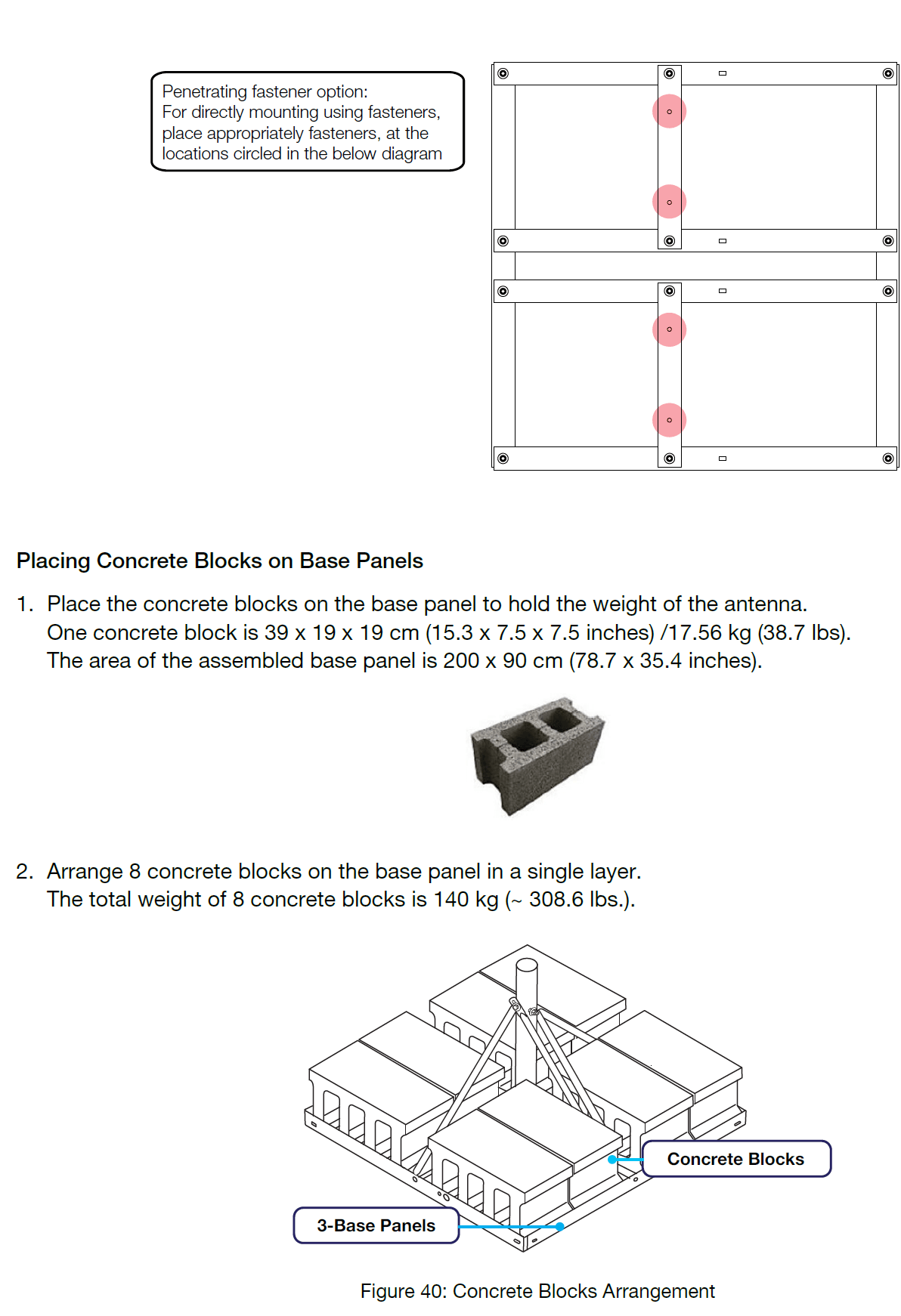

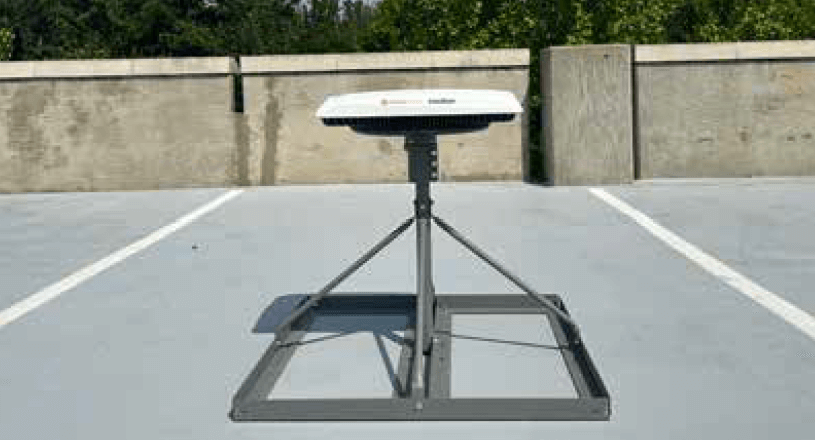

• Secured in place with cinder blocks, the Non-Pen Mount ensures your flat panel is secure without disrupting the surface of a flat roof or even an open field.

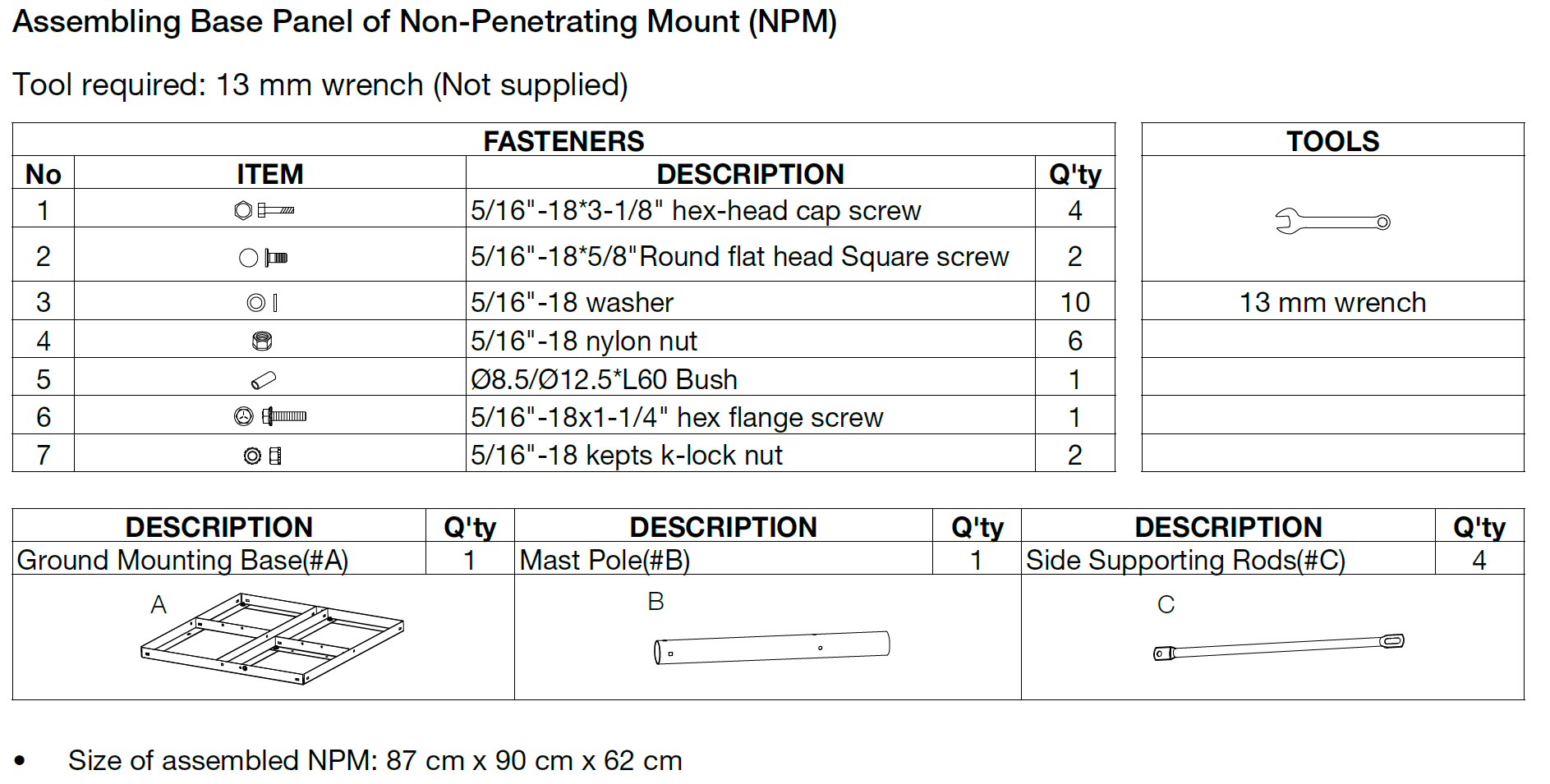

What’s in the Box – UW-NPM5-1074-RM

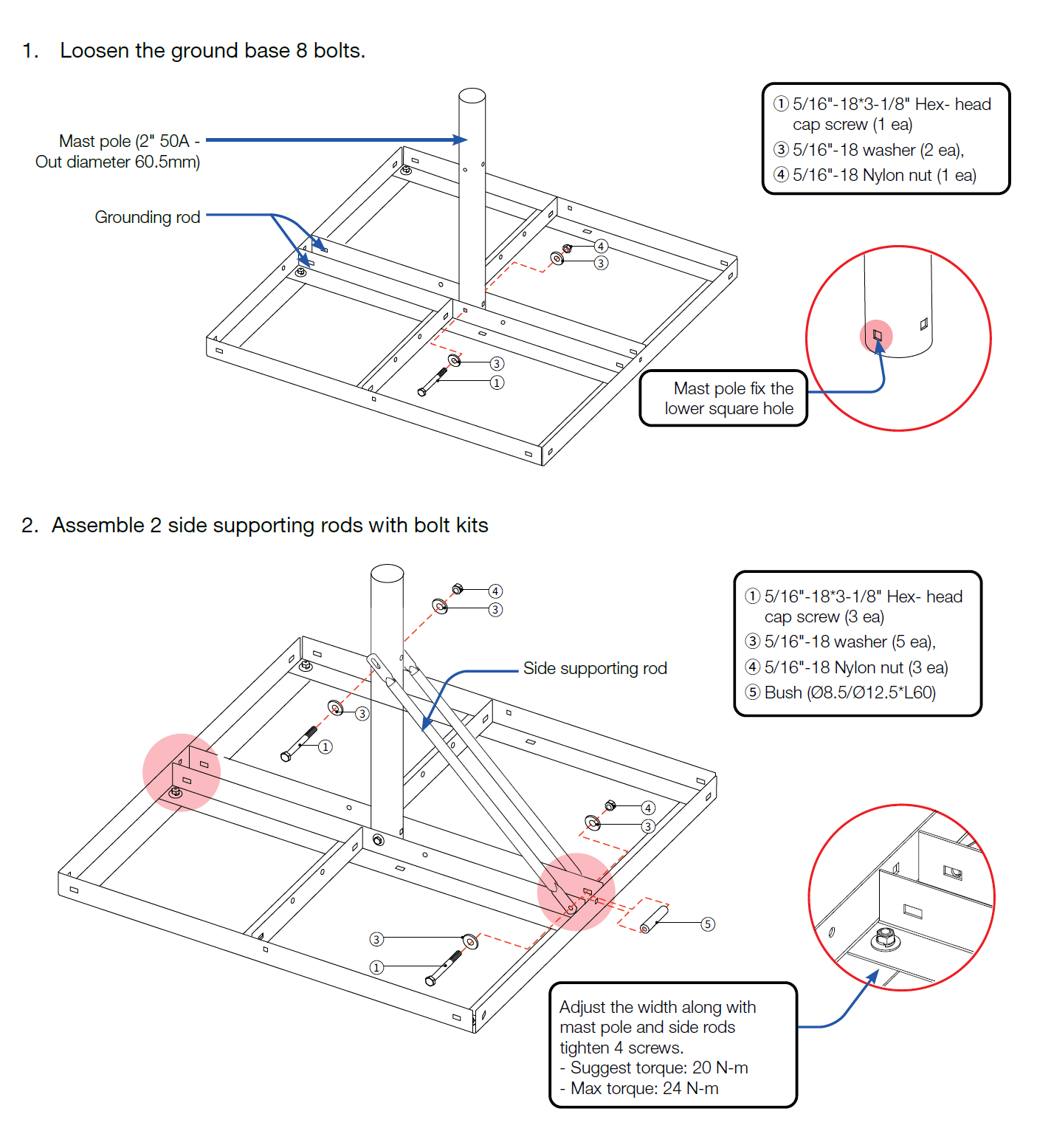

• 1pce Ground Mounting Base(labelled# “A”)
• 1pce Mast Pole(labelled# “B”)

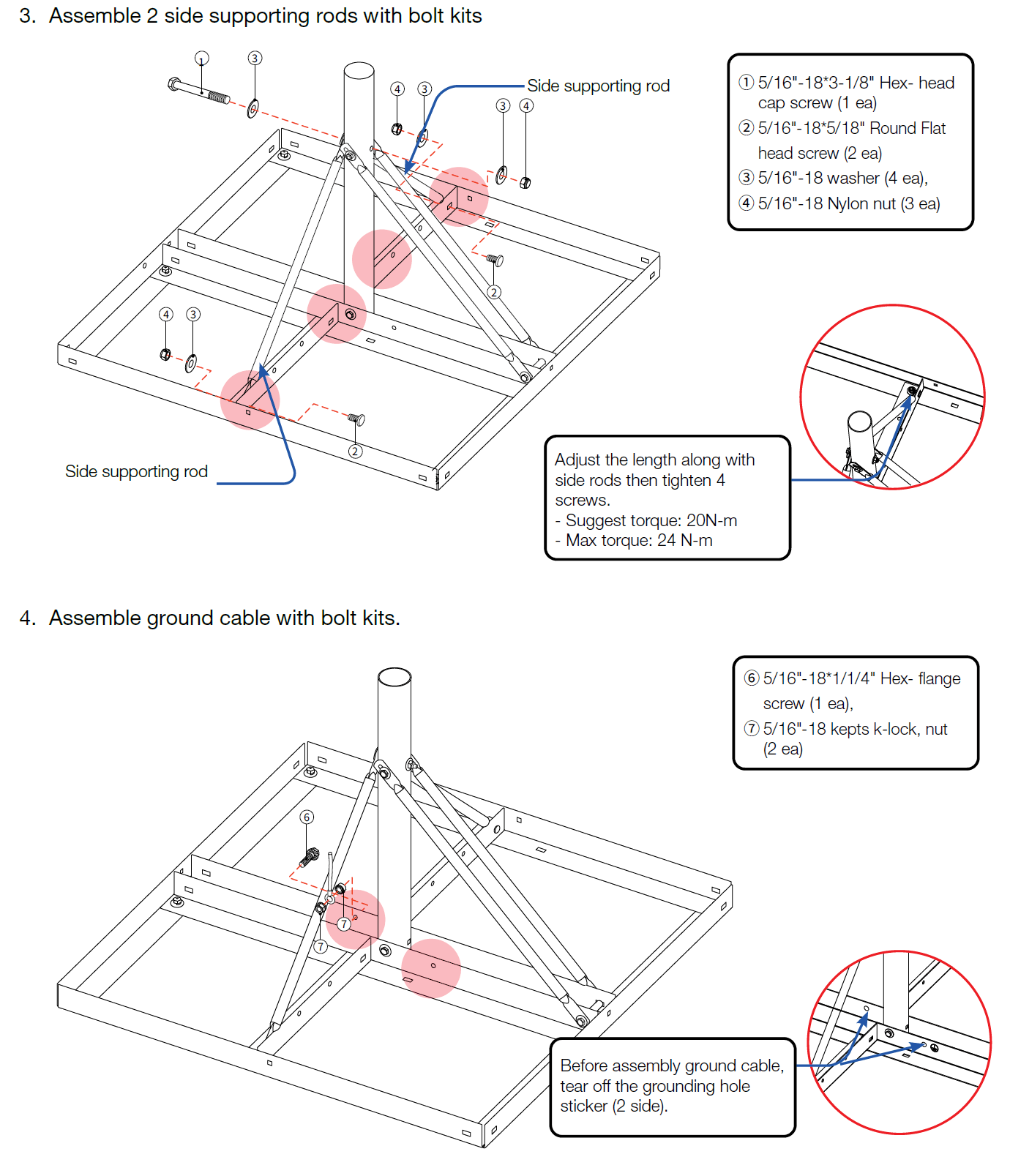

• 4pcs Side Supporting Rods(labelled# “C”)
• 4pcs 5/16″-18*3-1/8″ hex-head cap screw
• 2pcs 5/16″-18*5/8″Round flat head Square screw 2
• 10pcs 5/16″-18 washer
• 6pcs 5/16″-18 nylon nut
• 1pce Ø8.5/Ø12.5*L60 Bush
• 1pce 5/16″-18×1-1/4″ hex flange screw
• 2pcs 5/16″-18 kepts k-lock nut

Note: Size of assembled NPM: 870 x 900 x 620mm
