OW6012 Intellian OneWeb Mount, Tri-Mast style, compatible with OW6017, for Non-level surfaces (Land)

OW6012 Intellian OneWeb Mount, Tri-Mast style, compatible with OW6017, for non-level surfaces

Application: The TriMast Mount offers the perfect solution for non-level surfaces.

These mounting types all share the same Adjustable Mount Adapter, part# OW6017(available, but is NOT included in this pack)

Features

• The Maritime and Land Fixed installation has multiple mount types.
• Several mounting types are available for the Land Fixed UT(User Terminal / Antenna) to meet specific environmental conditions.
• These types are available as accessories and can be purchased separately.
• When this accessory is supplied, it is provided in a separate box.

Compatibility:

• Compatible with the OW6017 Adjustable Mount Adapter

Basic Overview:

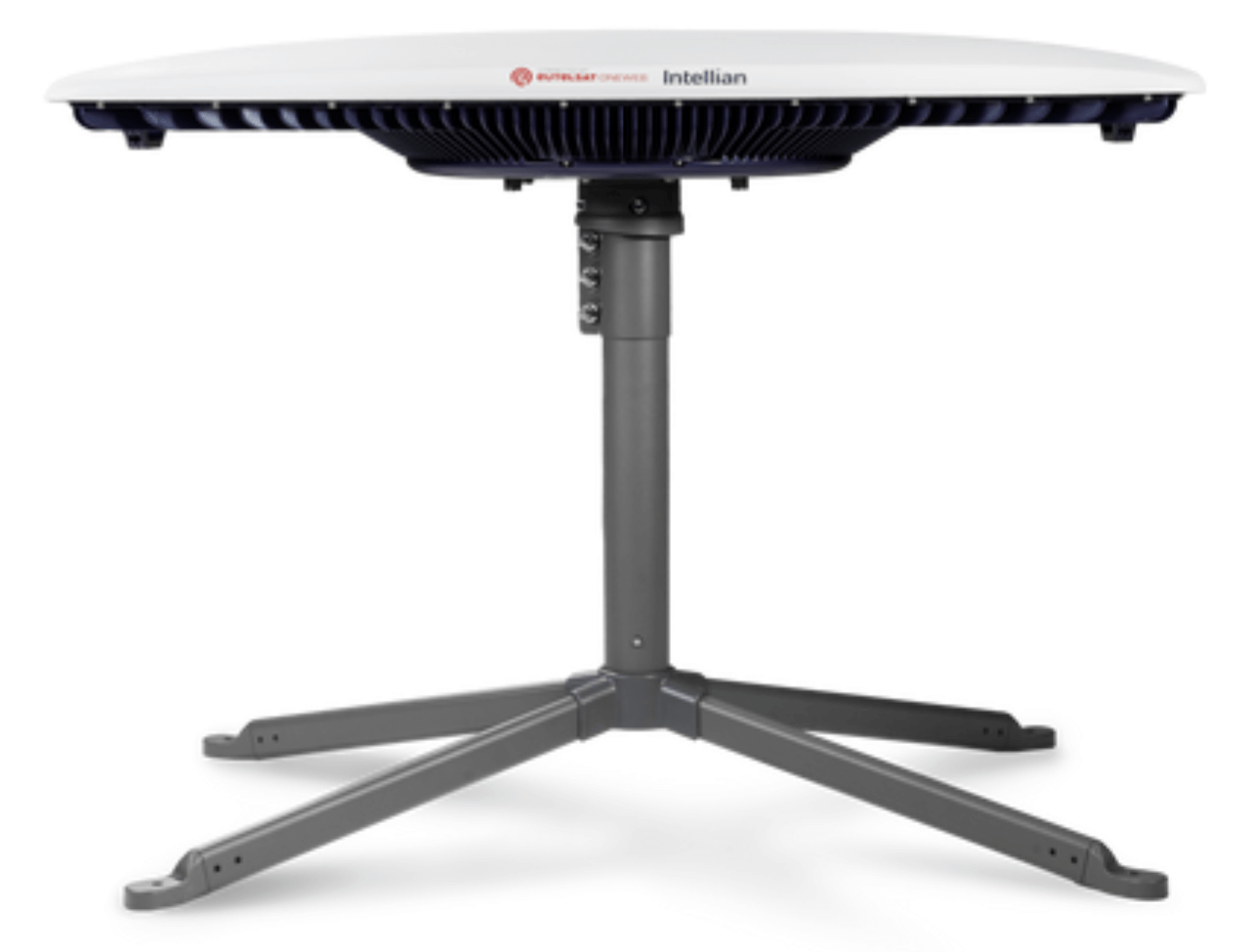

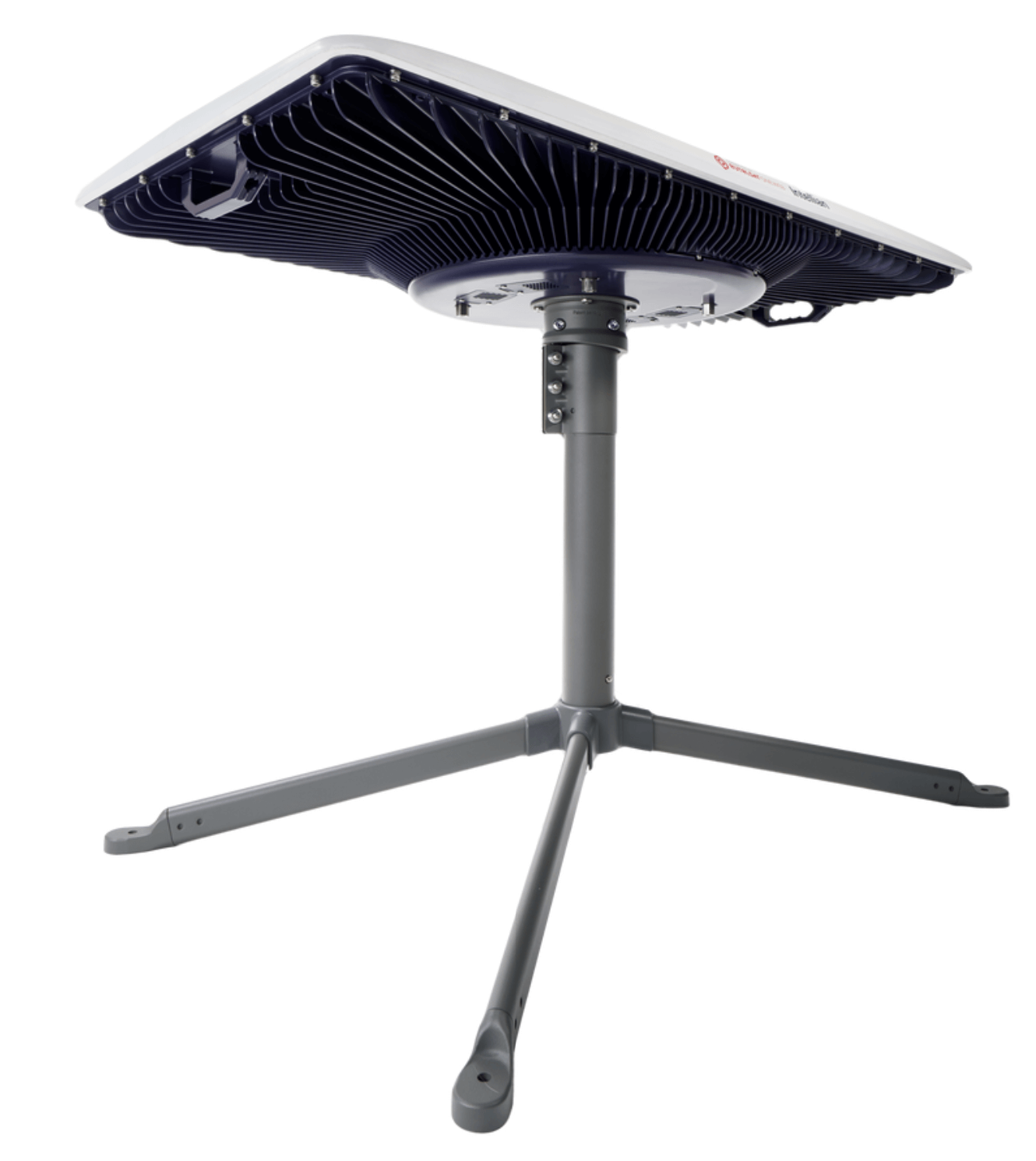

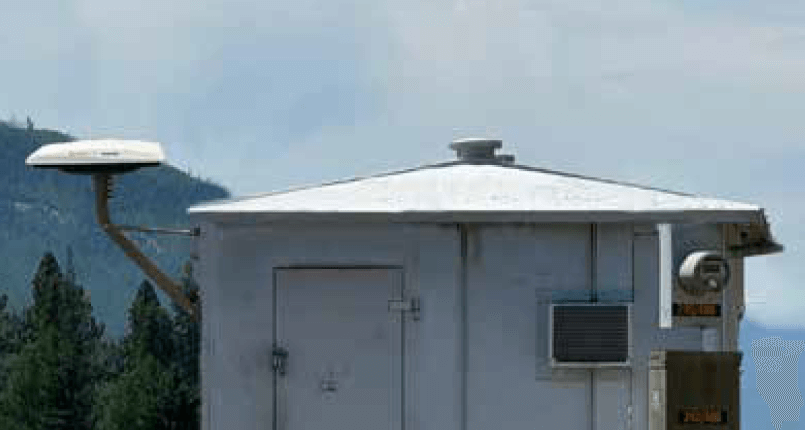

• .From the side of a building to a sloped roof, the TriMast Mount provides adjustability for securing your flat panel antenna.
• Mount Options: Adjustable, Non-Level
• Surfaces: Base Fastener Required
• Dimensions(deployed): 920 x 580 x 710mm(36 x 23 x 28in)
• Weight: 5.6kg (12.3lb)

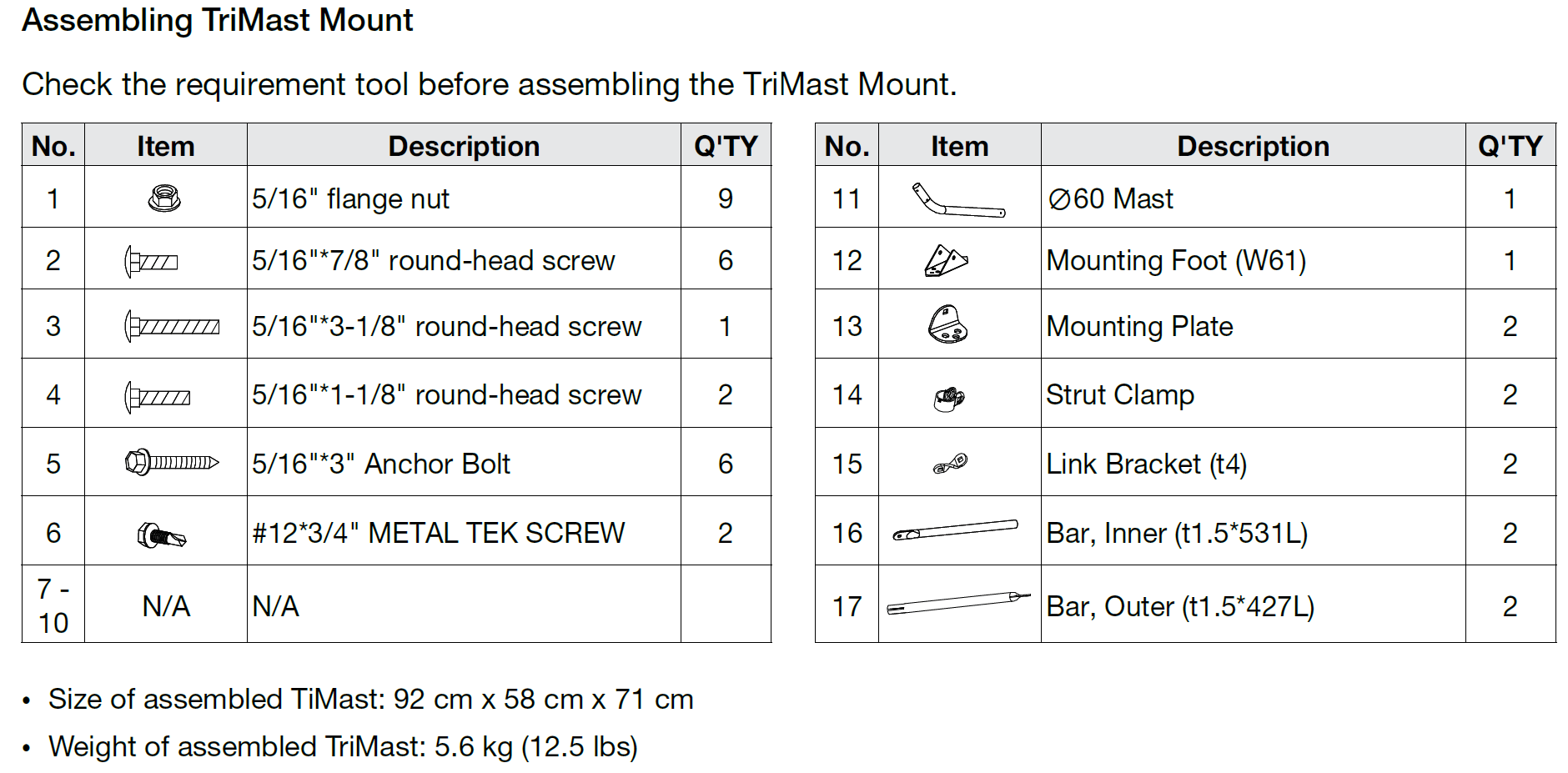

What’s in the Box – OW6012

• 9pcs 5/16″ flange nut
• 6pcs 5/16″*7/8″ round-head screw
• 1pce 5/16″*3-1/8″ round-head screw
• 2pcs 5/16″*1-1/8″ round-head screw
• 6pcs 5/16″*3″ Anchor Bolt
• 2pcs #12*3/4″ METAL TEK SCREW

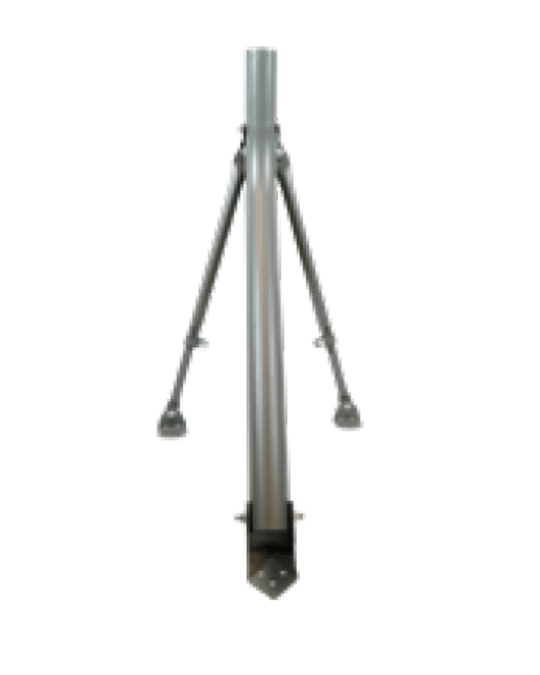

• 1pce ∅60 Mast
• 1pce Mounting Foot (W61)
• 2pcs Mounting Plate
• 2pcs Strut Clamp
• 2pcs Link Bracket (t4)
• 2pcs Bar, Inner (t1.5*531L)
• 2pcs Bar, Outer (t1.5*427L)

Note: Size of assembled TriMast: 920 x 580 x 710mm, Weight: 5.6 kg(12.3lb)
