OW6011 Intellian OneWeb Mount, Quadpod style compatible with OW6017 for short term COTP on uneven surfaces (Land)

OW6011 Intellian OneWeb Mount, Quadpod style compatible with OW6017 for short term COTP on uneven surfaces.

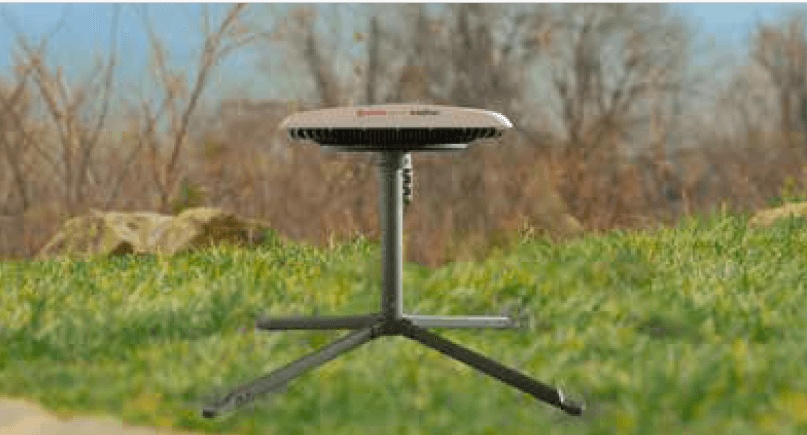

Application: This is a solution for quick and sturdy installations, ranging from short-term COTP applications to permanent land-fixed installations.

These mounting types all share the same Adjustable Mount Adapter, part# OW6017(available, but is NOT included in this pack)

Features

• The Maritime and Land Fixed installation has multiple mount types.
• Several mounting types are available for the Land Fixed UT(User Terminal / Antenna) to meet specific environmental conditions.
• These types are available as accessories and can be purchased separately.
• When this accessory is supplied, it is provided in a separate box.

Compatibility:

• Compatible with OW6017 Adjustable Mount

Basic Overview:

• Mount Options: Flat Surface only
• Base Fastener: Optional
• Dimensions(deployed): 830 x 600 x 545mm(32.7 x 23.6 x 21.7in), 520 x 210 x 120mm [stowed]
• Weight 4.2kg (9.2lb)

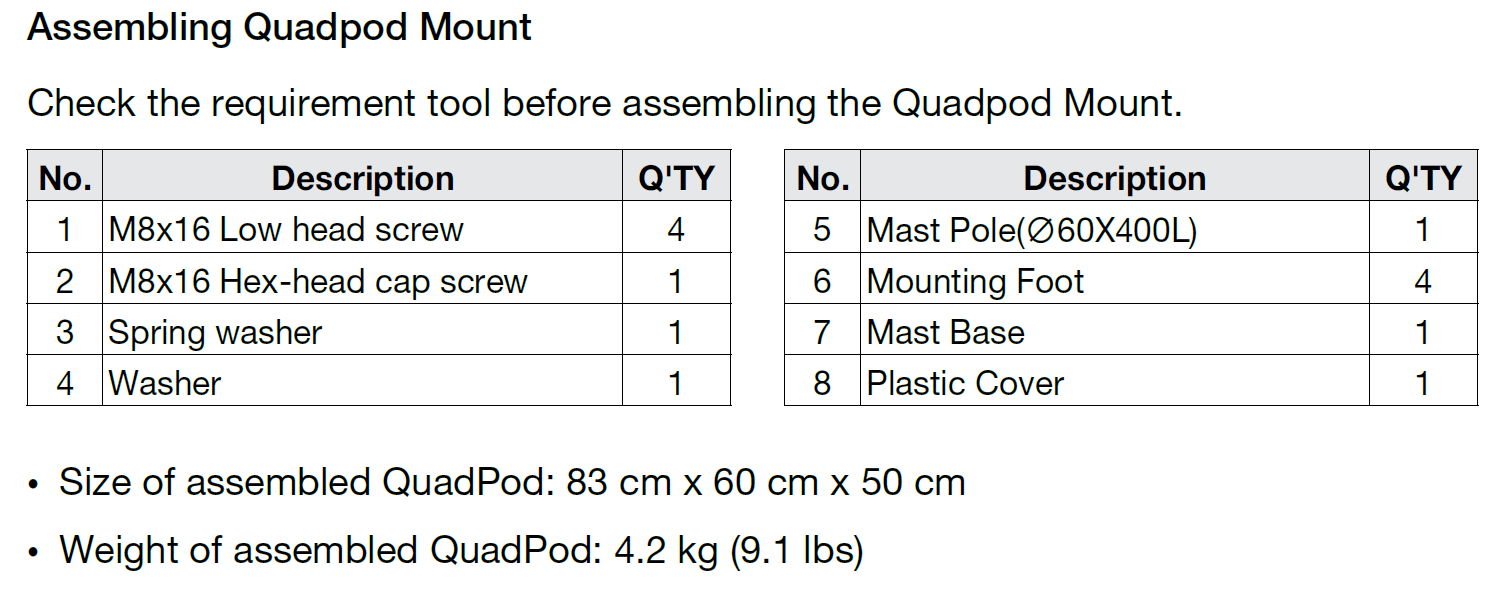

What’s in the Box – OW6011

• 4pcs M8 x 16mm Low head screw
• 1pce M8 x 16mm Hex-head cap screw
• 1pce Spring washer
• 1pce Washer
• 1pce Plastic Cover
• 1pce Mast Base
• 1pce Mast Pole(∅60X400L)
• 4pce Mounting Foot

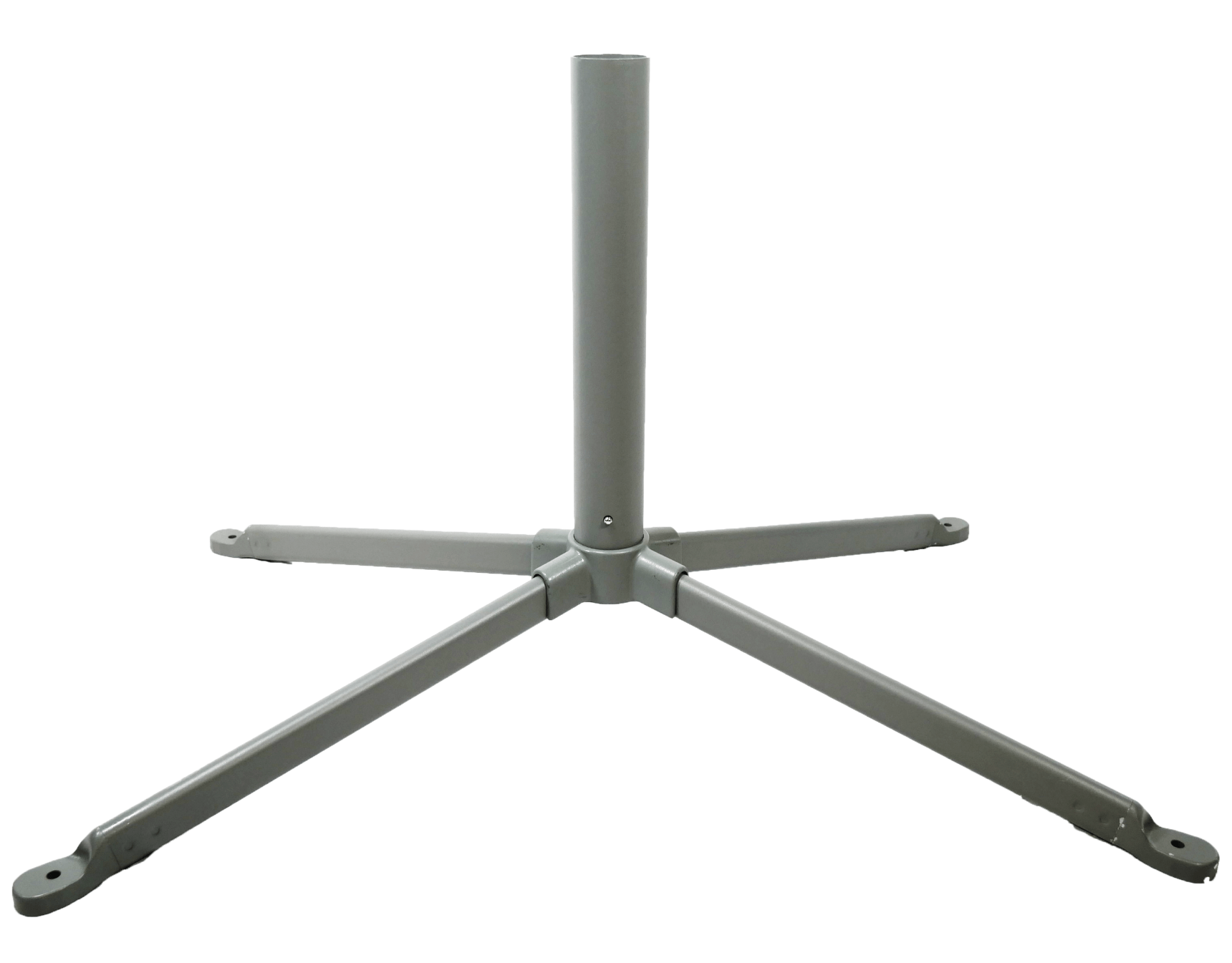

Note: Size of assembled QuadPod: 830 x 600 x 545mm, Weight: 4.2kg (9.2lb)
