PS-OW11FFG Intellian OneWeb OW11FL Enterprise Panel, ODU unit only (Land Fixed)

PS-OW11FFG Intellian OneWeb OW11FL Enterprise Panel, NO CNX, NO PSA, NO Cable (Land Fixed)

The OW11FL is Intellian’s leading Flat Panel Enterprise user terminal, designed to deliver high reliability and performance to enterprise customers.

Designed with increased G/T and EIRP over scan, the OW11FL is the only Flat Panel UT that can ensure SLA and CIR commitments are achieved, making it the ideal solution for enterprise, community broadband, and government applications.

OW11Fx Introduction

• The OW11Fx is an electronically scanned array (ESA) user terminal (UT) which can be operated in the Eutelsat OneWeb low earth orbit (LEO) satellite constellation.
• The Eutelsat OneWeb communications network is comprised of terrestrial gateways positioned around the globe communicating with Eutelsat
  OneWeb user terminals.
• A radio link to the satellites is established using the UT operating in the Ku-band.
• The Enterprise series consists of three product variants, the OW11FL (land fixed), the OW11FM (maritime), and the OW11FV (land mobile).
• The UTs provide network and internet access via the Eutelsat OneWeb network

OW11Fx Features

• Full-duplex active electronically scanned array.
• Field-of-view: ±70° Elevation from zenith, 360° azimuth.
• Receive nominal Gain-over-Temperature (G/T): 10.7 dB/K at boresight.
• Transmit Effective Isotropic Radiated Power (EIRP) supports Eutelsat OneWeb’s dual carrier requirement(+36.6 dBW).
• Dual GNSS receivers provide differential GNSS location to support automated true north calibration and highly accurate timing reference.
• The KIM (kinetic inertial module) provides tilt measurement to aid in installation, as well as roll, pitch and yaw data to support mobility. The KIM is comprised of two modules (IMX and GPX) which jointly function as the Inertial Navigation System. The KIM provides position, velocity and acceleration information to the User Terminal. – This feature aids in the installation of the OW11Fx series as well as supports mobility use cases for the OW11FM and OW11FV.
• Efficient enclosure profile for aesthetics as well as functional rain shedding radome.
• The CNX feeds power and data to the ODU over a single IFL coax cable and provides data interface to the user. Intellian offers multiple CNX variants to support the varying requirements across multiple use cases and applications.
• The intuitive, user-friendly Intellian Mobile Application streamlines installation, maintenance, and troubleshooting.

Paired with the CNX unit, the OW11FL delivers high reliability and performance for fixed land based markets including:

•  ENTERPRISE
• COMMUNITY BROADBAND
• CELLULAR BACKHAUL
• GOVERNMENT and MILITARY FACILITIES

WHATS IN THE BOX – PS-OW11FFG

Package 1 of 1 ODU Pack (1100 x 650 x 330mm)

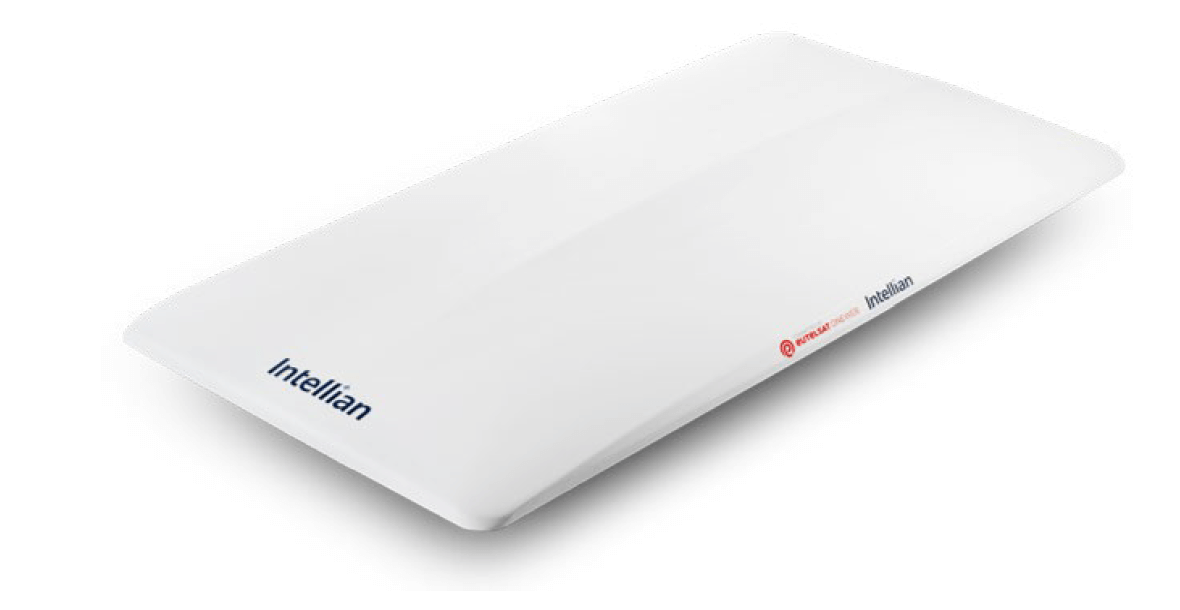

• OW11FL Antenna Unit
• 1pce Coax Cable (RG6), F-Type, for UT Power & Data, 5m(for test purposes only)
• Bolt Kit
• 1pce RF Hazard Sticker, Radiation Safety Distance Label
• QIG(Quick Installation Guide – OW11Fx Variant Specific

Pack# 2 of 2 – Mount and Grounding Pack (250 x 166 x 120mm)

• 1pce part# OW6017 Adjustable Mount Adapter (included with this Fixed-Land series only)
• 1pce part# BL1035 Flexible grounding braid (included with this Fixed-Land series only)
• NOTE# 1. A range of Recommended Intellian specialized Maritime mounts are available, but NOT included in this pack.
• NOTE# 2. Requires CNX, PSA and Cable, all are available, but NOT included in this pack(refer to buying guides below).

Optimized Performance

Utilizing Intellian’s innovative antenna design, the OW11FL delivers the maximum throughput allowed on the OneWeb network. Offering the highest link margin, performance is guaranteed even over scan and at the lowest elevation angles, ensuring we meet the highest demands of enterprise customers.

Customer Network Exchange

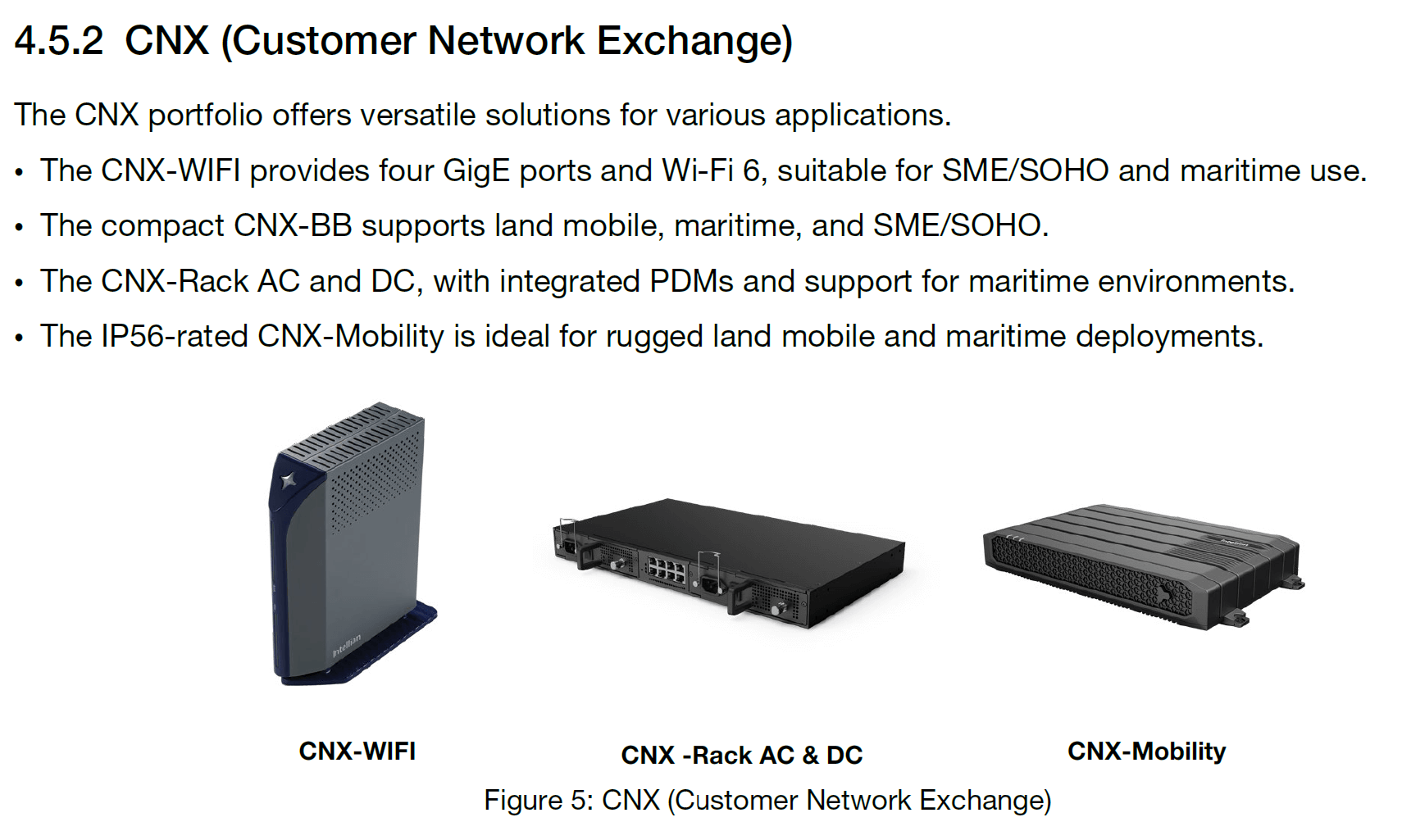

Intellian’s Customer Network Exchange (CNX) units are a critical component of any OneWeb user terminal installation, providing both the power and data connectivity to the Flat Panel user terminal, and the connectivity to customer equipment and networks. CNX variants are offered for specific deployment scenarios including Land Fixed, Maritime and Land Mobility.

Seamless Connectivity

The OW11FL features Intellian’s advanced tracking technology, facilitating continuous, reliable handovers even at the lowest elevation angles encountered in equatorial regions. Delivering the best performance at scan, the innovative flat panel technology facilitates seamless and undisrupted connectivity. Extreme Temperature Performance The OW11FL is designed to ensure dependable performance in even the most demanding environments, operating in extremely low temperatures down to -40 °C and up to +55 °C (-40 °F to 131 °F), delivering reliable broadband services for customers situated in the most remote locations.

Simplified Installation

The lightweight design and sleek form factor enables easy installation by a single person. Designed for use with standard off-the-shelf mounting solutions, the OW11FL can be deployed in a variety of locations to suit the application and environment. Installation is further simplified through use of combined power and data over a single coax cable connecting the indoor and outdoor units. The use of Intellian’s mobile app for site survey, automated configuration, and monitoring further reduces the time required to get online.

OW11Fx SPECIFICATIONS – Enterprise Panel Series

Antenna Panel (ODU/ADU)

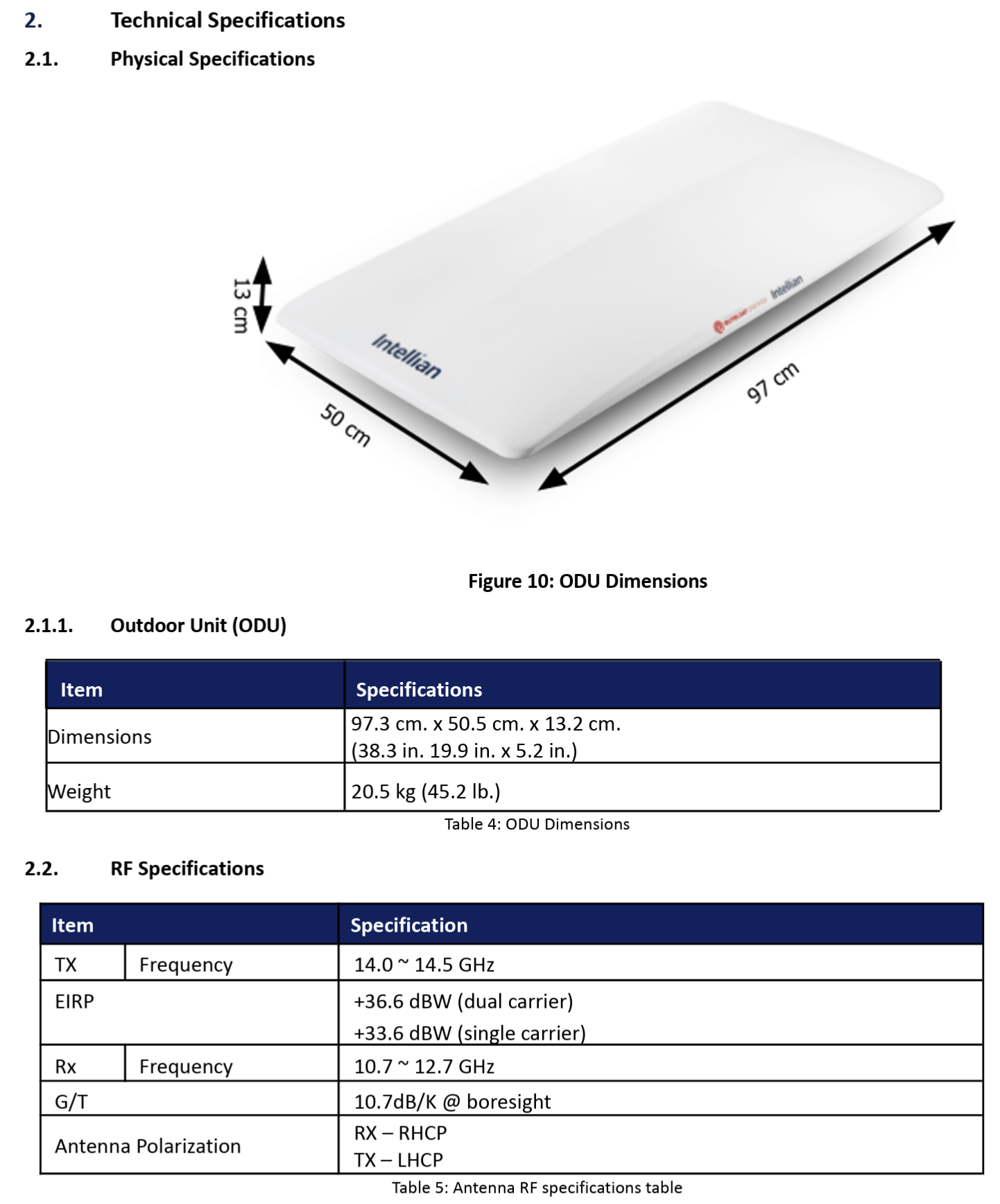

• Dimensions: 970 x 500 x 130mm (38 x19.7 x 5.0in)
• Weight: 20.48kg (45.15lb)
• Power: Max 380 W
• Operating temperature: -40°C to +55°C (-40°F to 131°F)
• G/T: 10.7 dB/K
• EIRP: + 33.6 dBW (single carrier) +36.6 dBW (dual carrier)
• Field of View: ± 70° from zenith 360° azimuth
• Ingress: IP66
• Interfaces: F-type port Ethernet Cable RJ45 port

CNX ORDERING GUIDE

• CNX-BB stand-alone, part# PP-T1A0 (requires, but does NOT include any PSA)
• CNX-BB Bundle, part# PP-T1A0-250A, Description: CNX-BB with 250W AC/DC PSA, Application: OW10HL, OW10HV and OW10HM
• CNX-BB Bndl, part# PP-T1A0-DC, Desc: CNX-BB with 480W DC-DC Converter PSA(No ACC), Application: OW10HL and 10HV
• CNX-WIFI series/application
• CNX-Wifi stand-alone, part# PP-T1A1 (requires, but does NOT include any PSA)
• CNX-Wifi Bundle, part# PP-T1A1-250A, Description: CNX-Wifi with 250W AC/DC PSA, Application: OWHL, OWHV, OWHM
• CNX-Wifi Bundle, part# PP-T1A1-450A, Description: CNX-Wifi with 450W AC/DC PSA, Application: OW11FL, OW11FL, OW11FM
• CNX Wifi Bndl, part# PP-T1A1-DC, Desc: CNX-Wifi with 480W  DC-DC Converter PSA(No ACC), Appn: OW10HL, 10HV, OW11FL, 11FV
• CNX-Wifi Bndl, part# PP-T1A1-DCA, Desc: CNX-Wifi with 560W DC-DC PSA(with ACC), Appn: OW10HL, 10HV, OW11FL, 11FV
• CNX-MOBILITY series/applications
• CNX-Mobility stand-alone, part# PP-T2D1 (Requires but does NOT include any PSA)
• CNX-Mobility Bundle, PP-T2D1-450A, Desc: CNX-Mobility with 450W AC/DC PSA, Appn: OW10HL, 10HV, 10HM and OW11FL, 11FV, 11FM
• CNX-Mobility Bundle, part# PP-T2D1-DC, Desc: CNX-Mobility with 480W DC-DC Converter PSA(No ACC), Appn: OW10HV and OW11FV
• CNX-Mobility, part# PP-T2D1-DCA, Desc: CNX-Mobility with 560W DC-DC PSA(with ACC), Appn: OW10HV and OW11FV
• CNX-RACK series/applications
• CNX-Rack-AC, part# OP-T2C0, Description: CNX-Rack-AC version, Application: OW10HL, 10HV, 10HM and OW11FL, 11FV, 11FM
• CNX-Rack-DC, part# OP-T2B0, Description: CNX-Rack-DC version, Application: OW10HL, 10HV, 10HM and OW11FL, 11FV, 11FM

CNX COMPATIBILITY GUIDE

• COMPACT PANEL APPLICATIONS
• OW10HL (Fixed Land), and OW 10HV (Land Mobile/Vehicle)
• CNX-BB w/ 250W AC/DC PSA, ORDER part# PP-T1A0-250A
• CNX-BB w/ 480W DC-DC Converter PSA, Order part# PP-T1A0-DC
• CNX-Wifi w/ 250W AC/DC PSA, ORDER part# PP-T1A1-250A
• CNX-Wifi w/ 480W DC-DC PSA w/o ACC Feature, ORDER part# PP-T1A1-DC
• CNX-Wifi w/ 560W DC-DC PSA w/ ACC Feature, ORDER part#  PP-T1A1-DCA
• CNX-Mobility w/ 450W AC/DC PSA, ORDER part# PP-T2D1-450A
• CNX-Mobility w/ 480W DC-DC PSA w/o ACC Feature, ORDER part# PP-T2D1-DC
• CNX-Mobility w/ 560W DC-DC PSA w/ ACC Feature, ORDER part#  PP-T2D1-DCA
• CNX-Rack-AC, ORDER part#  OP-T2C0
• CNX-Rack-DC, ORDER part# OP-T2B0
• OW10HM (Maritime)
• CNX-BB w/ 250W AC/DC PSA, ORDER part# PP-T1A0-250A
• CNX-Wifi w/ 250W AC/DC PSA, ORDER part# PP-T1A1-250A
• CNX-Mobility w/ 450W AC/DC PSA, ORDER part# PP-T2D1-450A
• CNX-Rack AC, ORDER part#  OP-T2C0
• CNX-Rack-DC, ORDER part#  OP-T2B0
• ENTERPRISE PANEL APPLICATIONS
• OW11HL (Fixed Land), and OW 11HV (Land Mobile/Vehicle)
• CNX-Wifi w/ 450W AC/DC PSA, ORDER part# PP-T1A1-450A
• CNX-Wifi w/ 480W DC/DC PSA w/o ACC Feature, ORDER part# PP-T1A1-DC
• CNX-Wifi w/ 560W DC/DC PSA w/ ACC Feature, ORDER part#  PP-T1A1-DCA
• CNX-Mobility w/ 450W AC/DC PSA, ORDER part# PP-T2D1-450A
• CNX-Mobility w/ 480W DC/DC PSA w/o ACC Feature, ORDER part# PP-T2D1-DC
• CNX-Mobility w/ 560W DC/DC PSA w/ ACC Feature, ORDER part#  PP-T2D1-DCA
• CNX-Rack-AC, ORDER part#  OP-T2C0
• CNX-Rack-DC, ORDER part# OP-T2B0
• OW11HM (Maritime)
• CNX-Wifi w/ 450W AC/DC PSA, ORDER part# PP-T1A1-450A
• CNX-Mobility w/ 450W AC/DC PSA, ORDER part# PP-T2D1-450A
• CNX-Rack-AC, ORDER part#  OP-T2C0
• CNX-Rack-DC, ORDER part#  OP-T2B0

SUPPORTED CABLES – INSTALLATION GUIDE

• Refer below for: OW10FM (Maritime), OW10HL (Fixed Land), OW10FV (Land-mobile/Vehicle)
• CNX-BB/WIFI/MOB: AC/DC, 110-240VAC to 56VDC, 250/450W, Length: 45m, Cable Type: RG-11, MANUF. Part# BELDEN 1525A
• CNX-BB/WIFI/MOB: AC/DC, 110-240VAC to 56VDC, 250/450W, Length: 45m, Cable Type: RG-11, MANUF. Part# Amphenol T11TSFx77-LTV
• CNX-BB/WIFI/MOB: AC/DC, 110-240VAC to 56VDC, 250/450W, Length: 75m, Cable Type: RG-6, MANUF. Part# BELDEN 1694A-2
• CNX-BB/WIFI/MOB: AC/DC, 110-240VAC to 56VDC, 250/450W, Length: 190m, Cable Type: RG-11, MANUF. Part# BELDEN 7731A & 7731RW
• CNX-BB/WIFI/MOB: AC/DC, 110-240VAC to 56VDC, 250/450W, Length: 140m, Cable Type: RG-11, MANUF. Part# BELDEN 9292
• CNX-MOB: DC-DC Converter 12-2VDC to 48VDC, 480W/560W, Length: 30m, Cable Type: RG-6, MANUF. Part# BELDEN 1694A-2
• CNX-MOB: DC-DC Converter 12-2VDC to 48VDC, 480W/560W, Length: 75m, Cable Type: RG-11, MANUF. Part# BELDEN 7731A & 7731RW
• CNX-MOB: DC-DC Converter 12-2VDC to 48VDC, 480W/560W, Length: 55m, Cable Type: RG-11, MANUF. Part# BELDEN 9292
• CNX-MOB: DC-DC Converter 12-2VDC to 48VDC, 480W/560W, Length: 100m, Cable Type: LMR-400, MANUF. Part# LMR-400-FR*
• CNX-RACK-AC and DC – Embedded PSA, 56VDC output, Length: 190m, Cable Type: RG-11, MANUF. Part# BELDEN 7731A & 7731RW
• CNX-RACK-AC and DC – Embedded PSA, 56VDC output, Length: 140m, Cable Type: RG-11, MANUF. Part# BELDEN 9292
• CNX-RACK-AC and DC – Embedded PSA, 56VDC output, Length: 45m, Cable Type: RG-11, MANUF. Part# BELDEN 1525A
• CNX-RACK-AC and DC – Embedded PSA, 56VDC output, Length: 45m, Cable Type: RG-11, MANUF. Part# Amphenol T11TSFx77-LTV
• CNX-RACK-AC and DC – Embedded PSA, 56VDC output, Length: 250m, Cable Type: LMR400, MANUF. Part# LMR-400FR-Bulk
• CNX-RACK-AC and DC – Embedded PSA, 56VDC output, Length: 400m, Cable: LMR600, Connector: (TMS) Amphenol EZ-600-NMH-X
• Refer below for: OW11FM (Maritime), OW11HL (Fixed Land), OW11FV (Land-mobile/Vehicle)
• CNX-WIFI/MOBILITY: AC/DC, 110-240VAC to 56VDC, 450W, Length: 30m, Cable Type: RG-6, MANUF. Part# BELDEN 1694A-2
• CNX-WIFI/MOBILITY: AC/DC, 110-240VAC to 56VDC, 450W, Length: 60m, Cable Type: RG-11, MANUF. Part# BELDEN 9292
• CNX-WIFI/MOBILITY: AC/DC, 110-240VAC to 56VDC, 450W, Length: 85m, Cable Type: RG-11, MANUF. Part# BELDEN 7731A&7731RW
• CNX-MOB: DC-DC Converter 12-2VDC to 48VDC, 480W/560W, Length: 30m, Cable Type: RG-11, MANUF. Part# BELDEN 7731A & 7731RW
• CNX-MOB: DC-DC Converter 12-2VDC to 48VDC, 480W/560W, Length: 40m, Cable Type: LMR-400, MANUF. Part# LMR-400-FR*
• CNX-RACK-AC and DC – Embedded PSA, 56VDC output, Length: 60m, Cable Type: RG-11, MANUF. Part# BELDEN 9292
• CNX-RACK-AC and DC- Embedded PSA, 56VDC output, , Length: 85m, Cable Type: RG-11, MANUF. Part# BELDEN 7731A&7731RW
• CNX-RACK-AC and DC – Embedded PSA, 56VDC output, Length: 110m, Cable Type: LMR400, MANUF. Part# LMR-400-FR*
• CNX-RACK-AC and DC – Embedded PSA, 56VDC output, Length: 260m, Cable Type: LMR600, Connector: (TMS) Amphenol EZ-600-NMH-X
• EXTENDED LENGTH CABLES:
• Available upon request, once the Panel and CNX configuration are decided, please contact our office for calculations and recommendations.
