V5-60K-U2X3N Intellian V60-KA-2-XCVR, VSAT, Ka-band, 4.5W, 65cm Antenna, (Maritime)

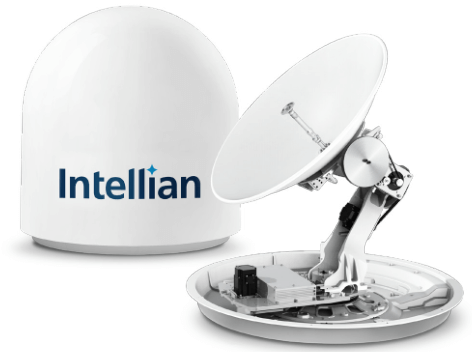

65cm New Ka-band Maritime VSAT Antenna System
The v60Ka 2 is a lightweight Ka-band stabilized VSAT maritime antenna system with a single cable solution to reduce installation time and costs.
The v60Ka 2 is ready for service on Telenor’s high throughput Thor-7 network and ensures outstanding performance and reliability for smaller vessels navigating even the most challenging ocean conditions.
The v60Ka 2 is easily upgradeable to a high power BUC or transceiver system enabling higher throughput.
Most Flexible 60cm Class Ka-band Terminal

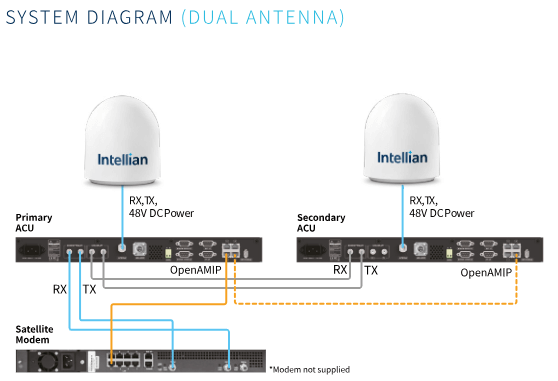

The Embedded Dual Antenna Mediator fully supports dual antenna operation without additional complexity and external components.
Antenna Management Platform
Intellian’s integrated AptusNX platform, provides a responsive web user interface to manage and control the antenna system.
Most Flexible 60cm Class Ka-band Terminal
The Embedded Dual Antenna Mediator fully supports dual antenna operation without additional complexity and external components.
$37,400.00 Inc. GST
Compact dual-band, dual-pol solution
- Uses Ka-band for high volume/traffic and Ku-band for coverage gaps:
– electronically seamless switch between services to maximize bandwidth and network access
– Uninterrupted by bad weather using Ku-band - Compact form factor with single center feed design and Ka-band transceiver integration for simpler RF design
- Electronically switch function for Ku-Ka band switching and co & cross polarization switching with electrical RF switch.
Future proof: multi-orbit tracking
- Support on any commercial Ku-band and Ka-band operation provided predominantly by GEO satellites
- Dual antenna installation support for NGSO make-before-break HOs
- Supports wide Ka-band feed (2.5 GHz bandwidth) covering the MEO constellation
- GEO & MEO tracking system (program tracking and conical scanning)
Brand
Intellian
V5-60K-U2X3N v60Ka 2 XCVR 65cm Maritime Ka-Band VSAT Antenna System, Including: –
- V5-1133, NJRC 4.5W Ka-Band XCVR – VP-T84G2 19” Rack Mountable ACU –
- Telenor Type Approved
