VE-60-E1YN Intellian V60E, X-pol only, VSAT, Ku-band, 6W, 65cm Antenna, (Maritime)
$31,900.00 Inc. GST

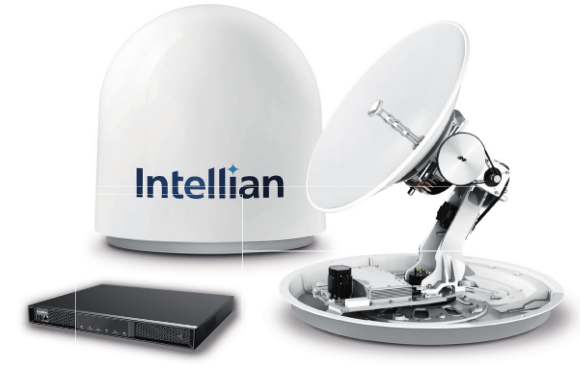

65cm Ku-band Maritime VSAT Antenna System
The v60E is a lightweight and affordable Ku-band stabilized VSAT maritime antenna system designed for entry into new market sectors and to increase the competitive edge in the 65cm class.
The v60E’s RF design delivers higher levels of performance, with a standard 6W BUC with 8W option, and Cross-pol only configuration, at significantly reduced pricing.
It also provides customers with lower budget access to the quality and reliability of an Intellian product with improvement in link budget margin.
Compact and Lightweight
- Ideal for smaller vessels which have limited space for a larger system
- Compact package reduces freight and deployment costs
- Overall lower total cost of ownership
Compact dual-band, dual-pol solution
- Uses Ka-band for high volume/traffic and Ku-band for coverage gaps:
– electronically seamless switch between services to maximize bandwidth and network access
– Uninterrupted by bad weather using Ku-band - Compact form factor with single center feed design and Ka-band transceiver integration for simpler RF design
- Electronically switch function for Ku-Ka band switching and co & cross polarization switching with electrical RF switch.
Future proof: multi-orbit tracking
- Support on any commercial Ku-band and Ka-band operation provided predominantly by GEO satellites
- Dual antenna installation support for NGSO make-before-break HOs
- Supports wide Ka-band feed (2.5 GHz bandwidth) covering the MEO constellation
- GEO & MEO tracking system (program tracking and conical scanning)
Brand
Intellian
VE-60-E1YN v60E (X-pol only) incl. 6W 65cm Maritime Ku-Band VSAT Antenna System, including : –
- VE-1012, NJRC 6W Ku-band BUC (NJT8376UN) –
- VE-1013, Intellian Universal VSAT LNB –
- VP-TA4L, 19” Rack Mountable ACU –
- X-pol Only System
