VL-45-E1YN Intellian V45C, X-pol only, VSAT, Ku-band, 6W, 45cm Antenna, (Maritime)
VL-45-E1YN Intellian V45C, X-pol only, VSAT, Ku-band, 6W, 45cm Antenna, (Maritime) - Image 2
VL-45-E1YN Intellian V45C, X-pol only, VSAT, Ku-band, 6W, 45cm Antenna, (Maritime) - Image 3

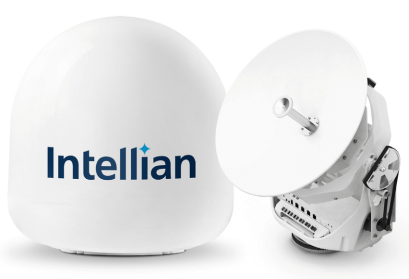

VL-45-E1YN Intellian V45C, X-pol only, VSAT, Ku-band, 6W, 45cm Antenna, (Maritime)

SKU: VL-45-E1YN

$19,800.00 Inc. GST

v45C-Datasheet.pdf

45cm Compact & Light Ku-band VSAT antenna

The v45C is a compact and light-weight 45cm and 23kg maritime Ku-Band system. The v45C VSAT system is designed to deliver enhanced connectivity and user experience to smaller boats and vessels, including fishing, leisure, commercial and government. The antenna offers exceptional value and performance no matter the communication needs or space constraints onboard.

Compact and Light VSAT Terminal

45cm and 23kg maritime Ku-band system provides enhanced connectivity and user experience to smaller boats and vessels.

Quick and Easy Installation

Single coaxial cable is connected externally, so no requirement to access the inside of the radome.

Antenna Management Platform

Intellian’s integrated AptusNX platform, provides a responsive web user interface to manage and control the antenna system.

Unparalleled User Experience

The advanced design ensures Optimal performance on both HTS and wide beam Ku-band satellites.

OPTIMIZED PERFORMANCE

Customers have the flexibility of connecting their v45C antenna via their Ku-band service provider of choice, knowing that the RF design is optimized to deliver best-in-class
performance and efficiency.

The advanced design ensures optimal performance on both HTS and wide beam Ku-band
satellites, delivering an unparalleled user experience for a product of this form factor.

Compact dual-band, dual-pol solution

  • Uses Ka-band for high volume/traffic and Ku-band for coverage gaps:
    – electronically seamless switch between services to maximize bandwidth and network access
    – Uninterrupted by bad weather using Ku-band
  • Compact form factor with single center feed design and Ka-band transceiver integration for simpler RF design
  • Electronically switch function for Ku-Ka band switching and co & cross polarization switching with electrical RF switch.

Future proof: multi-orbit tracking

  • Support on any commercial Ku-band and Ka-band operation provided predominantly by GEO satellites
  • Dual antenna installation support for NGSO make-before-break HOs
  • Supports wide Ka-band feed (2.5 GHz bandwidth) covering the MEO constellation
  • GEO & MEO tracking system (program tracking and conical scanning)

Brand

Intellian

VL-45-E1YN v45C (X-pol only) incl. 6W 45cm Maritime Ku-Band VSAT Antenna System, Including : –

VE-1012, NJRC 6W Ku-band BUC (NJT8376UN) –

VE-1013, Intellian Universal VSAT LNB – VP-TA4L, 19” Rack Mountable ACU –

X-pol Only System
