VF200BM-1 Thales VesseLINK 200 Certus System, (Maritime)

VF200BM-1 Thales VesseLINK 200 System, Maritime, Basic

Thales VesseLINK provides global satellite coverage for maritime communications.

With uninterrupted coverage from pole to pole, it is the solution to depend on for essential communications.

Key Features

• Certus 200 Services (176 kpbs Up/Down)
• Robust, light-weight communications for at sea operations
• 100% global satellite coverage and low latency for critical data and voice communications
• Dependable maritime satcoms, from pole-to-pole
• Easily integrates VSAT with built-in preferred routing

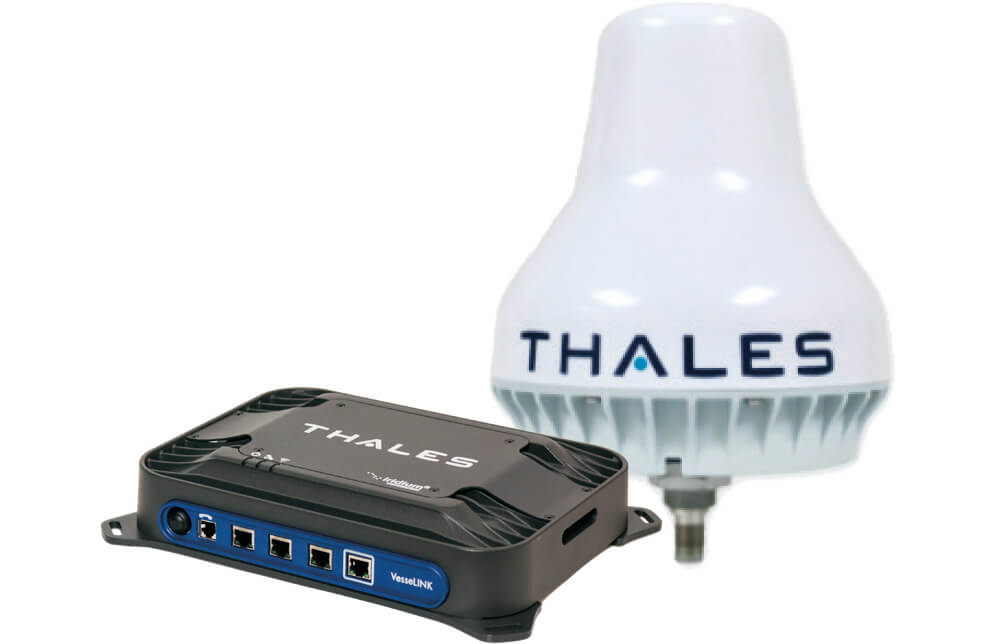

This part# VF200BM-1 *BASIC-SYSTEM Includes:

• 1600952-1 ANTENNA, CERTUS 200 VesseLINK (VF200BM ONLY)
• 4102947-521 VesseLINK TERMINAL
• 85728-001 ANTENNA 2.4GHz DIPOLE 2dBi REV POL SMA 50 OHM
• *Basic System does NOT include any power cable, mounting plate, antenna, cable and any other accessories.

OPTIONAL ACCESSORIES LIST – VesseLINK 200, and 700(aka 350) series – Available to Order

• 1100796-501 – 19in Rack Mount/Shelf Kit
• 1100818-501 – Thales SureLINK IP Handset Kit (all 200/700 VLINK and MLINK)
• 1100789-501 – Kit, Below Deck Unit (BDU), Mounting Hardware (all 200/700 VLINK and MLINK)
• 1100791-501 – Kit, Antenna Maritime Mounting Hardware (Certus 700 only)
• 3900011-1 – Mounting Template, BDU (Certus 700 only)
• 3900014-1  – Mounting Template, Antenna (Certus 700 only)
• 84670-001 – Power Supply, AC/DC 12V – 160W(Regional Wall/Mains AC Outlet Power Cables aka “kettle-cords” NOT included)
• 54024-001 – Cable AC Power(“kettle-cord”) with USA Plug Type B IEC 60320-C13, 6 ft.(requires part#84670-001)
• 854025-001 – Cable AC Power(“kettle-cord”) with Euro Plug Type E IEC 320-C14, 6 ft.(requires part#84670-001)
• 854026-001 – Cable AC Power(“kettle-cord”) with AUS/NZ Plug Type 1 IEC 320-C14, 6 ft.(requires part#84670-001)
• 854027-001 – Cable AC Power(“kettle-cord”) with UK Plug Type G IEC 320-C13, 6 ft.(requires part#84670-001)
• 855023-082 – Cable, Coaxial 25m LMR300-FR Fire Retardant spec.(all 200/700 VLINK and MLINK)
• 855024-003 Cable, DC Power Harness, 3ft (all 200/700 VLINK and MLINK)
• 855026-010 – Cable, RJ-45 Ethernet, 10 ft. (all 200/700 VLINK and MLINK)
• 855033-164 – Cable, Coaxial 50m LMR400-FR Fire Retardant spec. (all 200/700 VLINK/MLINK)
• 85728-001 – Wi-Fi Antenna, 2.4 GHz Dipole 2 dBi (all 200/700 VLINK and MLINK)

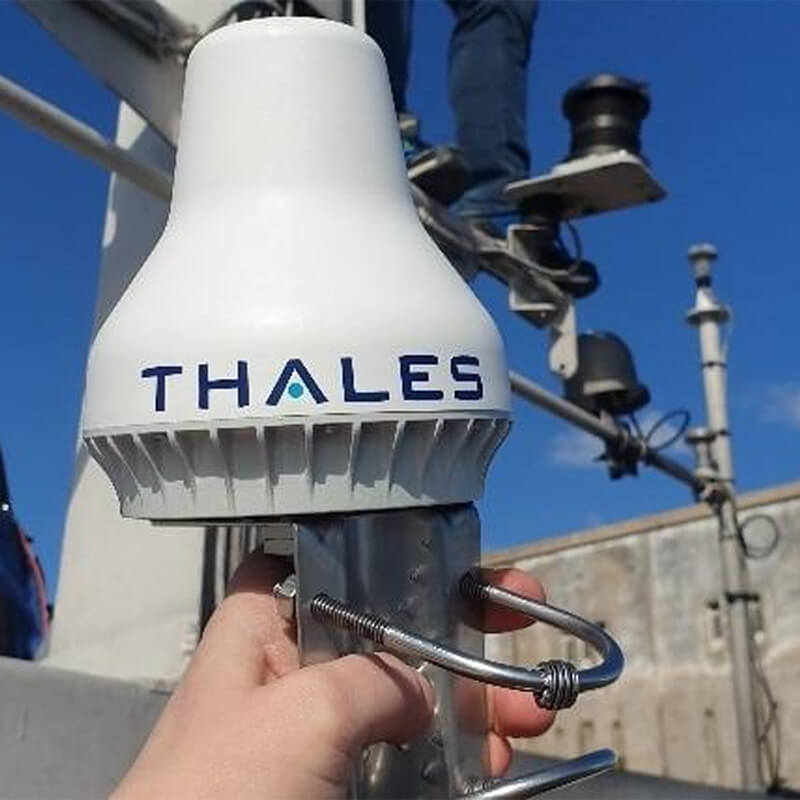

• 1100855-501 – Antenna Basic L-Bracket Pole Mount Kit (Certus 200 VLINK only)
• 1100855-502 – Antenna Premium Pole Top Mount Kit (Certus 200 VLINK only)
• 1100855-503 – Antenna Premium L-Bracket Pole Mount Kit (Certus 200 VLINK and MLINK)
• 85736-001 – Antenna Mounting Plate, Small (Certus 700 VLINK only)
• 85739-001 – Antenna Mounting Plate, Large (Certus 700 VLINK only)

TERMINAL SPECIFICATIONS

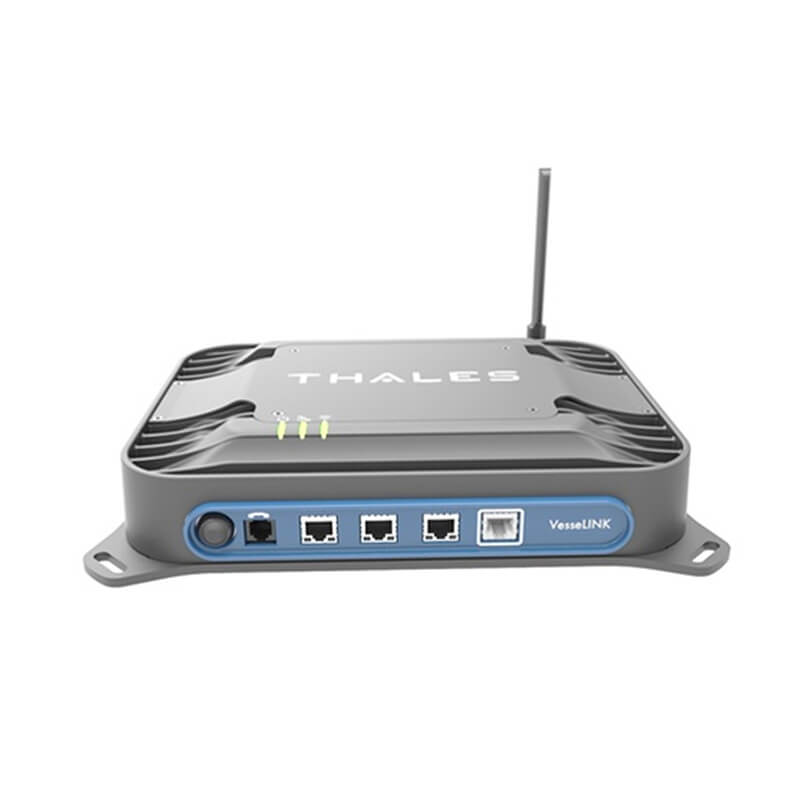

• Below deck unit specifications
• Height: 2.3in(5.8cm)
• Width: 12.0in(30.5 cm)
• Depth: 9.0in(22.9 cm)
• Weight: 7.5lbs(3.4kg)
• Power Options: #1: 10–32 VDC and #2: AC/DC supply with 12 VDC (65 watt nominal/120 watt maximum)
• IP Rating: IP31

Front Connectors:

• RJ-45 LAN (3)
• Class 2 PoE RJ-45 WAN (1)
• for cellular, VSAT and other IP connections, RJ-14 POTS(2 independent phone lines)

Rear Connectors:

• DC Power Input (10–32V) MIL-STD-1275D,
• DC Power Input(+12V Regulated),
• GPIO (RS-232, +12V out, Emergency, Radio Gateway, Discrete I/O),
• TNC — RF connection to Antenna,
• Wi-Fi Reverse SMA,
• SIM card slot
• Mechanical Vibration and Shock: MIL-STD-810G w/Change 1, Test Method 514.7, Category 4

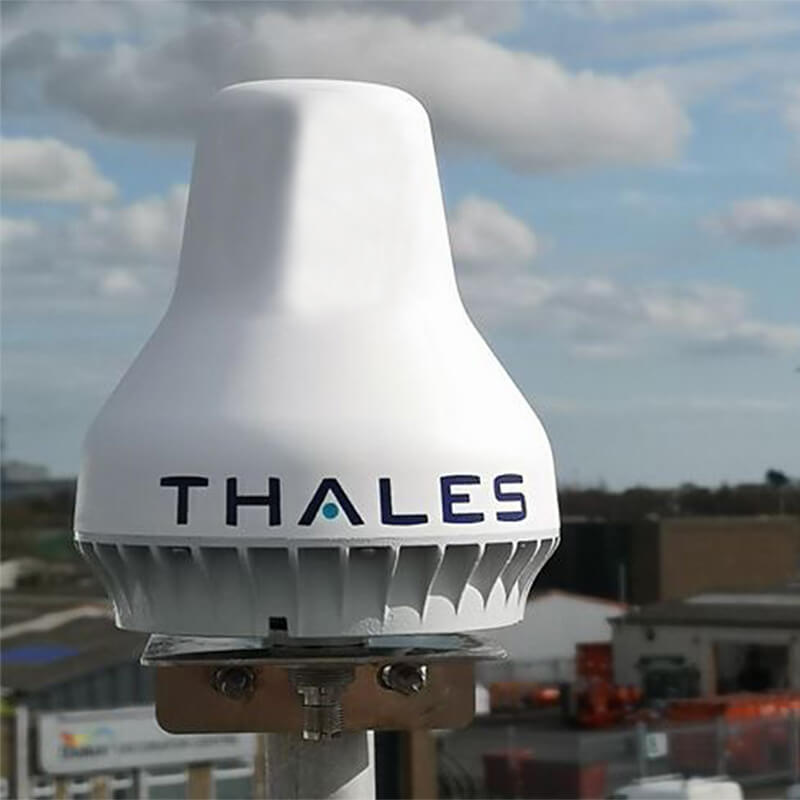

Low gain omnidirectional antenna, with no moving parts to enable the fastest upload and download speeds to cover any maritime
communications need from safety services, tracking and location services, out-of-band management to operational reporting and
data transfers.

Antenna Specifications

• Size: 5in dia. x 6.7inH (12.5cm dia. x 17cmH)
• Weight: <0.7kg(1.5lbs)
• Power: Directly powered by the terminal at 24VDC
• IP Rating: IP67
• Operating Temperature: -40 to +55° C
• Mechanical Vibration and Shock: MIL-STD-810G w/Change 1, Test Method 514.7, Category 4

Suitable for ships or fleets of any size, VesseLINK easily integrates with your existing equipment to fully digitize your vessel.

VesseLINK comes with an intuitive, user-friendly interface and can be quickly integrated into existing vessels or new fleets.

It also includes built-in upgradeability to future-proof your investment and ensures peak speed and performance.

VesseLINK operates using Iridium Certus broadband services over a network of 66 satellites that cover 100% of the globe, including deep oceans and poles.

The solution utilizes this robust network service to provide highly reliable, mobile and essential voice, text and web communications for captain and crew
