VF350BM Thales VesseLink 700 Certus System, (Maritime)

VF350BM Thales VesseLINK 700 System, Standard

NOTE: This product is now called VesseLINK 700, it was formerly known as VesseLINK 350

Thales VesseLINK utilizing Iridium Certus gives your critical marine operation global communications coverage.

It is the communications solution to depend on for essential communications whenever and wherever you are at sea. Whether you operate a large fleet or a single vessel, this commercialized, military-grade solution is designed to meet your unique challenges through a simple, adaptable and robust design.

This Full System pack, part# VF350BM Includes:

• 1100789-501 Kit, Below Deck Unit (BDU), Mounting Hardware
• 1100791-501 Kit, Antenna Maritime Mounting Hardware
• 1600901-1 Above Deck Unit (Antenna), Certus 350
• 3402131-1 Quick Start Guide (QSG) VesseLINK™
• 3900011-1 Mounting Template, BDU
• 3900014-1 Mounting Template, Antenna

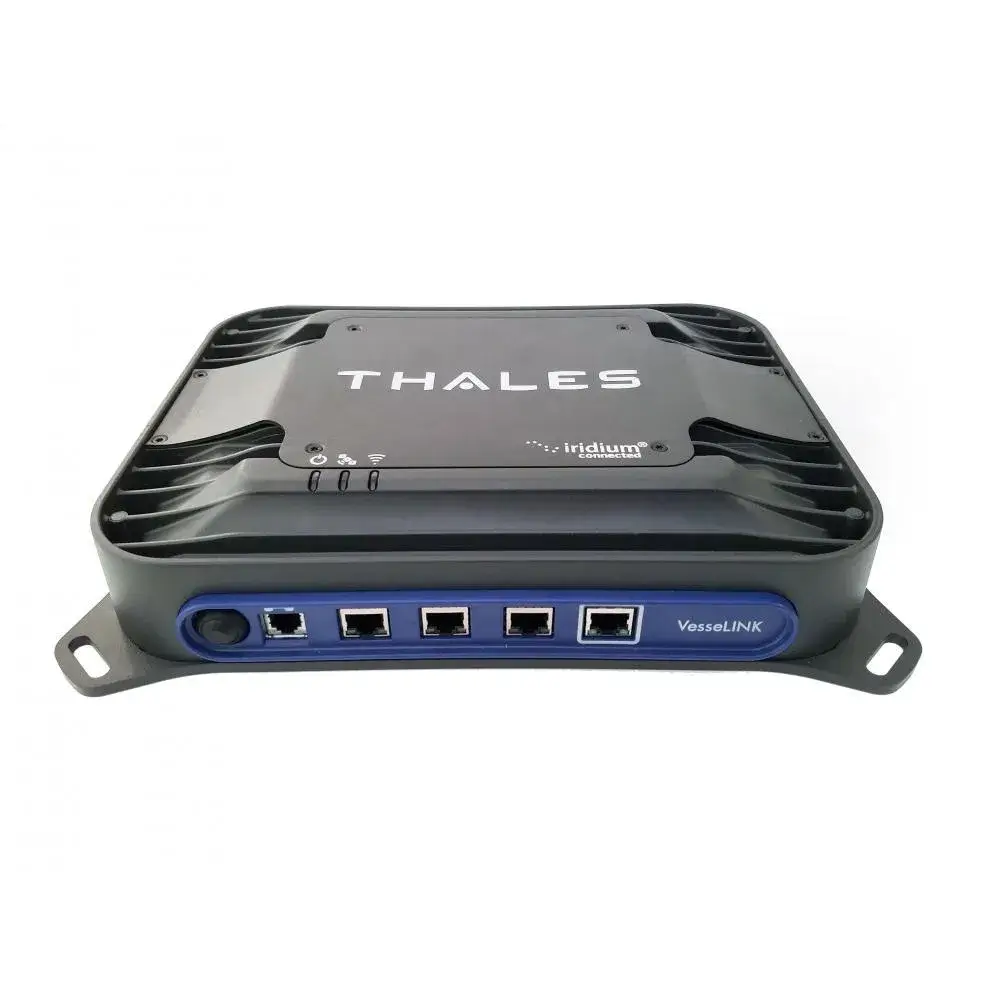

• 4102947-511 BDU, (Terminal) VesseLINK™
• 84670-001 Power Supply, AC/DC 12V – 160W
• 854024-001 Cable AC Power with USA Plug 6 ft.
• 854025-001 Cable AC Power EURO Plug 6 ft.
• 855023-082 Cable, Coaxial 25m LMR300 FR
• 855026-010 Cable, RJ-45 Ethernet, 10 ft.
• 85728-001 Wi-Fi Antenna, 2.4 GHz Dipole 2 dBi

OPTIONAL ACCESSORIES LIST – VesseLINK 200, and 700(aka 350) series – Available to Order

• 1100796-501 – 19in Rack Mount/Shelf Kit
• 1100818-501 – Thales SureLINK IP Handset Kit (all 200/700 VLINK and MLINK)
• 1100789-501 – Kit, Below Deck Unit (BDU), Mounting Hardware (all 200/700 VLINK and MLINK)
• 1100791-501 – Kit, Antenna Maritime Mounting Hardware (Certus 700 only)
• 3900011-1 – Mounting Template, BDU (Certus 700 only)
• 3900014-1  – Mounting Template, Antenna (Certus 700 only)
• 84670-001 – Power Supply, AC/DC 12V – 160W(Regional Wall/Mains AC Outlet Power Cables aka “kettle-cords” NOT included)
• 54024-001 – Cable AC Power(“kettle-cord”) with USA Plug Type B IEC 60320-C13, 6 ft.(requires part#84670-001)
• 854025-001 – Cable AC Power(“kettle-cord”) with Euro Plug Type E IEC 320-C14, 6 ft.(requires part#84670-001)
• 854026-001 – Cable AC Power(“kettle-cord”) with AUS/NZ Plug Type 1 IEC 320-C14, 6 ft.(requires part#84670-001)
• 854027-001 – Cable AC Power(“kettle-cord”) with UK Plug Type G IEC 320-C13, 6 ft.(requires part#84670-001)
• 855023-082 – Cable, Coaxial 25m LMR300-FR Fire Retardant spec.(all 200/700 VLINK and MLINK)
• 855024-003 Cable, DC Power Harness, 3ft (all 200/700 VLINK and MLINK)
• 855026-010 – Cable, RJ-45 Ethernet, 10 ft. (all 200/700 VLINK and MLINK)
• 855033-164 – Cable, Coaxial 50m LMR400-FR Fire Retardant spec. (all 200/700 VLINK/MLINK)
• 85728-001 – Wi-Fi Antenna, 2.4 GHz Dipole 2 dBi (all 200/700 VLINK and MLINK)
• 1100855-501 – Antenna Basic L-Bracket Pole Mount Kit (Certus 200 VLINK only)
• 1100855-502 – Antenna Premium Pole Top Mount Kit (Certus 200 VLINK only)
• 1100855-503 – Antenna Premium L-Bracket Pole Mount Kit (Certus 200 VLINK and MLINK)
• 85736-001 – Antenna Mounting Plate, Small (Certus 700 VLINK only)
• 85739-001 – Antenna Mounting Plate, Large (Certus 700 VLINK only)

• Easy to use interface, all functionality available at a distance
• Ruggedized Android tethered handset
• IP67 rated single cable Antenna
• Rack or hull mounted installation
• 4G LTE ready, softphone application for iOS and Android
• Embedded 802.1 1b/g Wi-Fi access point
• Multiple user capability
• Application enabled functionality for Android and iOS

VesseLINK on Iridium operates using Iridium Certus broadband services over a network of 66 satellites that cover 100% of the globe, including deep oceans and the poles. The solution utilizes this robust network service to provide highly reliable, mobile and essential voice, text and web communications.

• Reliable satellite communications for at sea operations
• Providing 100% global coverage you can depend on
• Enabling essential communications for critical operations and enhanced safety features
• Simple, adaptable and robust to meet the unique challenges of maritime environments
• Delivering data and voice communications with low latency

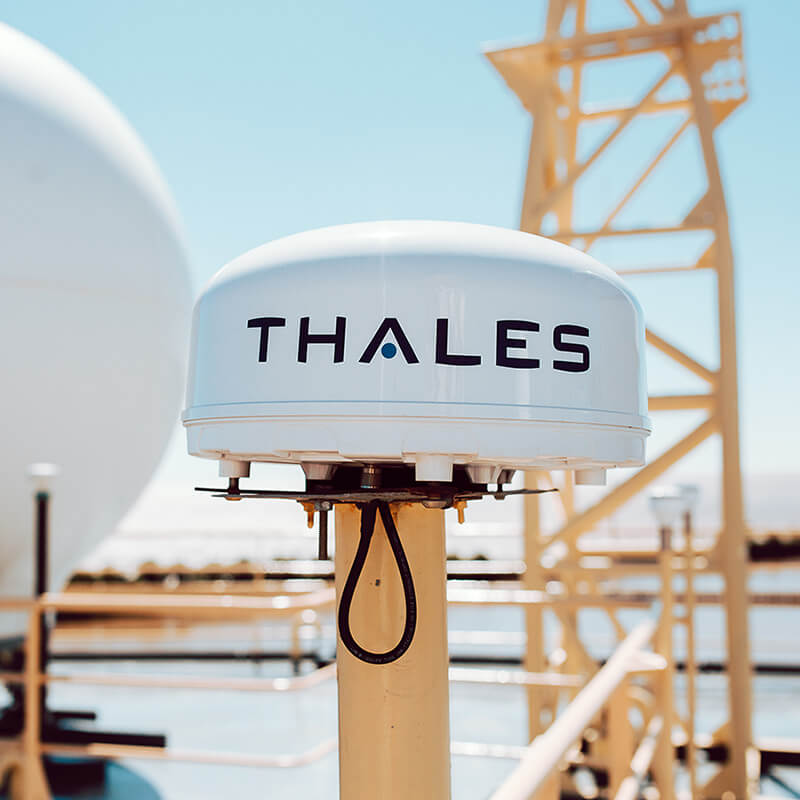

Antenna Features

High-gain, electronic phased array antenna to enable the fastest upload and download speeds to cover any land communications need from safety services to operational reporting and logging

Thales VesseLINK provides global satellite coverage for maritime communications.

With uninterrupted coverage from pole to pole, it is the solution to depend on for essential communications.

Suitable for ships or fleets of any size, VesseLINK easily integrates with your existing equipment to fully digitize your vessel.

VesseLINK operates using Iridium Certus broadband services over a network of 66 satellites that cover 100% of the globe, including deep oceans and poles.

The solution utilizes this robust network service to provide highly reliable, mobile and essential voice, text and web communications for captain and crew.

VesseLINK comes with an intuitive, user-friendly interface and can be quickly integrated into existing vessels or new fleets.

It also includes built-in upgradeability to future-proof your investment and ensures peak speed and performance.

ALTERNATIVE ORDERING GUIDE – BASE KIT SYSTEM part# VF350BM-1 VesseLINK 700 (formerly 350) Includes:

This part# VF350BM-1 VesseLINK 700 *Base Kit, Includes:

• 1600901-1 Above Deck Unit / Antenna, Certus 350
• 3402131-1 Quick Start Guide (QSG) VesseLINK™
• 3900011-1 Mounting Template, BDU
• 3900014-1 Mounting Template, Antenna
• 4102947-511 BDU VesseLINK™
• 85728-001 Wi-Fi Antenna, 2.4 GHz Dipole 2 dBi
• NOTE: *Base Kit does NOT include power cable, mounting plate, antenna cable and other accessories
