ASE-9575P-BAGDOCK ASE Iridium 9575 BagDOCK Docking Station, Soft Case Portable, PTT Enabled
ASE-9575P-BAGDOCK Requires, but does NOT include:
- any Iridium 9575 series SatPhone and Iridium AC/DC or DC-DC Vehicle Charger.
$2,005.30 Inc. GST

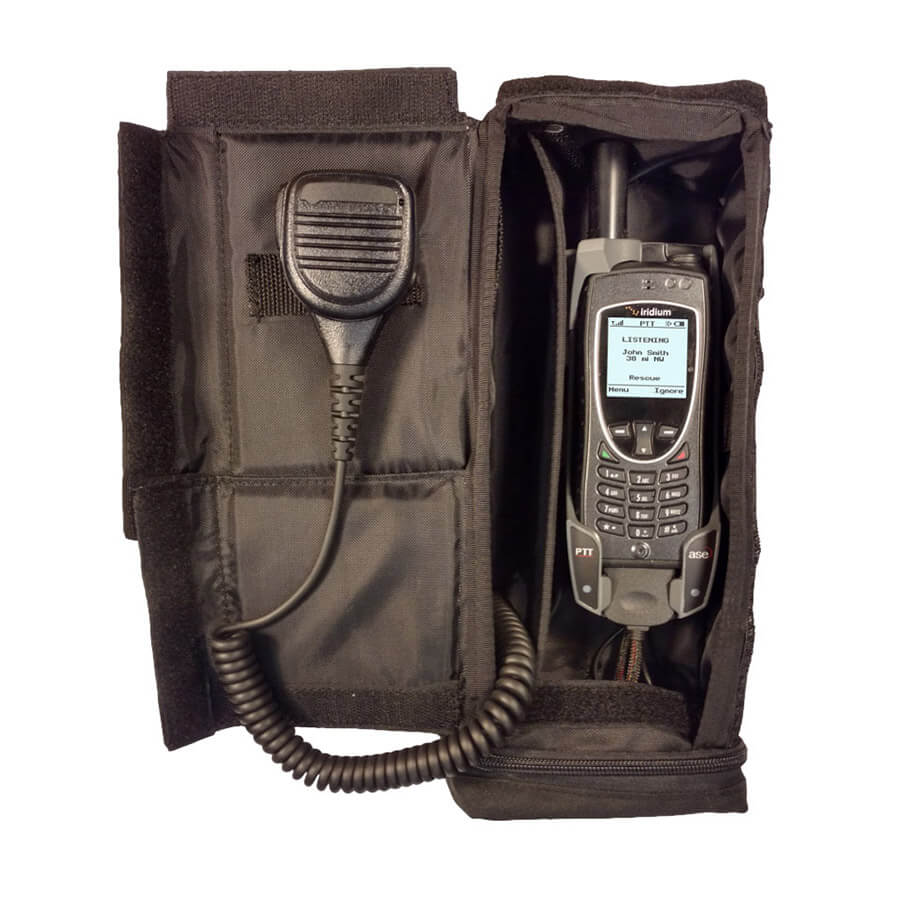

ASE-9575P-BAGDOCK ASE Iridium 9575 BagDOCK Docking Station, Soft Case Portable, PTT Enabled
This PREMIUM Integrated satellite docking station is purpose-built for remote or lone workers in the field and for rapid deployment by first responder teams during natural and man-made disasters.
It provides a compact package for storing all the Satphone for fast and easy deployment at a moment’s notice.

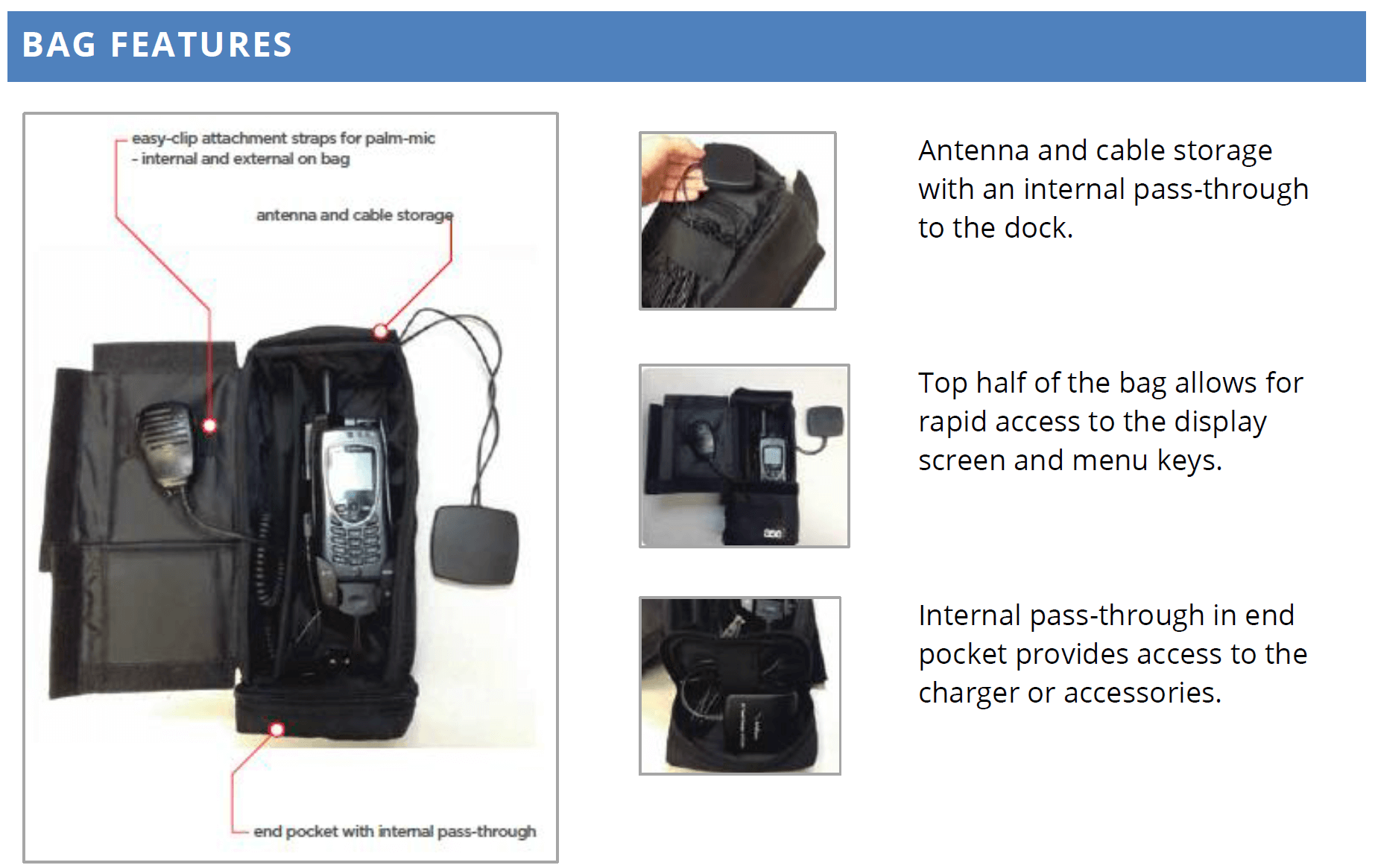

Rugged, Durable, & Accessible
The Bag Dock has a rugged canvas bag with easy to use Velcro flaps to access custom/bespoke areas of the bag such as the antenna, cabling, etc.
The Bag Dock is also padded to provide impact and dust/dirt protection for both the Iridium Extreme Handset, as well as the Docking Station and Palm Mic.
ASE-9575P BagDOCK Pack Includes:
- part# ASE-9575P-VEH Iridium 9575P PTT Cradle Unit
- part# ASE-MNTE2 Palm Speaker/Mic and Mounting Bracket
- part# ASE-DMA3 Iridium/GPS Dual Mode Antenna with fixed 3m cables
- Integrated Back-up Battery/UPS(uninterrupted power supply)
- Integrated Heavy Duty Soft Bag Carry Case
- NOTE: Requires, but DOES NOT include the SatPhone and AC/DC or DC-DC vehicle charger.
Features
- Protective All-in-One Bag-Compact
- Integrated Battery for Extended Operation
- Fast Deployment
- Extends Use of the Iridium 9575/975PTT by up to 12-19 Hours
- Magnetic Dual Mode (Iridium + GPS) Antenna
- Docking Station (Cradle) for the Iridium 9575 and 9575PTT Phone/Handset
- Easy Charging
- Provides Enhanced Fist/Palm Microphone and Speaker
- Single solution for the Iridium 9575 and the 9575 PTT Phones
- Increases Robustness of the Push-to-Talk (PTT) Network
- Enhances Audio of the Microphone and Speaker of the 9575/9575PTT SatPhone
- Deployment made Easy-All in One
- Fast Deployment
- Connect to Vehicle DC Power or AC/DC Charger
The BagDock enhances the phone by providing a convenient connection port that uses the Iridium AC or cigar/cigarette charger and improving the audio by shipping with a palm microphone speaker.

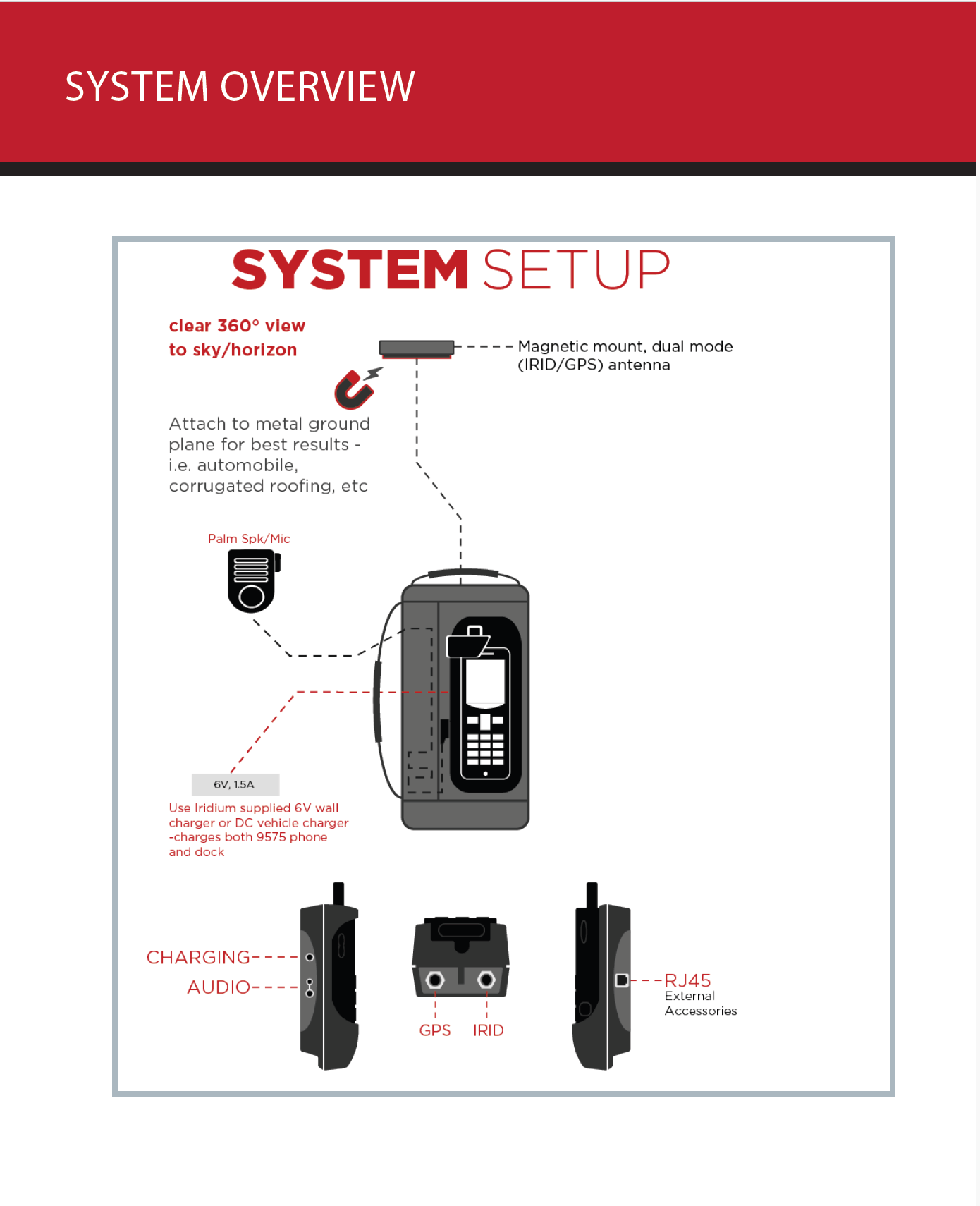

Basic Overview
- Integrated Back-up Battery powered phone and dock
- External power plug so you can charge the phone and dock while placed on a shelf or in a vehicle
- LED charging indicator
- SAT/GPS Antenna with 10ft cable stored in the lid
- Dock and Palm Speaker Mic mounted on a hard-frame
- Anodized red metal work
Supports all Iridium 9575 and 9575PTT series Satellite Telephones(not included in this bundle pack)
Technical Specifications
- Voltage: 6VDC(uses part# ACTC1801 Iridium Mains AC/DC or part# AUTE1801 Vehicle/Auto Car Charger)
- Power: 12 Watts
- Connections: Iridium SMA-F; GPS SMA-F
- Operating temp: -10 to +55 C
- Dimensions: 33 x 15 x 11.5cm(13 x 6.0 x 4.5in)
- Weight: 1.6kg(3.5lb)
- Shipping weight: 2.7kg(6.0lb)
- Shipping dimensions: 41 x 36 x 20cm(16 x 14 x 8in)
