ASE-9575P-BOXDOCK ASE Iridium 9575 BoxDOCK Docking Station, Hard Case Portable, PTT Enabled
ASE-9575P-BOXDOCK Requires, but does NOT include:
- any Iridium 9575 series SatPhone and Iridium AC/DC or DC-DC Vehicle Charger.
$2,741.20 Inc. GST
ASE-9575P-BOXDOCK ASE Iridium 9575 BoxDOCK Docking Station, Hard Case Portable, PTT Enabled
This PREMIUM Integrated satellite docking station is purpose-built for remote or lone workers in the field and for rapid deployment by first responder teams during natural and man-made disasters.
It provides a compact package for storing all the accessories for fast and easy deployment at a moment’s notice.

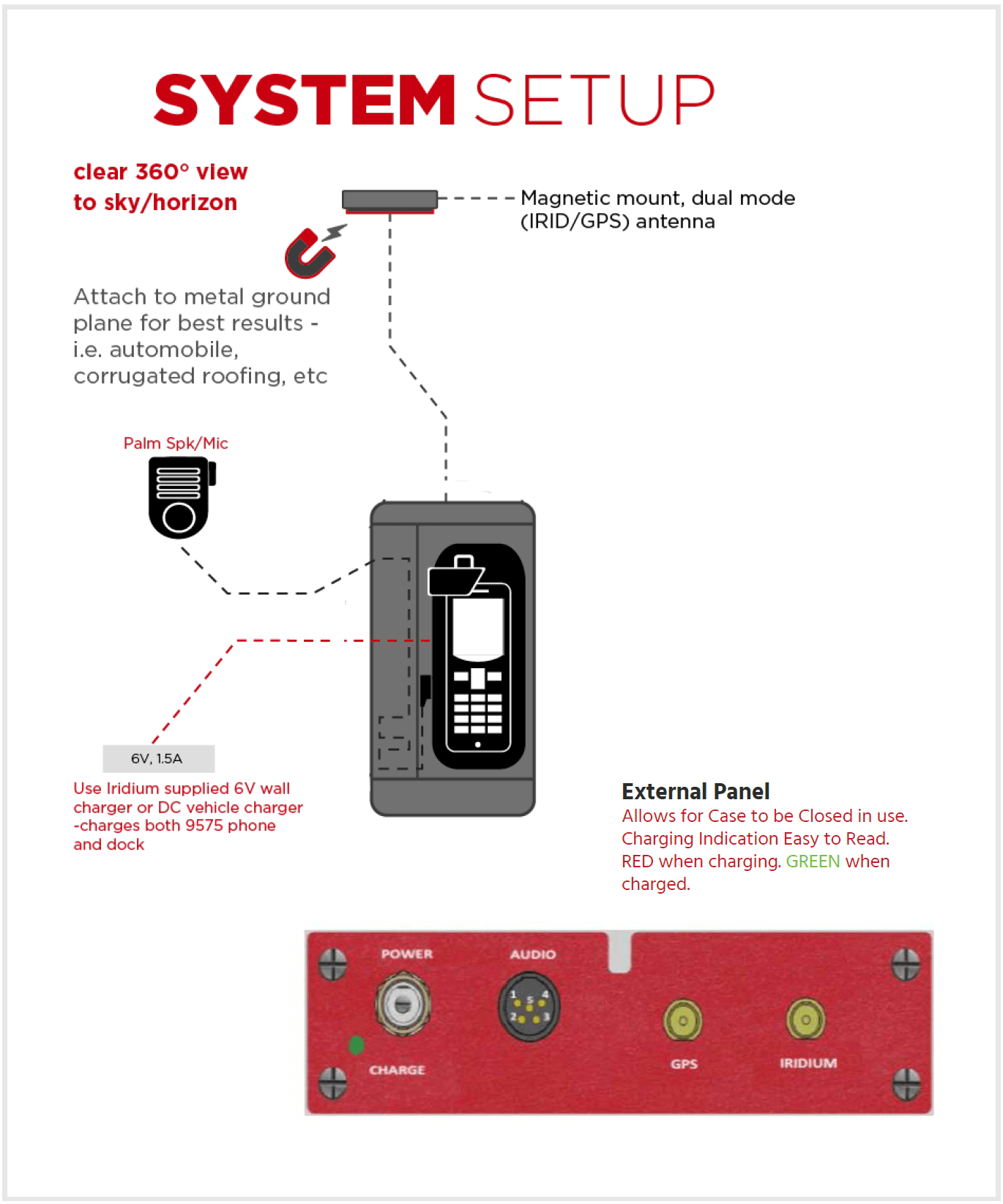

The charging and audio panel allow the BoxDOCK to be used with the top closed but also lets you know when the system is fully charged for quick deployment.
Basic Overview
- XLR5 interface to the auxiliary spkr/mic port
- External RF connectors for Iridium and GPS
- Battery powered phone and dock with external power plug so you can charge the phone and dock while placed on a shelf
- LED charging indicator
- Antenna with 10ft cable stored in the lid
- Dock and Palm Speaker Mic mounted on a hard-frame
- Anodized red metal work
Supports all Iridium 9575 series Satellite Telephones(not included in this bundle pack)

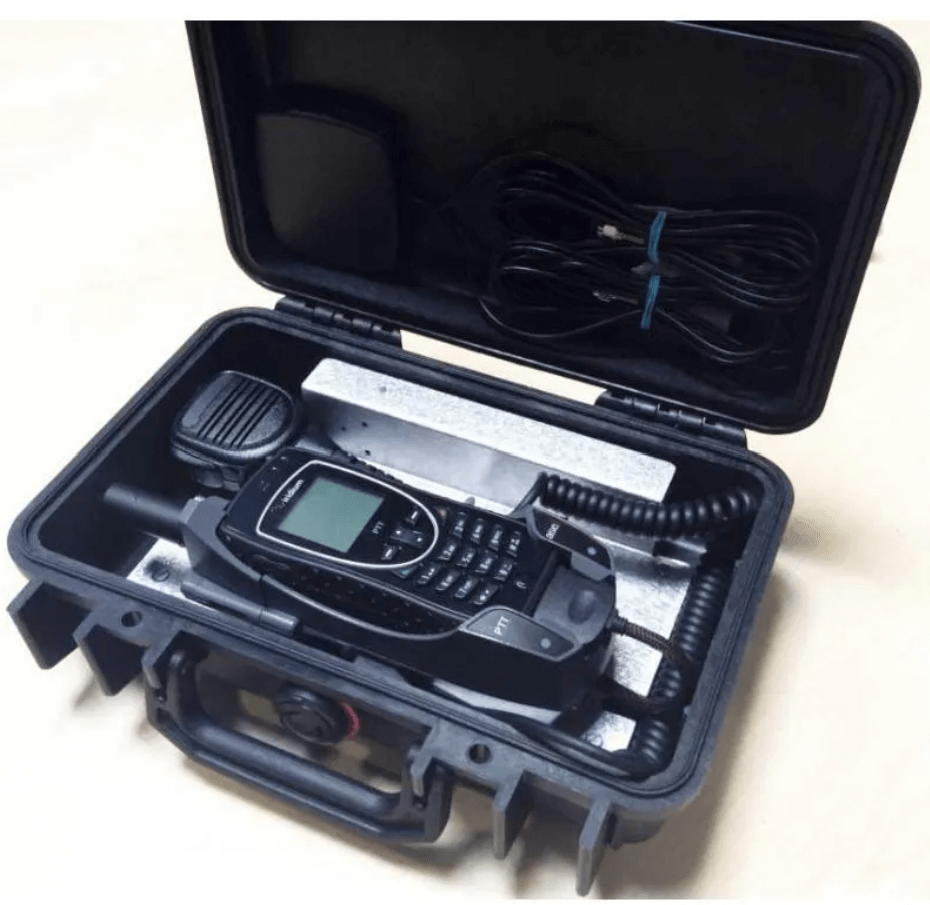

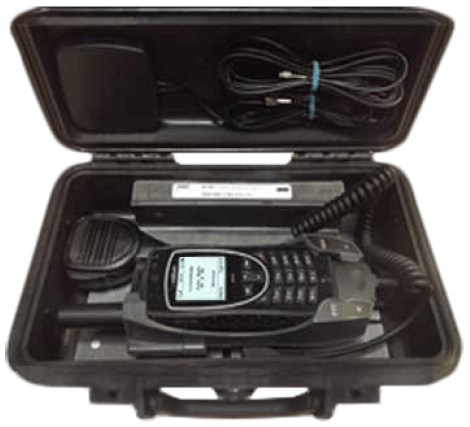

ASE-9575P-BoxDOCK Pack Includes:
- part# ASE-9575P-VEH Iridium 9575P PTT Cradle Unit
- part# ASE-MNTE2 Palm Speaker/Mic and Mounting Bracket
- part# ASE-DMA3 Iridium/GPS Dual Mode Antenna with fixed 3m cables
- DC Power Cord
- Integrated Back-up Battery/UPS(uninterrupted power supply)
- Integrated Hard Case, water/dust proof
- NOTE: Requires, but DOES NOT include the SatPhone
Features
- Protective All-in-One Bag-Compact
- Integrated Battery for Extended Operation
- Fast Deployment
- Extends Use of the Iridium 9575/975PTT by up to 12-19 Hours
- Magnetic Dual Mode (Iridium + GPS) Antenna
- Docking Station (Cradle) for the Iridium 9575 and 9575PTT Phone/Handset
- Easy Charging
- Provides Enhanced Fist/Palm Microphone and Speaker
- Single solution for the Iridium 9575 and the 9575 PTT Phones
- Increases Robustness of the Push-to-Talk (PTT) Network
- Enhances Audio of the Microphone and Speaker of the 9575/9575PTT SatPhone
- Deployment made Easy-All in One
- Fast Deployment
- Connect to Vehicle DC Power or AC/DC Charger
- Auxiliary Audio Connector for Vehicle Integration
The BoxDock enhances the phone by providing a convenient connection port that uses the Iridium AC or cigar/cigarette charger and improving the audio by shipping with a palm microphone speaker.

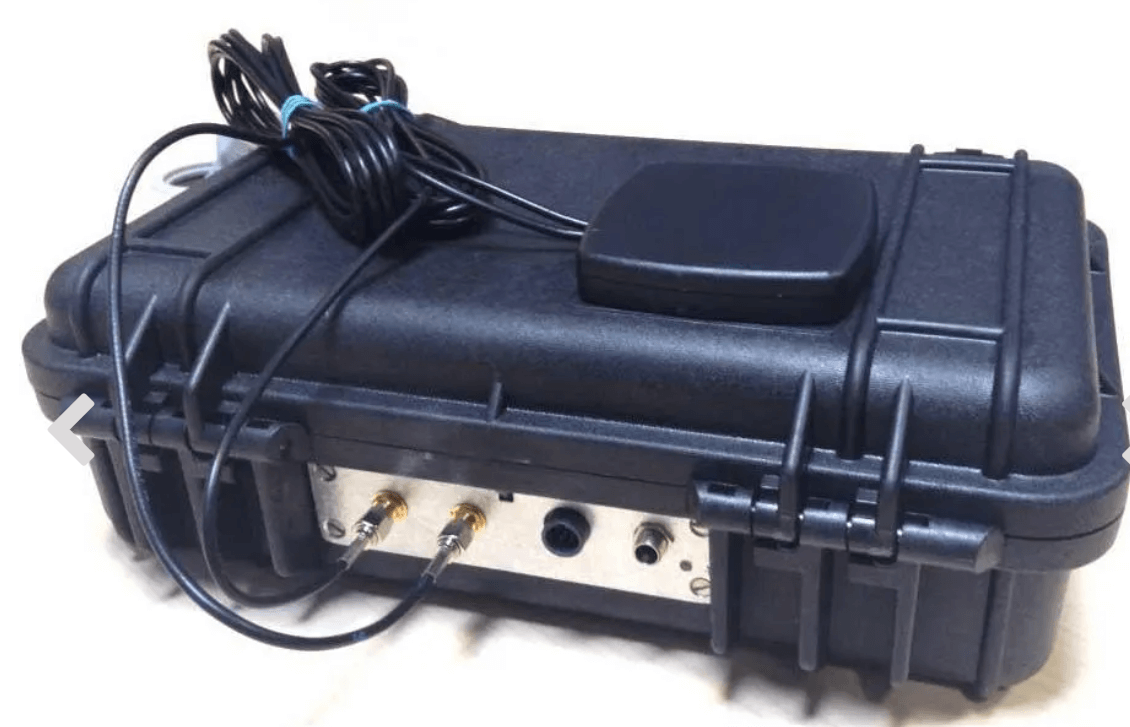

The BoxDock has a rugged “Peli-like” case providing impact and dust/dirt protection for the Iridium 9575 phone/handset, satellite docking station, and palm microphone speaker.
Technical Specifications
- Voltage: 10VDC to 32VDC
- Power: 12 Watts
- Connections: Iridium SMA-F; GPS SMA-F
- Operating temp: -10 to 55 C
- Dimensions: 11.6 x 8.3 x 3.8 in
- Weight: 4 lbs
- Shipping weight: 7 lbs
- Shipping dimensions: 14 x 10 x 6 in
